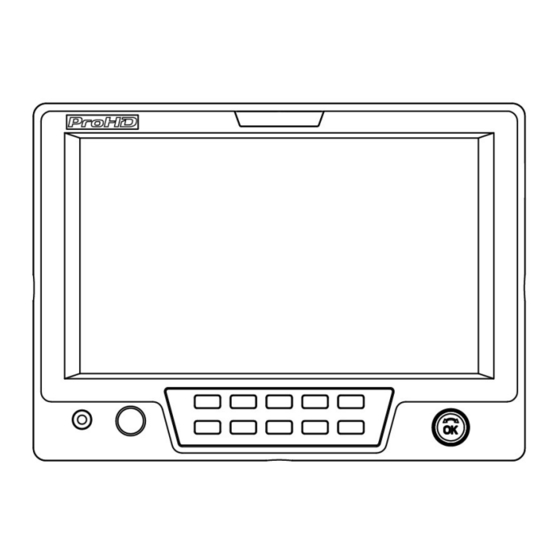

- Page 1 Model: DT-X71HP 7” Camera-top LCD Monitor User Manual Ver: C Please read this User Manual throughout before using.
-
Page 2: Preface
Preface 1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks are protected and other relative trademarks in this user manual are the property of their respective owners. -
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents
Contents Preface ..............................2 Maintenance ............................3 Contents ..............................4 Packing list ............................... 4 Operation Instructions ..........................5 ·Front Panel ............................. 5 ·OSD .............................. 6 ·Back Panel ............................. 8 Main Menu ............................... 9 Sub-Menu .............................. 10 Specification ............................16 Dimensions ............................17 Trouble-shooting ............................ -
Page 5: Operation Instructions
Operation Instructions ·Front Panel ⑴ PHONE: 3.5mm headphone socket, for SDI/HDMI embedded audio and analog audio monitoring. ⑵ POWER: Power on/off ⑶ Buttons SDI: Press to switch the input signal to SDI HDMI: Press to switch the input signal to HDMI CVBS: Press to switch the input signal to Composite video F1～F5: User definable function keys. -
Page 6: Osd
·OSD ⑴. Time code (SDI) Under SDI input, it can display Time code. If no Time code information is detected, it will be displayed as “TC: UNLOCKED”. ⑵. UMD Set up the UMD under “UMD” submenu. ⑶. AFD (SDI) User can set function keys F1～F5 or GPI pins as “AFD” to turn on or off this function. If no relevant information is detected, it will be displayed as “AFD: UNLOCKED”. - Page 7 Introduction of audio and video functions 2-ch embedded audio meters Under SDI/ HDMI/ CVBS, it displays 2 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB. ...
-
Page 8: Back Panel
·Back Panel ⑴ TALLY Light: Red, Green and Yellow 3-color TALLY indicator ⑵ DC 12V IN: Connect with the provided DC12V 4-pin XLR power adapter, and support 6.5-17V wide voltage Input (Pin 1: Negative, Pin 4: Positive) ⑶ SSL-JVC DV battery plate: Compatible with SSL-JVC50/75 batteries ⑷... -
Page 9: Main Menu
Main Menu DT-X71HP has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “OK” button, the main menu will pop-up from the left top of the screen. The selected main menu highlights in yellow. -
Page 10: Sub-Menu
Sub-Menu (the default values are marked with underline) 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3. - Page 11 4. Function key To define the F1～F5 function keys. *1 Function keys F1～F5 can be set as the down below functions: Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, Color temp., Time code, Zebra, Audio Bar, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max Backlight, Focus Assist 5.
- Page 12 6. UMD Support Source ID edit and display on screen Select “Source ID”, revolve “OK” to select the letters and press “OK" to input. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen. 7.
- Page 13 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 When “Audio Alarm” is set to “On”, if no embedded audio is detected, the audio bar will display “UNLOCKED”.
- Page 14 When set to “ON”, after turn on the monitor, the signal will be inspected and follow the sequence of “SDI→HDMI→CVBS”. *2 Logo When powered on, the screen will display ProHD logo. *3、*4 Update Driver/ Kernel Download latest firmware files in USB disk - root directory.
- Page 15 11. OSD 12. Key Inhibit If the “Key Inhibit” is “On”, there is no response when all the buttons except “OK” are pressed.
-
Page 16: Specification
Specification LCD Performance 7 inches Size Display area 153.6×90 mm Resolution 1024×600 Color 8 bit Aspect ratio 16:9 / 4:3 Brightness 400 cd/m Contrast 900:1 Viewing Angle Horizontal: 160° Vertical: 160° Input/output BNC×1 2K/3G/HD/SD-SDI input BNC×1 CVBS input HDMI-A ×1 HDMI 1.3 input Input RCA ×2... -
Page 17: Dimensions
Dimensions The main body (in mm) -
Page 18: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is The power is not turned on connected, and then press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact or Check and correctly connect the BNC not correctly connected or HDMI cable... - Page 19 This model is manufactured by SWIT Electronics Co., Ltd. and distributed, warranted and supported in Europe by JVCKENWOOD Deutschland GmbH To obtain service or for further information, please contact: JVCKENWOOD Deutschland GmbH · Konrad-Adenauer-Allee 1-11 · 61118 Bad Vilbel Telefon: +49 (0) 6101 / 4988 - 0 · Telefax: +49 (0) 6101 / 4988 - 50 www.jvcpro.eu...
