Edge-Core ECW7212-L Quick Start Manual

Q ui c k Sta r t G u id e
802.11a/ac/b/g/n Wireless Access Point
ECW7212-L

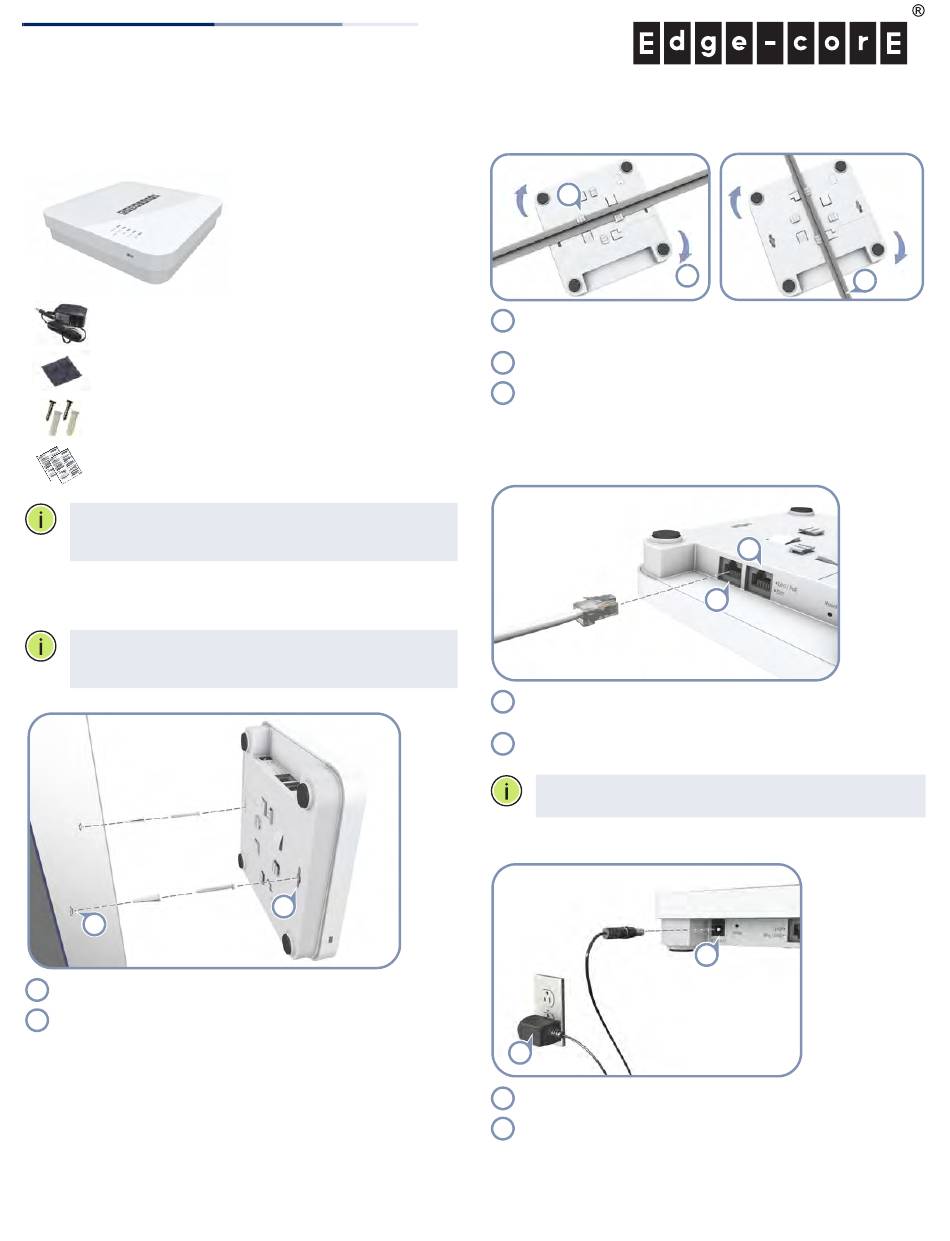

1. Unpack the AP and Check Contents

AC power adapter
Four adhesive rubber feet
Wall-mount kit—2 wall plugs and 2 screws
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the AP.

2. Mount the AP

The AP can be mounted on a desktop, wall, or ceiling T-bar.
Note:
The AP can be placed on a desktop using the
included rubber feet. When mounting the AP on a wall or
ceiling, do not attach the rubber feet.

a. Mounting on a Wall

1
1 Set two screws in the wall 140 mm (5.51 in.) apart.
2 Slide the AP's wall mounting slots down onto the screws so
that the unit is secure.
www.edge-core.com
ECW7212-L
802.11a/ac/b/g/n
Wireless Access Point
2

b. Mounting on a Ceiling T-Bar

1
1 Position the AP's ceiling-mount clip holders on either side of
the T-bar.
2 Turn the AP until the two clips lock it to the T-bar.
3 The AP mounting supports two different sizes of suspended
ceiling T-bars. The position illustrated above left is for 15 mm
bars. Use the position at a 90 degrees angle for 24.5 mm bars.

3. Connect LAN Cable

1 Connect Category 5e or better cable to the Eth0/PoE
1000BASE-T RJ-45 port.
2 (Optional) Connect a local LAN switch or computer to the
Eth1 1000BASE-T RJ-45 port.
Note: The Eth0/PoE port connection can also provide PoE
power to the unit.

3. (Optional) Connect AC Power Adapter

2
1 Connect the power adapter to the power socket on the AP.
2
Plug the power adapter into a nearby AC power source.
– 1 –
2
3
2
1
1
E012017-CS-R01
150200001485A
