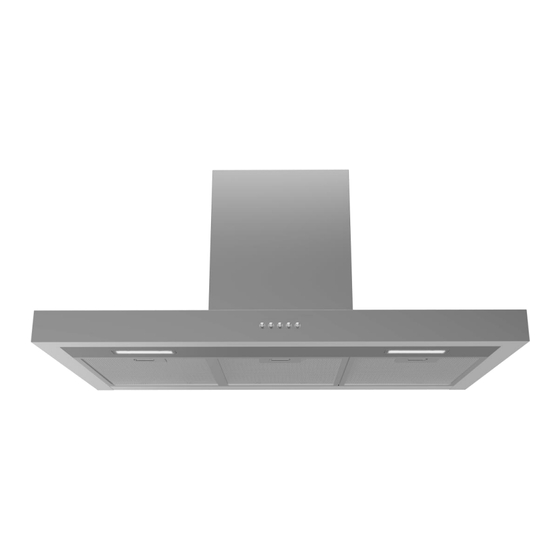

MODEL : MHT90SS
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your cooker hood,and keep it
carefully. If you follow the instructions, your cooker hood will provide you with many years
of good service.

Advertisement

Table of Contents
loading

Related Manuals for Midea MHT90SS

Summary of Contents for Midea MHT90SS

  • Page 1 Midea Cooker Hood Instruction MODEL : MHT90SS SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your cooker hood,and keep it carefully. If you follow the instructions, your cooker hood will provide you with many years of good service.

  • Page 2: Recommendations And Suggestions

    RECOMMENDATIONS AND SUGGESTIONS The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION  The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
  • Page 3 COMPONENTS Ref. Qty. Product Components Hood Body,complete with: Controls, Light, Blower,Filter. Lower Decorative Chimney Upper Decorative Chimney Flange ( optional ) Exhaust Pipe The Activated Charcoal filter ( optional ) Qty. Documentation Instruction Manual Ref. Qty. Optional Installation Components Screws 5 x 50 Wall Plugs Screws 4,2 x 9,5 Hood fixing bracket...
  • Page 4 ：mm Min. Min. 650mm 650mm Option Chimney 400+ 390 425-760 500+ 490 490 525-960...

  • Page 5: Installation

    INSTALLATION WALL DRILLING AND BRACKET FIXING Option Chimney 400X390 160-500 500X490 260-700 Vertical reference line As a first step, proceed with the following drawings: A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood ...

  • Page 6: Ducted Version Air Exhaust System

    Lower decorative chimney  Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. connect chimney fixing bracket and chimney with 2 screws 12. Hook the hood body Hook the hood body to the bracket 20. ...
  • Page 7 Speed adjustment. OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.

  • Page 8: Maintenance

    MAINTENANCE GREASE FILTERS CLEANING METAL SELF-SUPPORTING GREASE FILTERS The filters must be cleaned every 2 months of operation, or  more frequently for particularly heavy usage, and can be washed in a dishwasher. Remove the filters one by one pushing them towards the back ...

  • Page 9: Disposal Of Old Electrical Appliances

    Dismantle LED linght module Remove the grease filter and carefully remove the 2 screws from the front plate (a cross  headed screwdriver will be needed to remove the screws). Disconnect the terminal of LED light.  Press LED light on the back of the front plate, take the LED light out. ...

  • Page 10: Troubleshooting

    TROUBLE SHOOTING Fault Cause Solution The blades are blocked. Check the blades. The capacitor is damaged. Replace capacitor. Light on, but The motor is damaged. Replace motor. motor does not The internal wiring of motor is cut off/ work Replace motor. disconnected.
