APPLIANCE DIMENSIONS - AGA TC3

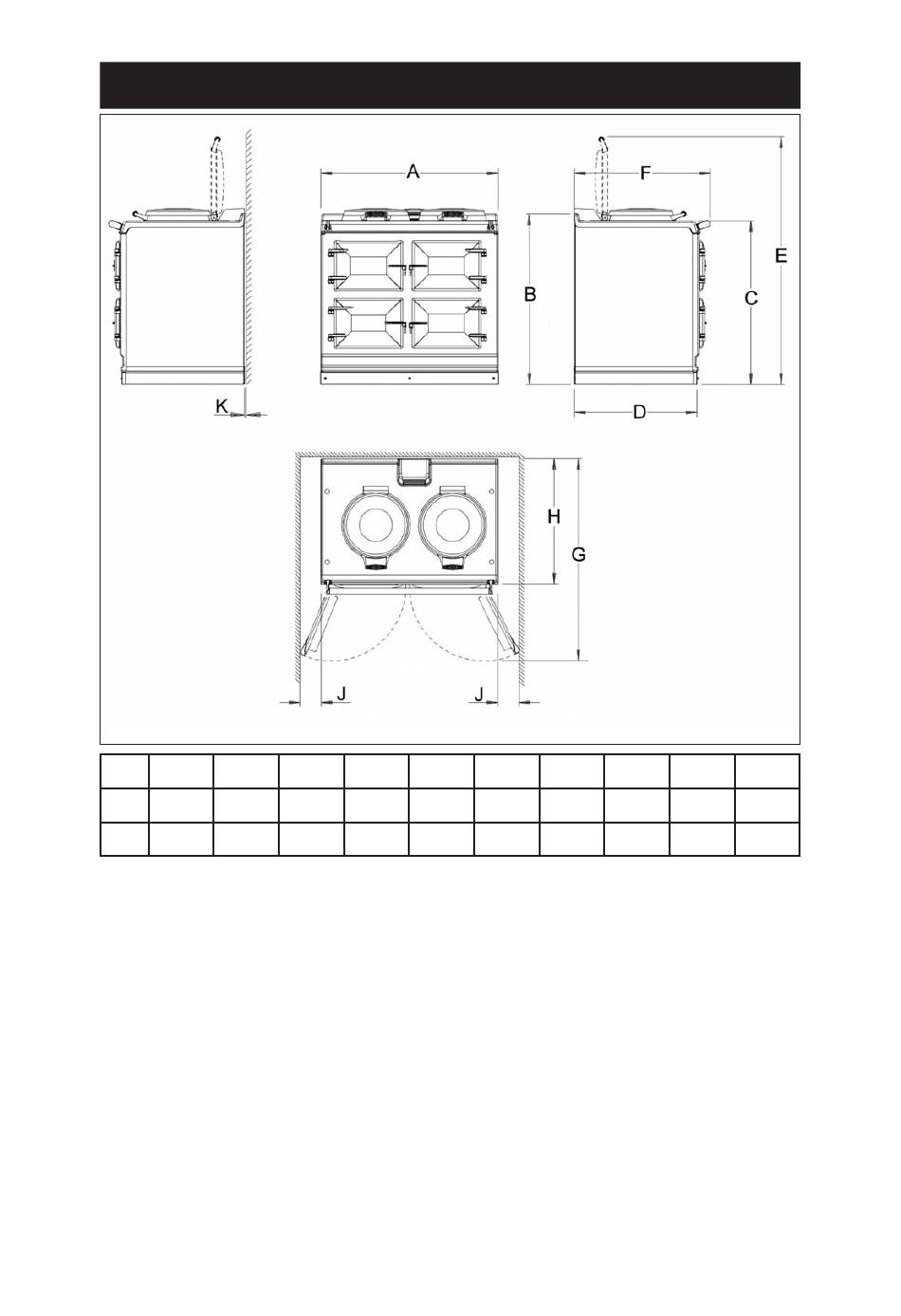

RH SIDE VIEW
MINIMUM WALL POSITION
Fig. 1
A B
mm 987 945
ins 38 7 37 3
/ /
8 16
Cooker Dimensions
When surveying for a cooker installation the actual clearance required for the 'body' of the
appliance should be increased by 3/8" (10mm) beyond the figures quoted above. This allows
safe margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
APPLIANCE WEIGHT
Model: AGA Total Control (TC3) - 816 lbs (370 Kg)
PACKAGING WEIGHT
1135 lbs (515 Kg)
DATA PLATE LOCATED BEHIND BOTTOM PLINTH.
FRONT VIEW
PLAN VIEW
MINIMUM WALL POSITION
C D E
910 680 1385
35 26 3 54 1
/ / /
13
4 2
16
4
LH SIDE VIEW
F G H
760 1145 698
29 45 1 27 1
/ / /
15
16 2
16
DESN 516297
