HIKVISION DS-PEA12-P/ZJ Configuration Manual

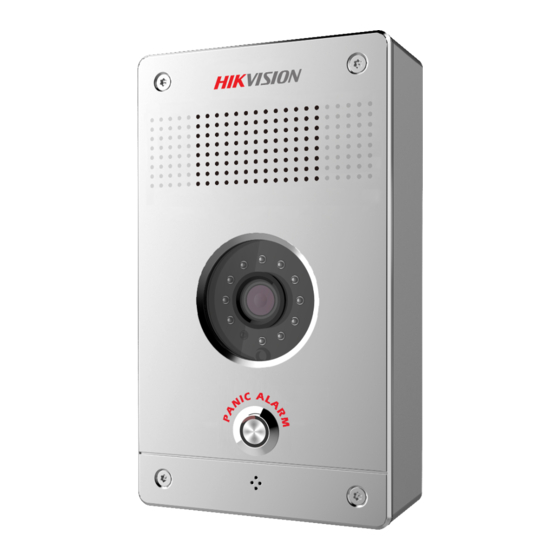

Panic alarm station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Panic Alarm Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-PEA12-P/ZJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-PEA12-P/ZJ

Summary of Contents for HIKVISION DS-PEA12-P/ZJ

  • Page 1 Panic Alarm Station Configuration Guide...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Panic Alarm Station Configuration Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Panic Alarm Station Configuration Guide Applicable Models This manual is applicable to DS-PEA series panic alarm station. Model Product Panic Alarm Station DS-PEA22-F(B) Box Panic Alarm Station DS-PEA22-B(B) Pole Panic Alarm Station DS-PEA22-P(B), DS-PEA12-P Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement...
  • Page 5 Panic Alarm Station Configuration Guide  Do not drop the device or subject it to physical shock.  Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary.  Do not aim the lens at the sun or any other bright light. ...

  • Page 6: Table Of Contents

    Panic Alarm Station Configuration Guide Contents Chapter 1 Overview........................1 Chapter 2 Activation........................2 2.1 Activate via SADP ........................2 2.2 Activate Device via Client Software ..................3 Chapter 3 Remote Settings ......................5 3.1 Device Management ......................5 3.1.1 Add Device to the Client Software ................5 3.1.2 Edit Network Parameters ...................
  • Page 7 Panic Alarm Station Configuration Guide 3.4.6 Manage Strobe Light Flicking ................... 26 3.5 Event Settings ........................27 3.5.1 Schedule Settings ..................... 27 3.5.2 Set Audio Exception Detection ................32 3.6 Video & Audio Settings ....................... 33 3.6.1 Video & Audio Settings .................... 33 3.6.2 Set Display ........................
  • Page 8 Panic Alarm Station Configuration Guide 3.10.4 Check Alarm Lamp Status ..................50...

  • Page 9: Chapter 1 Overview

    Panic Alarm Station Configuration Guide Chapter 1 Overview Description DS-PEA series of active panic alarm station supports multiple networks. It provides live view, two- way audio, and customized audio input. It supports linkage with the surrounding cameras and external lamp, sound box, etc. It helps to realize alarm aid in emergency. Key Features ●...

  • Page 10: Chapter 2 Activation

    Before You Start ● Get the SADP software from the supplied disk or the official website http://www.hikvision.com/en/, and install the SADP according to the prompts. ● The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 11: Activate Device Via Client Software

    Before You Start ● Get the iVMS-4200 client software from the supplied disk or the official website http://www.hikvision.com/en/. Install the software by following the prompts. ● The device and the PC that runs the software should be in the same subnet.
  • Page 12 Panic Alarm Station Configuration Guide Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 13: Chapter 3 Remote Settings

    Panic Alarm Station Configuration Guide Chapter 3 Remote Settings In the client software, go to Device Management, click and select the device in the device list, and click to enter the Remote Configuration page. Note ● The device should be activated the first time it is used to log in and use properly. See Activation to activate the device.

  • Page 14: Edit Network Parameters

    Panic Alarm Station Configuration Guide Management list. You can add devices to client software by several methods on the device management page. The following describes how to add devices through IP/Domain Name. For more information, see iVMS-4200 Client Software User Manual. Steps 1.
  • Page 15 Panic Alarm Station Configuration Guide Steps Note The network mode is multiple networks mode, you can set the basic network parameters for NIC 1 and NIC 2. 1. Click to enter the Remote Configuration page, go to Network → General. Figure 3-2 Network Basic Settings Page 2.

  • Page 16: Set Dns

    Panic Alarm Station Configuration Guide 4. Set the MTU(Byte), Device Port, HTTP port, RTSP port, and Default NIC for the device. MTU(Byte) Maximum transmission unit, which refers to the maximum packet size passed by TCP/UDP protocol network transmission. The default is 1500. Device Port The default device port number is 8000.
  • Page 17 Panic Alarm Station Configuration Guide the device is connected to the Wide Area Network via the router. Steps Note Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments.

  • Page 18: Set Alarm Center

    Panic Alarm Station Configuration Guide Caution Please do not arbitrarily edit the default port number. If there is a port conflict and you need to edit the port number, please modify the port number as follows. HTTP Port By default, the value of the HTTP port No. is 80. Server Port By default, the value of the Server port No.

  • Page 19: Set Sip

    Panic Alarm Station Configuration Guide Note The device supports two wired networks and one wireless network. Each network supports uploading alarm information to one alarm center. 3. Check Enable Upload Center to enable the alarm center, and set the upload center parameters. Notify Surveillance Center Each NIC supports only one upload center, and the default is Net Center 1.
  • Page 20 Panic Alarm Station Configuration Guide Figure 3-7 SIP Setting Page (SIP Protocol) Figure 3-6 SIP Setting Page (Private Protocol) Registration Status Display the status of the device registers to the SIP server. 2. Select the Server as IP Address or Domain Name. 3.

  • Page 21: Set Hik-Connect

    Panic Alarm Station Configuration Guide The interval that the device continuously registers to the SIP server, the register period ranges from 1 to 30 (min). Network Type Select the Network Type as Wired Network 1 or Wired Network 2. Note When you select a wired network, the wired network is used regardless of whether the wired network is normal;...

  • Page 22: Access The Platform

    Panic Alarm Station Configuration Guide Figure 3-8 Hik-Connect Setting Page 2. Check Enable Hik-Connect Access and enter the verification code to enable Hik-Connect service. 3. Optional: If you want to edit Server Address, check Custom and enter the server address. Note The default server address is litedev.hik-connect.com.

  • Page 23: Set Call Center Parameters

    Panic Alarm Station Configuration Guide Figure 3-9 Platform Access Configuration 2. Check Enable Platform Access to enable the Platform Access function. 3. Set the platform access parameters. Access Type Select the platform to be accessed. Server IP or Domain Name Enter the IP address or domain name of the platform.

  • Page 24: Set Intercom Parameters

    Panic Alarm Station Configuration Guide Figure 3-10 Call Center Configuration 2. Check to enable the function 3. Set call center parameters including center type, center name, phone number, dialing times, communication protocol, transfer mode, and receiver ID. 3. Click Save. 3.2.9 Set Intercom Parameters Steps 1.

  • Page 25: Alarm Settings

    Panic Alarm Station Configuration Guide The device will reboot automatically after switching the protocol successfully. 3.3 Alarm Settings 3.3.1 Set Zone The device supports four alarm input zones and two default zones (emergency call help and consulting). You need to configure zone parameters. Steps Note The default zone has a default zone type, default audio file, and the default zone will...
  • Page 26 Panic Alarm Station Configuration Guide Figure 3-13 Set Zone Parameters 4. Set zone parameters. Name Zone name. Detector Type The detector type of the zone. Zone Type Four zone type can be set for Non-default zones: Instant Zone, Fire Zone, 24-hour Non-voiced Zone, Shield Zone.

  • Page 27: Set Relay

    Panic Alarm Station Configuration Guide Shield Zone No events will trigger an alarm. Sensitivity The default value is 500 ms. Audio File Select an audio file for zone. Upload Alarm Recovery Report If check Upload Alarm Recovery Report, the report will be uploaded to the center when the alarm is restored.

  • Page 28: Set Call Waiting

    Panic Alarm Station Configuration Guide Figure 3-14 Relay Configuration Page Name The relay name. Output Delay(s) The output delay time, can be set from 0 to 2000s. After the zone event is triggered, the relay will turn off the relay output after the output delay time is ended. 3.

  • Page 29: Set Voice Prompt

    Panic Alarm Station Configuration Guide 3.3.4 Set Voice Prompt Steps 1. Click to enter the Remote Configuration page, go to Output Settings → Voice Prompt. Figure 3-16 Voice Prompt Configuration Page 2. Set the Center Busy File, Refuse Prompt, Voice Talk Ending Prompt, and Panic Alarm Prompt Sound.

  • Page 30: Alarm Management

    Panic Alarm Station Configuration Guide The device will be muted during the configured time period. 4. Click Save. 3.4 Alarm Management 3.4.1 Manage Relay Open or close the relay via client software. Click to enter the Remote Configuration page, go to Alarm Management → Relay Figure 3-17 Relay Management Page Check the relays that need to be turned on/off.

  • Page 31: Manage Siren

    Panic Alarm Station Configuration Guide Figure 3-18 Alarm Input/Output Configuration Page 2. Set the audio input/output mode and volume. Note ● spkOut is the device's own audio input/output. lineOut1 are 3.5mm hole interfaces, which can connect to the external microphones and speakers. The device defaults to micIn and spkOut.

  • Page 32: Manage Alarm Light

    Panic Alarm Station Configuration Guide Figure 3-19 Siren Management Page 2. Select a siren and enable Status to open the siren, or disable Status to close the siren. 3. Optional: Click Refresh to refresh the siren status. 3.4.4 Manage Alarm Light Open/Close the strobe lamp via the client software.
  • Page 33 Panic Alarm Station Configuration Guide Figure 3-21 Audio File Management 2. Upload the custom audio files. 1) Click View to select the audio file (can be selected in batch). 2) Check the audio file in the Upload File list and click Upload. Note ●...

  • Page 34: Manage Strobe Light Flicking

    Panic Alarm Station Configuration Guide 3.4.6 Manage Strobe Light Flicking Enable the strobe light flicking, and you can configure the strobe light flicking schedule. Steps 1. Click to enter the Remote Configuration page, go to Alarm Management → Alarm Lamp Flicking.

  • Page 35: Event Settings

    Panic Alarm Station Configuration Guide Figure 3-23 Strobe Light Flicking Schedule Note You can delete the drawn time period. ● Select a time period, and click Delete to delete it. ● Click Clear to delete all time period. 3. Click Save. 3.5 Event Settings 3.5.1 Schedule Settings Configure the recording and capture schedule.
  • Page 36 Panic Alarm Station Configuration Guide Figure 3-24 Schedule Configuration Page Select a camera, and configure the record and capture schedule. Click Save to save the settings. Note The panic alarm station without camera does not support capture schedule configuration. Record schedule configuration Local Recording Check Local Recording to enable the recording.
  • Page 37 Panic Alarm Station Configuration Guide Figure 3-25 Advanced Settings of Record Pre-record The pre-recording time can be selected as 5 s or not pre-record. Post-record The delay recording time can be selected as 5 s or 10 s. Record Audio The record audio can be set as Yes or No.
  • Page 38 Panic Alarm Station Configuration Guide Figure 3-26 Advanced Settings of Capture ● Continuous capture configuration Check Continuous Capture to enable the timed capture function, which can capture the image at regular intervals according to the set interval. Resolution Select the picture resolution. By default, it is HD720p(1280×720). Image Quality Set the image quality.
  • Page 39 Panic Alarm Station Configuration Guide 3. Optional: Select the schedule type. – Continuous: Regardless of whether an event is triggered or not, the system records video according to the scheduled recording time period. – Event: The event is recorded during the scheduled recording time period when the event is triggered.

  • Page 40: Set Audio Exception Detection

    Panic Alarm Station Configuration Guide 3.5.2 Set Audio Exception Detection Audio exception detection means that when the sound in the environment is detected as sudden increase of sound intensity or sharp decrease of sound intensity, an alarm output will be triggered. Steps 1.

  • Page 41: Video & Audio Settings

    Panic Alarm Station Configuration Guide ● Custom schedule. For detailed edit method, see Set Custom Schedule. 4. Check Trigger Alarm Output, select and check the alarm output signal that is linked when the audio exception is detected. 5. Click Save. Result During the configured arming schedule, the audio anomaly event is detected according to the enabled detection items, and the selected alarm output signal is linked when the audio exception...
  • Page 42 Panic Alarm Station Configuration Guide parameters. Video Stream The stream type of camera can be set as Main Stream or Sub Stream. By default, it is Main Stream. The main stream is used for HD storage and preview; the sub stream is used for SD storage and preview when the network bandwidth is insufficient.

  • Page 43: Set Display

    Panic Alarm Station Configuration Guide required to support the function. When the SVC function is selected as Auto, the device will adapt to the current network environment and decide whether to send framed video to ensure that the image can be previewed normally. File Size According to the video and audio parameters, the video file size of the whole day will be automatically calculated.

  • Page 44: Set Image Parameters

    Panic Alarm Station Configuration Guide including display position, display format and optional display content, you are able to add custom display information. Editing the display position Drag the blue box on the live view page to change the position of the display information, click Save, and then the position of the display information will be updated.

  • Page 45: Set Intercom Audio

    Panic Alarm Station Configuration Guide Figure 3-30 Picture Settings Page Select a camera to configure the video parameters, including brightness, contrast, saturation and sharp. Note ● By default, the brightness is 6, the contrast is 5, the saturation is 6, and the sharp is 50. Click Default, you can restore all video parameters to default.

  • Page 46: System Settings

    Panic Alarm Station Configuration Guide 3.7 System Settings 3.7.1 Set Time Click to enter the Remote Configuration page, go to Device Information → Time. Figure 3-32 Time Setting Page You can set the time zone, NTP, DST on the Time page. You can also click Synchronization to implement SDK synchronization.

  • Page 47: Set Security

    Panic Alarm Station Configuration Guide Figure 3-33 System Parameters Setting Page Set the device name and device No., and select Yes or No from the Overwrite Record Files drop- down box. Click Save to save the settings. Note Select Overwrite Record Files as Yes, the new video file will overwrite the earliest video file when the device storage is full.

  • Page 48: Set User

    Panic Alarm Station Configuration Guide Figure 3-35 Password Management Page IP Address The IP address of the terminal in which the locked user logs. Unlock The user's access lock status on the corresponding IP address. 2. Enable the access lock function and set the lock parameters. 1) Check Access Lock to enable the access lock function.

  • Page 49: Search For Log

    Panic Alarm Station Configuration Guide 1) Select the admin user and click Edit. 2) Enter the new password and confirm it. 3) Click Save. Figure 3-36 Edit Admin User 3.7.6 Search for Log Search and view the alarm logs, exception logs, operation logs and event logs. Click to enter the Remote Configuration page, go to System →...

  • Page 50: Maintain The System

    Panic Alarm Station Configuration Guide Figure 3-37 Search and View the Log Note You can click Backup and download the search result. 3.7.7 Maintain the System System management and remote upgrade. Click to enter the Remote Configuration page, go to System → System Maintenance.
  • Page 51 Panic Alarm Station Configuration Guide Figure 3-38 System Maintenance Page System Management You can reboot the device, restore default settings, restore all settings, and import/export configuration file. Reboot Restart the device. Restore Default Settings Restore the default settings, that is, except the IP address and user information, all other parameters of the device will be restored to factory default settings.

  • Page 52: Check Video & Audio Status

    Panic Alarm Station Configuration Guide Note The configuration file contains the parameter information of the device. It is required to set a password for the exported file. The password is used for importing verification. Remote Upgrade Upgrade the device remotely via the client software. Click and select the upgrading file.

  • Page 53: View Device Information

    Panic Alarm Station Configuration Guide Check Enable, set the detection time and click Save. Note The detection time can be selected as none, everyday or one day of the week. None Auto check function is not enabled. Everyday Check every day according to the set time. One day of the week The device performs a check at the set time on this day of the week.

  • Page 54: Set Camera

    Panic Alarm Station Configuration Guide 3.8 Set Camera Configure the camera parameters, including the camera, WDR (Wide Dynamic Range) function, and video standard. 3.8.1 Add Camera Add, modify and delete an external network camera, and enable the camera. Steps Note Only one network camera can be added to the device.

  • Page 55: Set Video Parameters

    Panic Alarm Station Configuration Guide 4. Click Save. 5. Optional: Click Refresh to refresh the camera status. 3.8.2 Set Video Parameters Click to enter the Remote Configuration page, go to CCD → Video Parameters. Figure 3-42 Video Configuration Page Select the camera from the drop-down box. Click Save. 3.8.3 Set WDR When WDR is enabled, the device automatically balances the brightest and darkest parts of the camera picture, improving the dynamic range of the overall picture to see more details of the...

  • Page 56: Set Other Parameters

    Panic Alarm Station Configuration Guide 3.8.4 Set Other Parameters Steps 1. Click to enter the Remote Configuration page, go to CCD → Other. Figure 3-44 Video Standard Configuration Page 2. Select a camera, and set the video standard, mirror and rotate. Note When selecting Video Standard as PAL (50HZ), the highest frame rate is 25 fps, and when selecting Video Standard as NTSC (60HZ), the highest frame rate is 30 fps.

  • Page 57: Search For File

    Panic Alarm Station Configuration Guide Figure 3-45 HDD Parameters Configuration Page 3. Set the storage quota, and click Save. 4. Select and check the MicroSD card, click Format. Note The progress bar shows the formatted process. When the MicroSD card is formatted, the status of the MicroSD card will display Active.

  • Page 58: Check Status

    Panic Alarm Station Configuration Guide 3.10 Check Status 3.10.1 Check Zone Status Click to enter the Remote Configuration page, go to Status → Zone, you can view the status of zone alarm. 3.10.2 Check Relay Status Click to enter the Remote Configuration page, go to Status → Relay, you can view the relay status.
  • Page 59 UD19463B...
