Wall Mounted Sensor Tap - Hands-Free
- Active Sense with Custodian
Installation and Maintenance Instructions
DET5071A-CNBSN
I00407_Version 1.0__25May22
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: 02 8536 4000 info
enware.com.au
@
Basin Spout
®
Advertisement
Table of Contents
Related Manuals for enware DET5071A-CNBSN
Summary of Contents for enware DET5071A-CNBSN
- Page 1 Wall Mounted Sensor Tap - Hands-Free - Active Sense with Custodian Basin Spout ® Installation and Maintenance Instructions DET5071A-CNBSN I00407_Version 1.0__25May22 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: 02 8536 4000 info enware.com.au...
-
Page 2: Product Description

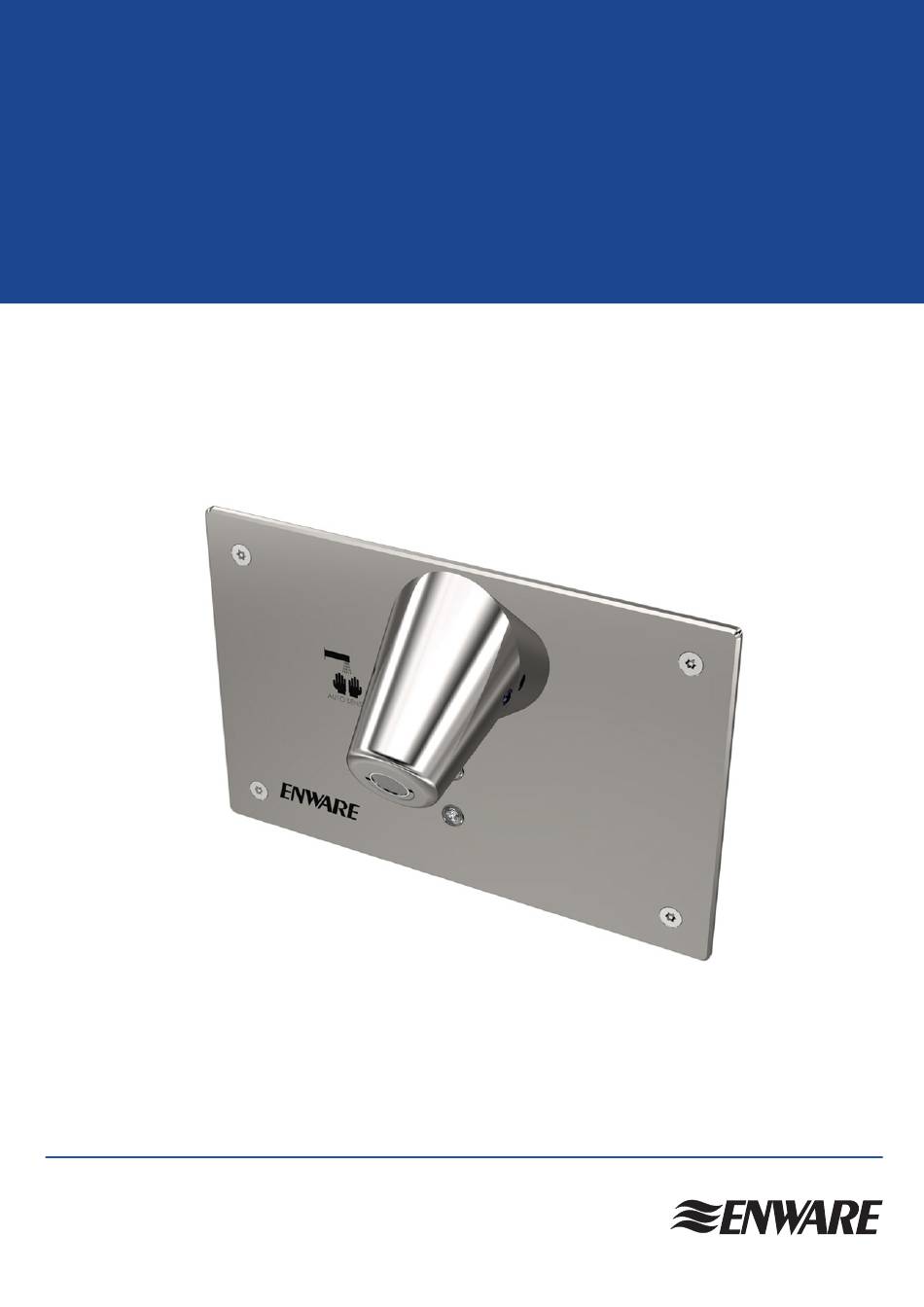

Enware Touch-Free Wall Sensor Tap is a sensor operated, hands-free tap that is installed onto walls above sinks, basins or wash troughs. It operates by sensing a hand in front of the sensor unit. Once the sensor is activated, the solenoid valve will remain open and water will flow as long as the hand is within the sensor range. -
Page 3: Technical Data
The optional settings are available at the time of ordering. Contact Enware for more details. installation compliance *Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions. -
Page 4: Location Of Sensor
SET-OUT HEIGHT Suggested heights from finished floor: Spout 1050mm outlet 1120mm to point of water discharge (Australasian Health Facility Guidelines) Top of 850mm basin 865mm (Australasian Health Facility Guide- lines) 800 - 830mm (Reference: AS1428.1-2021) Call 1300 369 273 www.enware.com.au... -
Page 5: Water Supply Temperature
WARNING: Do not cut the wires or extend Thermostatic Mixing Valve be used to the existing cables without using the provide pre-mixed water to the valve. correct lead extension from Enware, as this will void warranty. www.enware.com.au Call 1300 369 273... -
Page 6: Installation In-Wall
SEE IMAGE 01 Call 1300 369 273 www.enware.com.au... - Page 7 120mm high rectangular hole, and at least 66mm deep to allow for installation of bracket. Sensor Wall Cut Out for Sensor Bracket cable to come through the top, bottom, or back of sensor inside wall. SEE IMAGE 05 IMAGE 05 www.enware.com.au Call 1300 369 273...
- Page 8 3 metre lead from the sensor to the solenoid. Additional lead lengths up to 15 metres 4.5m can be accommodated with extension cables (available separately from Enware). SEE IMAGE 06 TRANSFORMER CABLE WARNING: Do not cut the electrical cable of IMAGE 06 the sensor tap, or alter the product in any way to suit installation.
- Page 9 Sensor components are fragile and sensitive. Do not force the sensor plate to fit onto wall, See Operating Instructions overpage. or attempt to disassemble sensor components, as this could result in damage to sensor and would void warranty. www.enware.com.au Call 1300 369 273...
-
Page 10: To Turn Off
Maximum continuous run time per sensor activation is 45 seconds*. (Security Time Out) When hand is within sensor range, sensor responds with a Red LED light in the sensor lens. *Longer flow time settings are available – contact Enware for more information. Hand too low, out of sensor range... -
Page 11: Troubleshooting
Replace solenoid valve Tap/ water turns off slowly Debris in solenoid valve Take solenoid apart and clean diaphragm. Refer to Solenoid Maintenance section. Solenoid diaphragm is Replace solenoid diaphragm damaged or solenoid. Refer to Solenoid Maintenance section. www.enware.com.au Call 1300 369 273... -
Page 12: Spare Parts
PART ENWARE PRODUCT CODE Sensor – Active Sense ENMS134A (Stainless steel plate, sensor connector cable) Solenoid 1/2” – DC 24v WMS8200 (includes DC solenoid 1/2”, 2x 1/2” nipples) Solenoid Service Kit - DC (includes diaphragm, piston and spring to suit DC WMS8302 solenoid 1/2”) -
Page 13: Service And Maintenance
Take note of the order of parts assembled. SEE IMAGES 10, 11 4. Check seat and diaphragm for debris or any damage. SEE IMAGE 12 IMAGE 12 www.enware.com.au Call 1300 369 273... - Page 14 DIRECTION OF FLOW 11. Finally place the black coil body back over the core tube, and tighten the hex nut back up. IMAGE 15 DIRECTION OF FLOW IMAGE 16 DIRECTION OF FLOW IMAGE 17 Call 1300 369 273 www.enware.com.au...
-
Page 15: Replacing The Sensor
Before fixing the sensor plate to wall, CLEANING apply a thin bead of silicone sealant Enware Product should be cleaned with a soft damp behind the plate along the top and cloth using only mild liquid detergent or soap and side edges. -
Page 16: Making A Claim
Form available on website www.enware.com.au. All notifications and accompanying forms must be sent to other conditions us marked for the attention of the Enware Australia Pty Limited, 9 Endeavour Road, Caringbah NSW 2229. We Except as provided or referred to in this document, we...
