Summary of Contents for enware EMD815

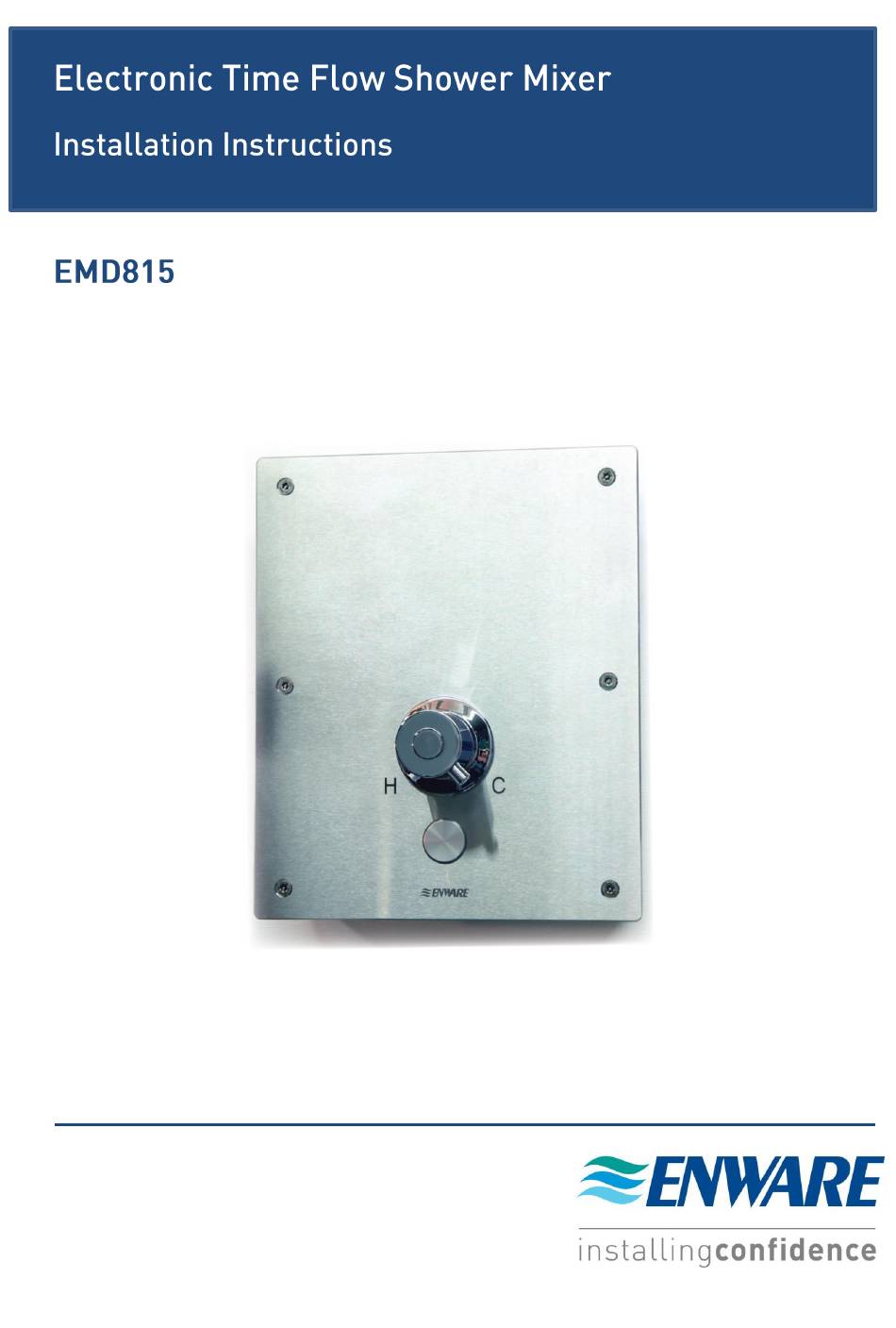

- Page 1 I00224_JAN 2017 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: +61 2 8556 4000 Fax: +61 2 8556 4055...
- Page 2 DIMENSIONS (NOT TO SCALE)
- Page 3 COMPONENTS...
-
Page 4: Technical Table
Brass For use with potable water only. COMPLIANCE * Enware products are to be installed in accordance with the Plumbing Code of Australia and AS/NZS3500. Reference should also be made to the Australasian Health facility Guidelines (AHFG), ABCB and Local Government regulations when considering the choice of, and the installation of these products. - Page 5 INSTALLATION - ROUGH IN Determine Location of Shower Wall depth: min 70mm – max 85mm from finished wall surface to the back of box. This shower cannot be installed sideways, or upside down. The mixer body must be installed in the correct direction, with the 2 inlets on the horizontal plane.
- Page 6 8. Run the cable for the power pack through a conduit, and have the connector inside shower box. Power point has to be accessible to allow for possible future replacement, repair or service. WARNING: Do not cut the wires or extend existing cables without using the correct cable extension from Enware. Cutting cables will void warranty.
- Page 7 9. Connect power cable to piezo button. Connect two spade connectors to the two side connectors of the solenoid.
-
Page 8: Operating The Mixer
If the piezo button needs to be re-programmed, refer to “Enware Electronic Piezo Button Program” in the following section. Turn mixer handle and test functionality of the shower system. If there is any problem see Troubleshooting Section following or contact Enware. -
Page 9: Troubleshooting
Check power supply, protect the power pack from electrical surge. * For electronic piezo button program instructions, refer to “Enware Electronic Piezo Button Program” in the following section. ** For Solenoid Servicing instructions, refer to separate document “Enware EMS804 24V Solenoid Service & Maintenance Instructions_I00228”. - Page 10 Enware Programmable Piezo Button is a touch-activated electronic switch that can be easily set to a desired timing. Its versatility allows it to be set again to a different program on site should there be any change of mind. The electronic button timing program offers the following features: ...
-
Page 11: Programming Table
1. To set the button to a new program, firstly turn the power OFF to the button. This can be done by either turning the power OFF at the power point, or disconnecting the power connection close to the button. 2. -
Page 12: Warranty
(see contact details below). All notifications and accompanying forms must be sent to us marked for the attention of the Enware Australia Pty Limited, 9 Endeavour Road, Caringbah NSW 2229. We can also be contacted by telephone (1300 369 273) or by email (info@enware.com.au).
