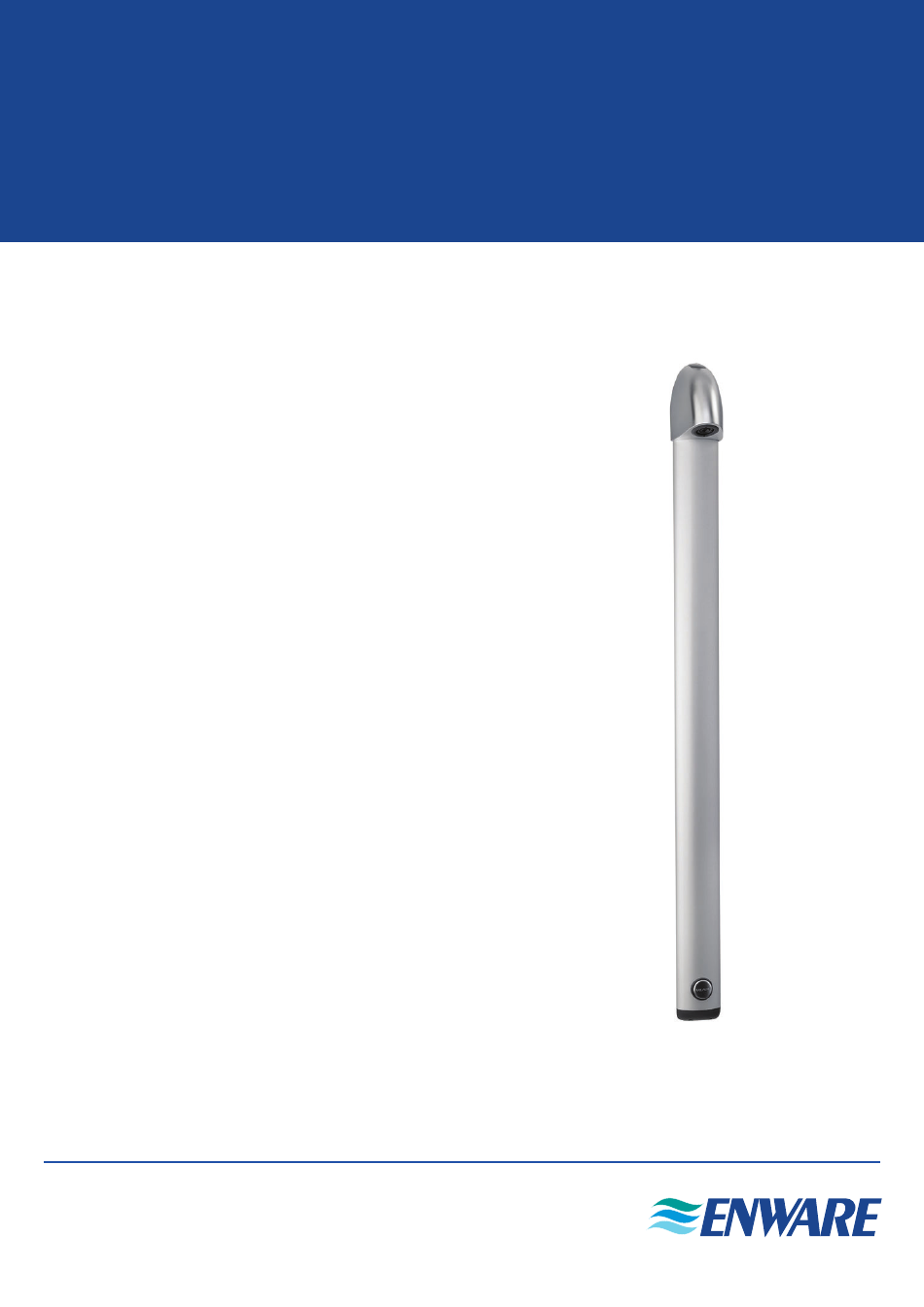

- Page 1 ENWARE-DELABIE TIME FLOW SPORTING SHOWER MODULE Installation & Maintenance Instructions TFC714700 I00278_Oct 17 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: +61 2 8556 4000 Fax: +61 2 8556 4055...
-
Page 2: Technical Data
6 Lpm (Adjustable) Finish Anodized Aluminium / Satin Chrome compliance before installation Enware products are to be installed in Before Proceeding With Installation accordance with the Plumbing Code of Australia (PCA), AS/NZS3500 and the manufacturer’s • Ensure all operating and dimensional instructions. - Page 3 COVER PLATE COVER PLATE OUTLINE OUTLINE 57.5 57.5 Floor Level Floor Level SPACE FOR SPACE FOR CIRCUIT BOARD CIRCUIT BOARD (REQUIRES 30mm (REQUIRES 30mm DEPTH) DEPTH) BACK INLET SETOUT TOP INLET SETOUT *Recommended shower installation height www.enware.com.au Call 1300 369 273...
-
Page 4: Installation Procedure
13. Supply a 1/2” BSP Female fitting in wall. Length of male threaded screw [37] IMAGE 4 is approx. 23mm deep from finished wall COVER PLATE OUTLINE 57.5 SPACE FOR CIRCUIT BOARD (REQUIRES 30mm DEPTH) IMAGE 4 www.enware.com.au Call 1300 369 273... - Page 5 27. Slide the blank cap [40] into the slot on the top cover [7] IMAGE 5 28. Replace the top cover and tighten up the outer locking ring using the removal tool 29. Replace the end-cap, tighten the two screws Call 1300 369 273 www.enware.com.au...
-
Page 6: Commissioning And Operation
See Maintenance section following Automatic shut-off takes too Debris fouling cartridge Clean the cartridge or replace if damaged. long. Run time is longer than See Maintenance section following specified Time flow tap does not shut off www.enware.com.au Call 1300 369 273... -
Page 7: Maintenance
6. Replace the mechanism assembly not forgetting the washer [24] IMAGE 10B 7. Restore the water supply by opening the stopcock 57.5 (anti-clockwise) SPACE FOR CIRCUIT BOARD (REQUIRES 30mm DEPTH) 8. Replace top cover and tighten outer locking ring IMAGE 11 Call 1300 369 273 www.enware.com.au... -
Page 8: Making A Claim
Except as provided or referred to in this document, we of the Enware Australia Pty Limited, 9 Endeavour Road, accept no other or further liability for any damages Caringbah NSW 2229. We can also be contacted by...
