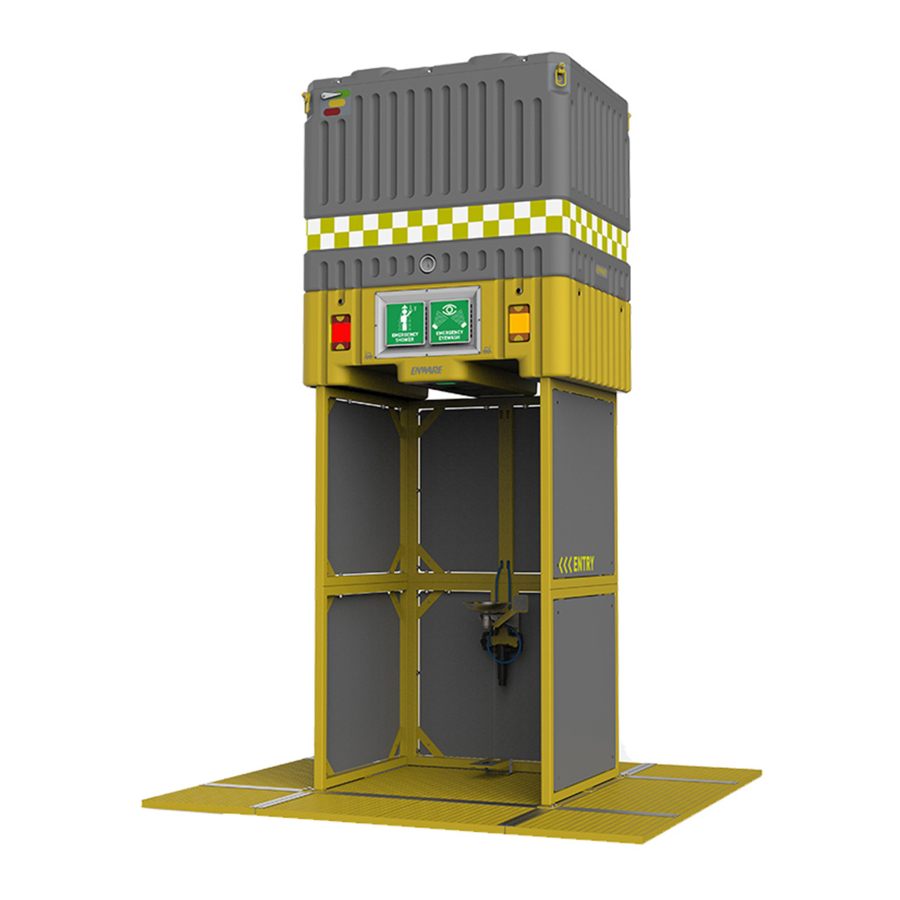

Emergency tank shower and eye wash, with powder coating option

Advertisement

Quick Links

EMERGENCY TANK SHOWER
AND EYE WASH
Assembly | Commissioning | Maintenance

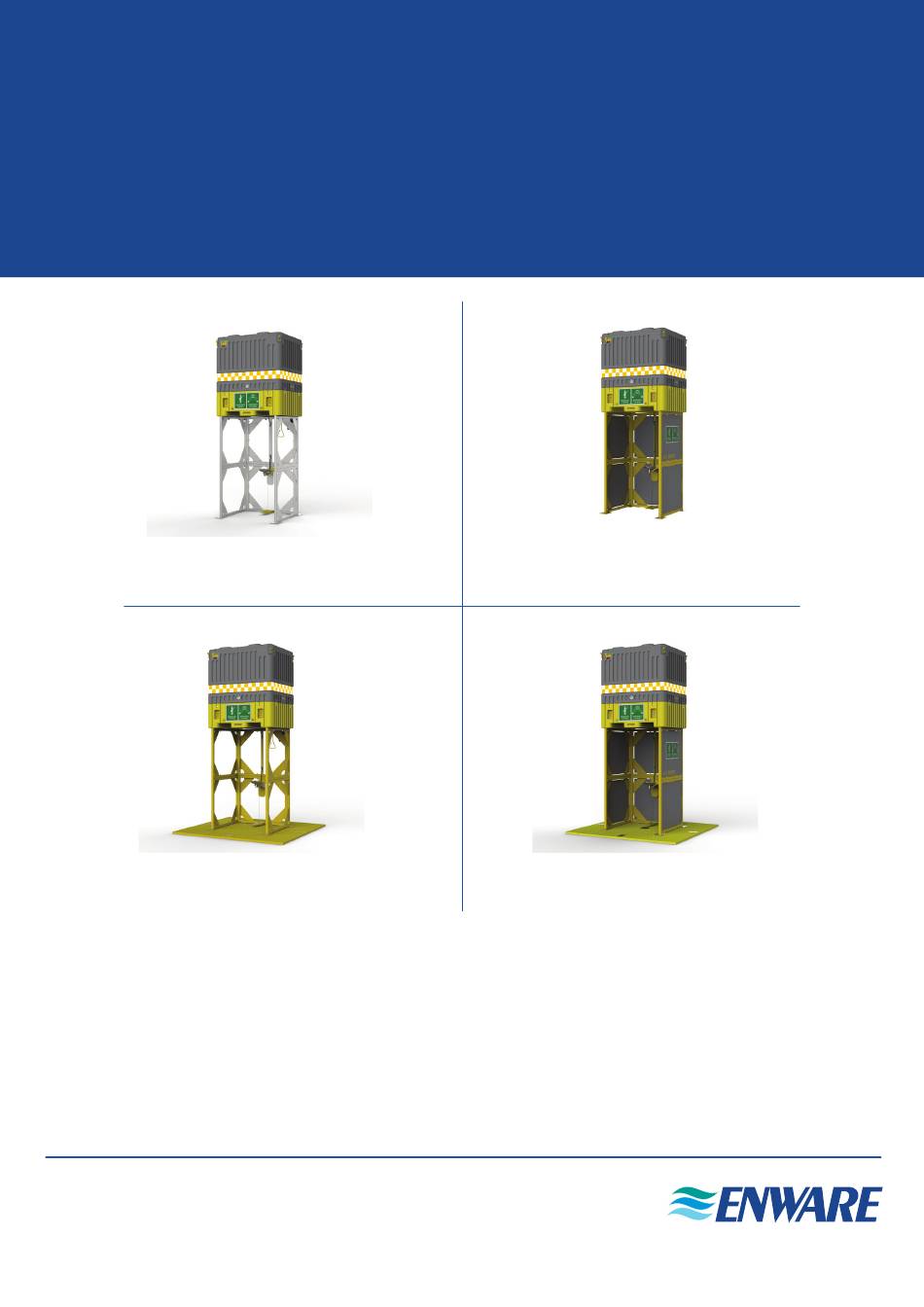

ET1400F
ET1400FB
(with powder coating option)
INSTALLATION COMPLIANCE
Installation of emergency showers, eye and eye/face wash equipment shall be in accordance with
AS4775 or ANSI Standard Z358.1 whichever is applicable to the installation.
Tank Shower frame is not Cyclone Rated when mounted on FRP Grid Base. Tank Shower frame with privacy panels is Category B
Cyclone Rated when bolted to the specified concrete slab and when tank is at least half full of water.
Note: Tank shower must be installed as per manufacturer's drawings and installation instructions.
I00292_Jan 20
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: +61 2 8556 4000 info
enware.com.au
@
ET1400FP
ET1400FBP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET1400F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for enware ET1400F

  • Page 1 Cyclone Rated when bolted to the specified concrete slab and when tank is at least half full of water. Note: Tank shower must be installed as per manufacturer’s drawings and installation instructions. I00292_Jan 20 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: +61 2 8556 4000 info enware.com.au...
  • Page 2: Prior To Installation

    Anti-Seize is pre-applied on bolt threads. Apply more Anti-Seize if required. Tighten all bolts firmly but do not over-tighten. *Enware Tank Shower Sales Codes: ET1400F - Tank, flat pack frame IMAGE 2 ET1400FP - Tank, flat pack frame, side panels...
  • Page 3 2. Position the Grating Mats as shown, taking note of the orientation of the pre-installed Mounting Plates. SEE IMAGE 4 IMAGE 4 3. Join the Grating Mats by using Clamping Plate Sets as shown. SEE IMAGE 5 & 6 IMAGE 5 IMAGE 6 www.enware.com.au Call 1300 369 273...
  • Page 4: Installation

    (SEE IMAGE 9), with the free end loose, ready for connection to the tank. Insert the other end of hose into the push-fit connector on the eyewash, and push until it bottoms out. IMAGE 9 www.enware.com.au Call 1300 369 273...
  • Page 5 IMAGE 11 7. Insert the eyewash hose into the bulk head fitting, and push until it bottoms out (SEE IMAGE 12). (The fitting is a push-fit connector and does not require further tightening.) IMAGE 12 Call 1300 369 273 www.enware.com.au...
  • Page 6 Attach shower activation pull handle to the activation valve arm using the nut and bolt supplied (SEE IMAGE 14). IMAGE 14 INSTALLATION IS NOW COMPLETED AND THE TANK SHOWER IS READY TO BE COMMISSIONED. SEE PAGE 6 FOR COMMISSIONING. Call 1300 369 273 www.enware.com.au...
  • Page 7 5. Reinforcement is shown diagramatically, not necessarily shown in true projection. 6. All reinforcement shall be firmly supported on plastic or MS plastic tipped or galvanised chairs placed at not greater than 800mm centres both ways. Call 1300 369 273 www.enware.com.au...
  • Page 8: Commissioning Complete

    5. Once water starts to flow out from the internal overflow, turn off the infeed water and disconnect from the 40mm IMAGE 16 camlock fitting. (SEE IMAGE 15) COMMISSIONING COMPLETE Shower and eyewash are now commissioned and tank shower and eyewash are ready for use. Call 1300 369 273 www.enware.com.au...
  • Page 9: Temperature Gauge

    WASHERS M16 FIXINGS-FLATPACK FRAME TO PALLET ET14SP002 10 X BOLTS M16X80 WATER LEVEL ASSEMBLY ET14SP003 TEMPERATURE GAUGE ET14SP004 SIGNAGE SHOWER - EYEWASH STAINLESS STEEL ET14SP005 FLOW CONTROLLER - ORIFICE PLATES ET14SP006 SHOWER ROSE ASSEMBLY ET14SP007 Call 1300 369 273 www.enware.com.au...
  • Page 10 EYEWASH OUTLET KIT ET14SP010 ASSEMBLED FOOT BASE CLAMP KIT ET14SP011 ASSEMBLED ASSEMBLED FOOT BASE CENTRE CLAMP KIT ET14SP012 FOOT BASE CLAMP M10X25 SCREW - SET OF 6 ET14SP013 FOOT BASE PANEL - 1 PANEL ET14SP014 Call 1300 369 273 www.enware.com.au...
  • Page 11 ET14SP016 cleaning Enware product should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, sourcing agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Damage caused this way will not be covered by warranty.
  • Page 12: Maintenance Schedule

    Eye Wash Filter Strainer WATER QUALITY CHECK Enware recommends that water quality is checked for suitability of use in an emergency. These checks should be done periodically (at intervals based on the specific site risk assessment) to determine if the flushing fluid needs to be replaced.
