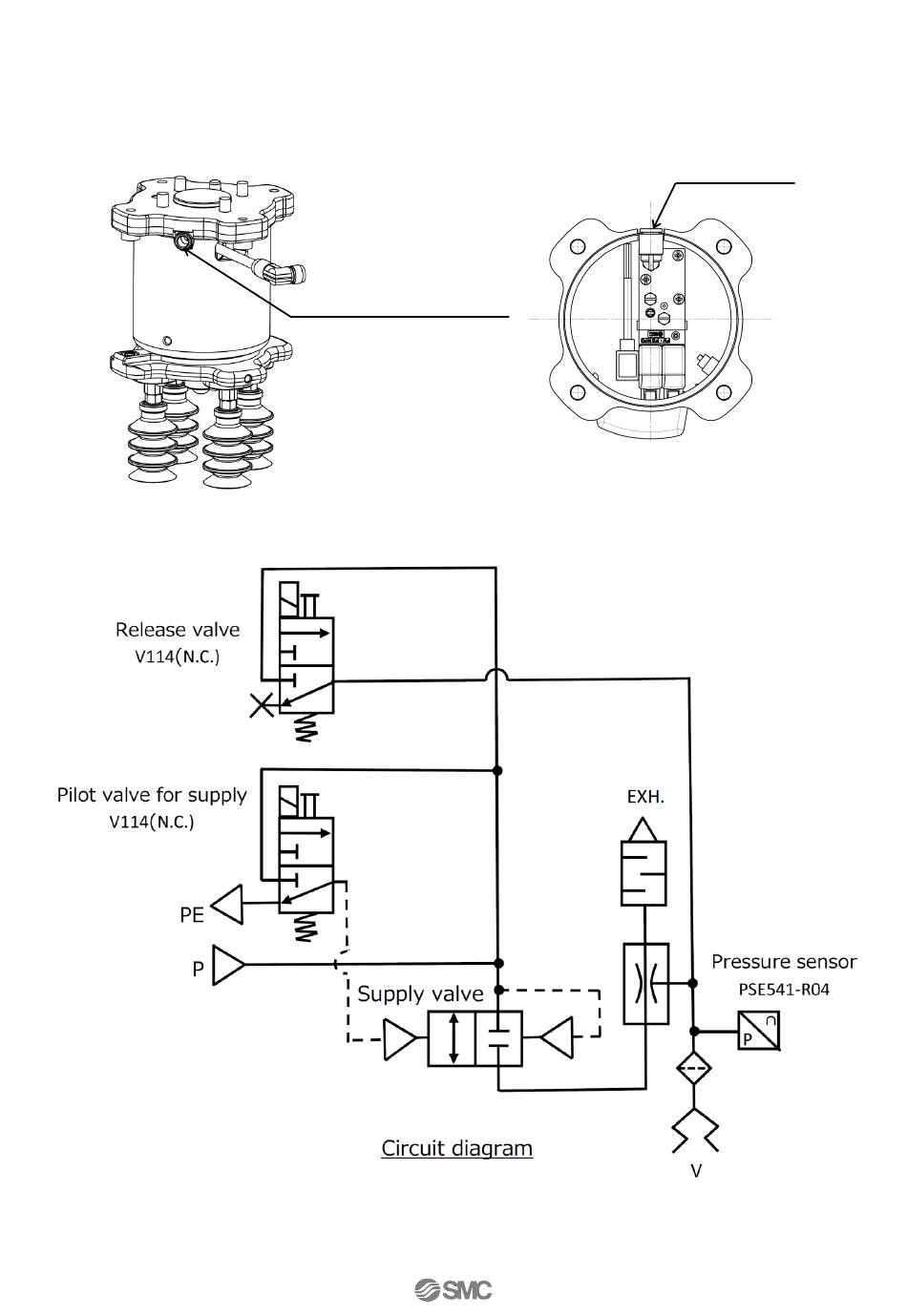

4.3. Piping

■Tubing
Connect a tube (applicable tube O.D. Ø6) to the air pressure supply (P) port.
To remove the tube, push the release button and pull out the tube.
Air pressure supply (P) port
Applicable tubing O.D.: Φ6
-15-
Release Button
No. TQ1230001-OM101-C
