Software Logic Tree

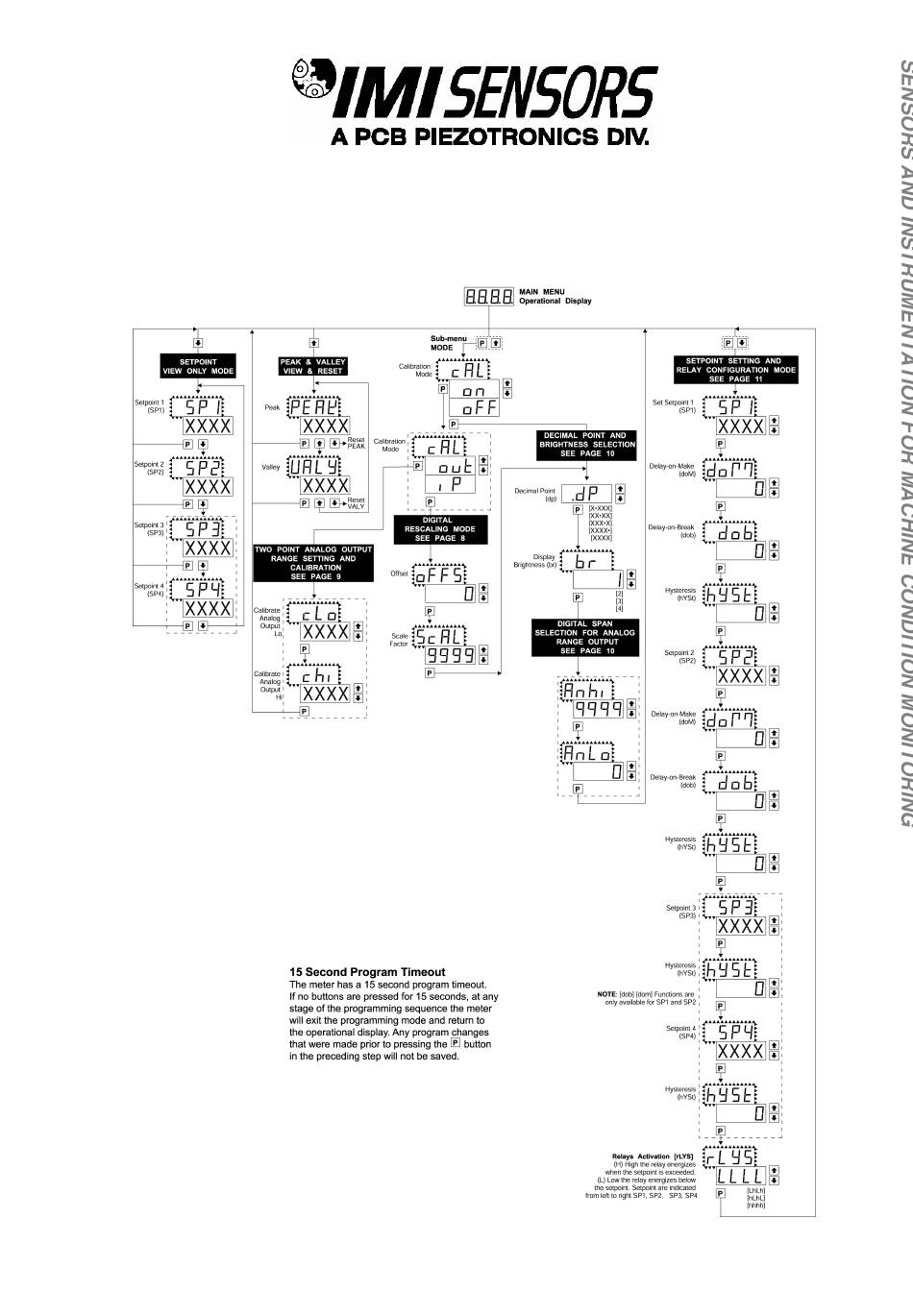

The 683A1 is an intelligent meter with a hierarchical software structure designed for easy programming and
operation, as shown below in the software logic tree. After the meter has been powered up, the four digits light up
for three seconds and then settle to the operational display indicating the input signal.
PAGE 7
