Model 687A02
Handheld Vibration Meter
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: 716-684-3823
E-mail: imi@pcb.com
Web: www.imi-sensors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMI SENSORS 687A02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics IMI SENSORS 687A02

Summary of Contents for PCB Piezotronics IMI SENSORS 687A02

  • Page 1 Model 687A02 Handheld Vibration Meter Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com Web: www.imi-sensors.com...
  • Page 2 Piezotronics, user servicing or repair is critical test. not recommended and, if attempted, may void the factory warranty. Routine PCB Piezotronics maintains an ISO- maintenance, such as the cleaning of 9001 certified metrology laboratory and electrical connectors, housings, and offers calibration services, which are...
  • Page 3 50% of the general contact numbers are: replacement cost returned item(s). PCB will provide a price PCB Piezotronics, Inc. quotation replacement 3425 Walden Ave. recommendation for any item whose Depew, NY14043 USA repair costs would exceed 50% of...
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 汞 镉 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 铅 (Pb) (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead Mercury Cadmium Chromium VI Polybrominated Polybrominated (Pb) (Hg) (Cd) Compounds Biphenyls Diphenyl (Cr(VI)) (PBB) Ethers (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 INDUSTRIAL MONITORING INSTRUMENTATION DIVISION The Model 687A01 & 687A02 Hand Held Vibration Meter Kits Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 18411 MANUAL REVISION: B ECN NUMBER: 18769...

  • Page 7: Table Of Contents

    INDUSTRIAL MONITORING INSTRUMENTATION DIVISION table of contents Introduction ........................page 3 Figure 1 – Model 687A01 Hand Held Vibration Meter Kit..........page 3 Description........................page 4 Sensor – Model 603C01 ....................page 5 Headphones – Model 070A47 ..................page 5 Magnetic Mounting Base –...

  • Page 8: Introduction

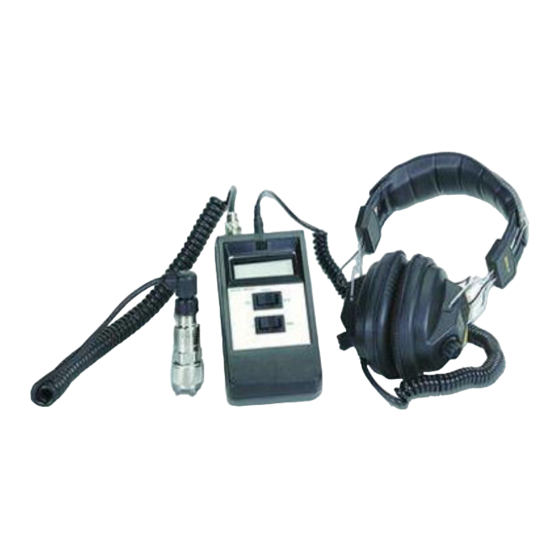

    INDUSTRIAL MONITORING INSTRUMENTATION DIVISION introduction The Model 687A01 Hand Held Vibration Meter Kit consists of a digital vibration meter, a general purpose accelerometer, an accelerometer cable assembly, magnet, and headphones. The kit is designed for general purpose, overall vibration readings on all types of machines. When unpacking the kit, be sure to note that the following accessories are included: ...

  • Page 9: Description

    INDUSTRIAL MONITORING INSTRUMENTATION DIVISION description The meter provides two types of measurements — overall acceleration and overall velocity. In the velocity mode, the meter measures in the frequency range of 10 Hz to 1 kHz, and complies with ISO2954 standard. It measures overall RMS velocity to a maximum of two inches per second.

  • Page 10: Sensor - Model 603C01

    INDUSTRIAL MONITORING INSTRUMENTATION DIVISION sensor – model 603C01 The sensor supplied with the kit is a general purpose industrial accelerometer, Model 603C01. Please refer to the enclosed specifications on the 603C01 for proper operation of the sensor. headphones – model 070A47 The headphones are stereo-type with built-in, individual volume controls.

  • Page 11: Esd Warning Information

    2 – ESD sensitivity This equipment is designed with user safety in mind; however, the protection provided by the equipment may be impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc. caution 1 – ESD sensitivity Cables can kill your equipment.

  • Page 12: Warranty, Service & Return Procedure

    INDUSTRIAL MONITORING INSTRUMENTATION DIVISION warranty IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by warranty. If there are any questions regarding power, intended application, or general usage, please consult with your local sales contact or distributor.

  • Page 13: Customer Service

    IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may also choose, within the warranty period, to have your purchase price refunded.
  • Page 14 Model Number Revision: C HANDHELD VIBRATION METER 687A02 ECN #: 47534 Performance ENGLISH OPTIONAL VERSIONS Frequency Response(+10 to -20 %) 600 to 60,000 cpm 600 to 60,000 cpm Optional versions have identical specifications and accessories as listed for the standard model except where noted below.
