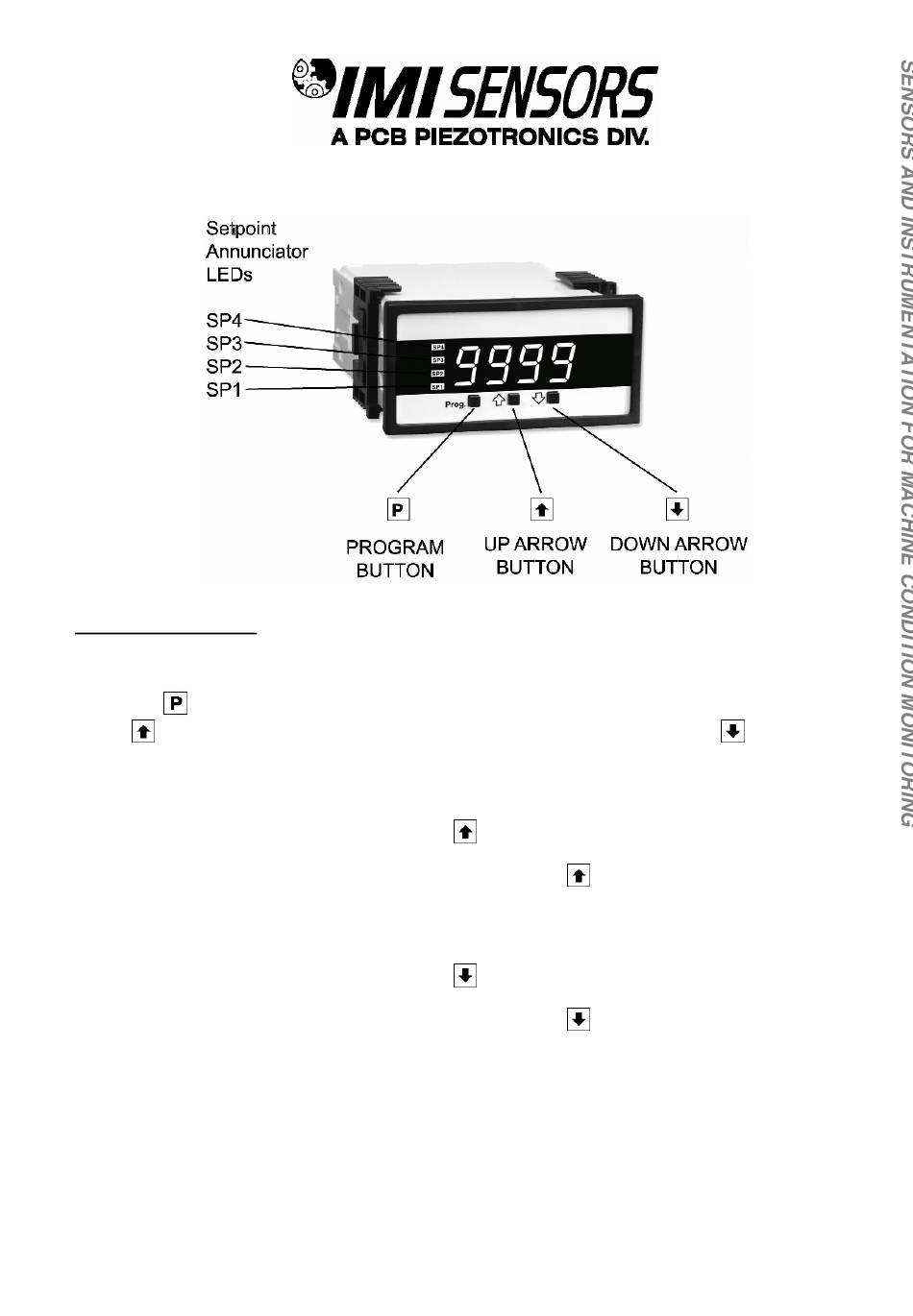

Controls and Indicators

Front Panel Buttons

  Program Button

The

button is used to move from one program step to the next. When pressed at the same time as the

button, it initiates the calibration mode. When pressed at the same time as the

the setpoint setting mode.

  Up Button

When in the operational display, pressing the

Valley (Highest and Lowest Readings.)

When in calibration mode or the setpoint setting mode the

the displayed parameter.

  Down Button

When in the operational display, pressing the

setting of setpoint 1,2,3,& 4.

When in calibration mode or the setpoint setting mode the

the displayed parameter.

button alone, allows you to view and reset the Peak and

button is used to increase the value of

button alone allows you to view, but not change, the

button is used to decrease the value of

button, it initiates

PAGE 5
