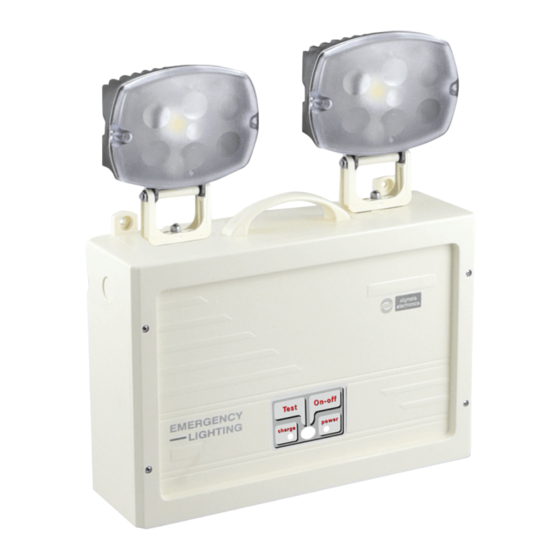

olympia electronics GRL-29/WL User Manual

SELF-TESTING NON-MAINTAINED EMERGENCY LUMINAIRE WITH WIRELESS COMMUNICATION
TECHNICAL CHARACTERISTICS
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERY (Pb)
Tx/Rx frequency range
Tx power
BATTERY PROTECTION
INDICATIONS - CONTROLS
CHARGING TIME
MINIMUM AUTONOMOUS DURATION
LIGHT SOURCE
EMERGENCY ILLUMINATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIALS
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
GENERAL
These luminaires are used indoors (ta 40 C)
where emergency light is needed. Each
luminaire must be connected permanently to
the mains power supply.
OPERATION DESCRIPTION
When the unit is connected to the mains power
supply (after connecting the battery) the
indicator LAMP FAULT – BATT. FAULT remains
OFF whereas the indicator POWER CHARGE
blinks to indicate that the batteries are charging.
When the batteries are fully charged this
indicator will light permanently. If this indicator
does not light then probably the battery has not
been connected. If the batteries are connected
and the indicator does not light then contact a
qualified service technician for assistance. The
charging procedure is monitored by a
microprocessor and is based on a 3 stage cycle
thus ensuring a fast and full charge of the
battery. The charge current is supplied by a high
efficiency switch mode power supply which
ensures perfect charging even during the
fluctuations of the mains power supply.
Page 1 from 6
POWER-CHARGE indicator, LAMP FAULT–BATT. FAULT indicator, TEST button
EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
Thank you for your trust in our products
Olympia Electronics - European manufacturer
(for LED MODULE Specifications see page 4)
GRL-29/WL
220-240V AC/50-60Hz
12.6W/13.1VA
12V/7Ah
868 - 870MHz
11dBm
From overcharge and deep discharge
24h
180 min
White LEDs
1760lm
IP42
5 to 40 C
Up to 95%
ABS/PC, PC
302 x 94 x 345 mm
3463gr.
3 years (1 year for the battery)
BATTERY CUTOFF
o
The unit enters this state during the power
supply failure and when the battery has been
fully discharged. In this state the luminaire
draws the least power from the battery in order
to prevent deep discharge.
MANUAL TESTING
Is accomplished by briefly (<1 sec.) pressing the
TEST button. This permits the user to test the
good operation of the luminaire's emergency
circuit. The unit simulates a power failure and
the lamps are lit using the batteries. This manual
test does not affect the automatic test.
DIMMING OPTION
When the luminaire is in emergency mode, with
corresponding pressings of the button, we can
choose the illumination of 100%, 50%, 33% or
turned off, either to increase the autonomy time
or not to consume the battery power
unnecessarily. This option is canceled when the
network is restored.
WIRELESS COMMUNICATION
The WL luminaire models have the ability to
communicate over the air with Olympia's
o
