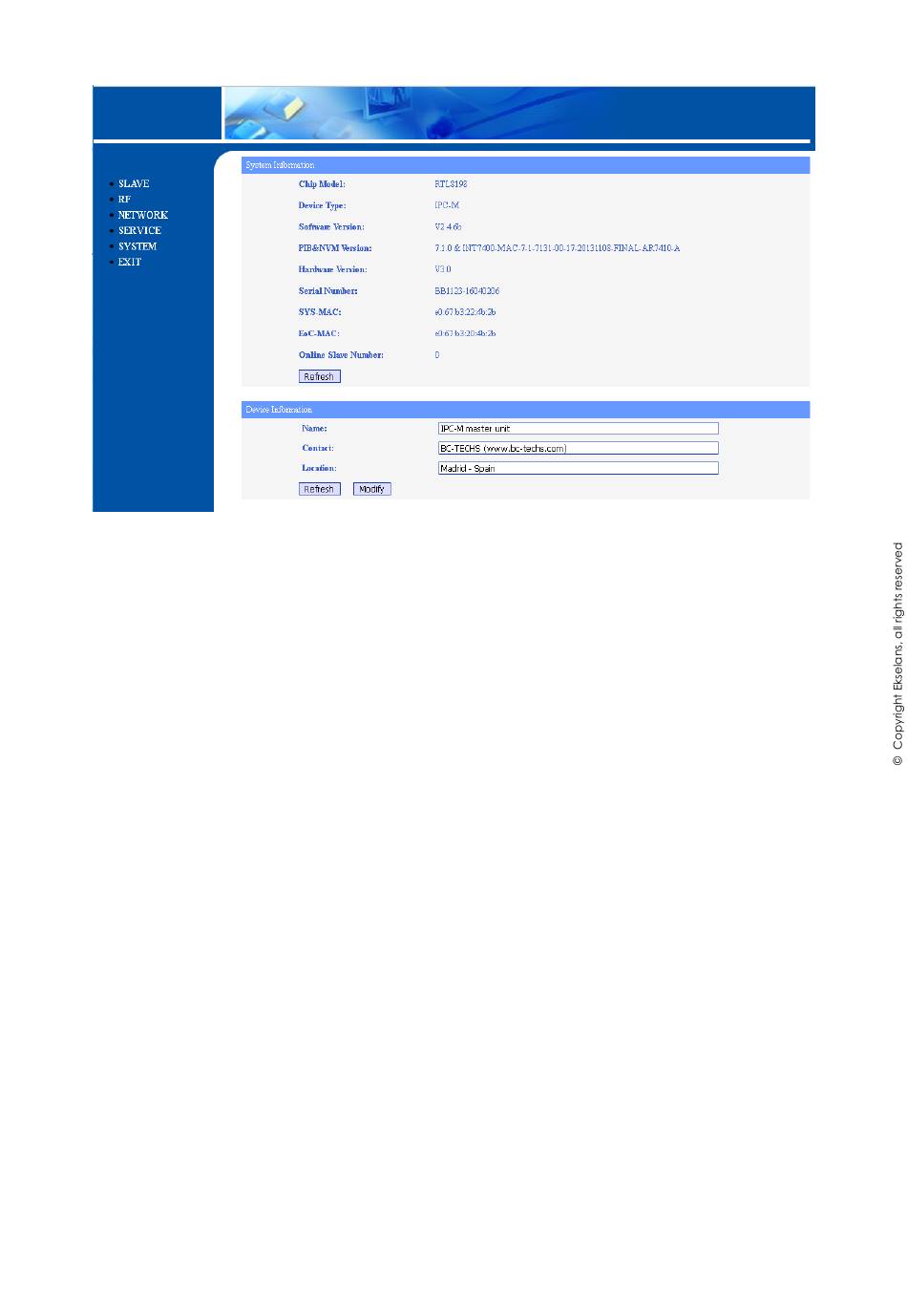

On the left side of the page, there is a menu showing the following items:
• SLAVE
• RF
• NETWORK
• SERVICE
• SYSTEM
• EXIT
On the right side, the screen shows the following information:
• System information: it includes
◦
Chip model
◦
Device type
◦
Software version
◦
PIB (Parameter Information Block) and NVM (Non-volatile Memory) files
versions
◦
HW versions
◦
Serial number
◦
MAC address of the main system block.
◦
MAC address of Ethernet over coaxial cable block.
◦
Number of online slave units (IPC-S).
• Device information: it includes
Master Unit EKOAX IPC-M
