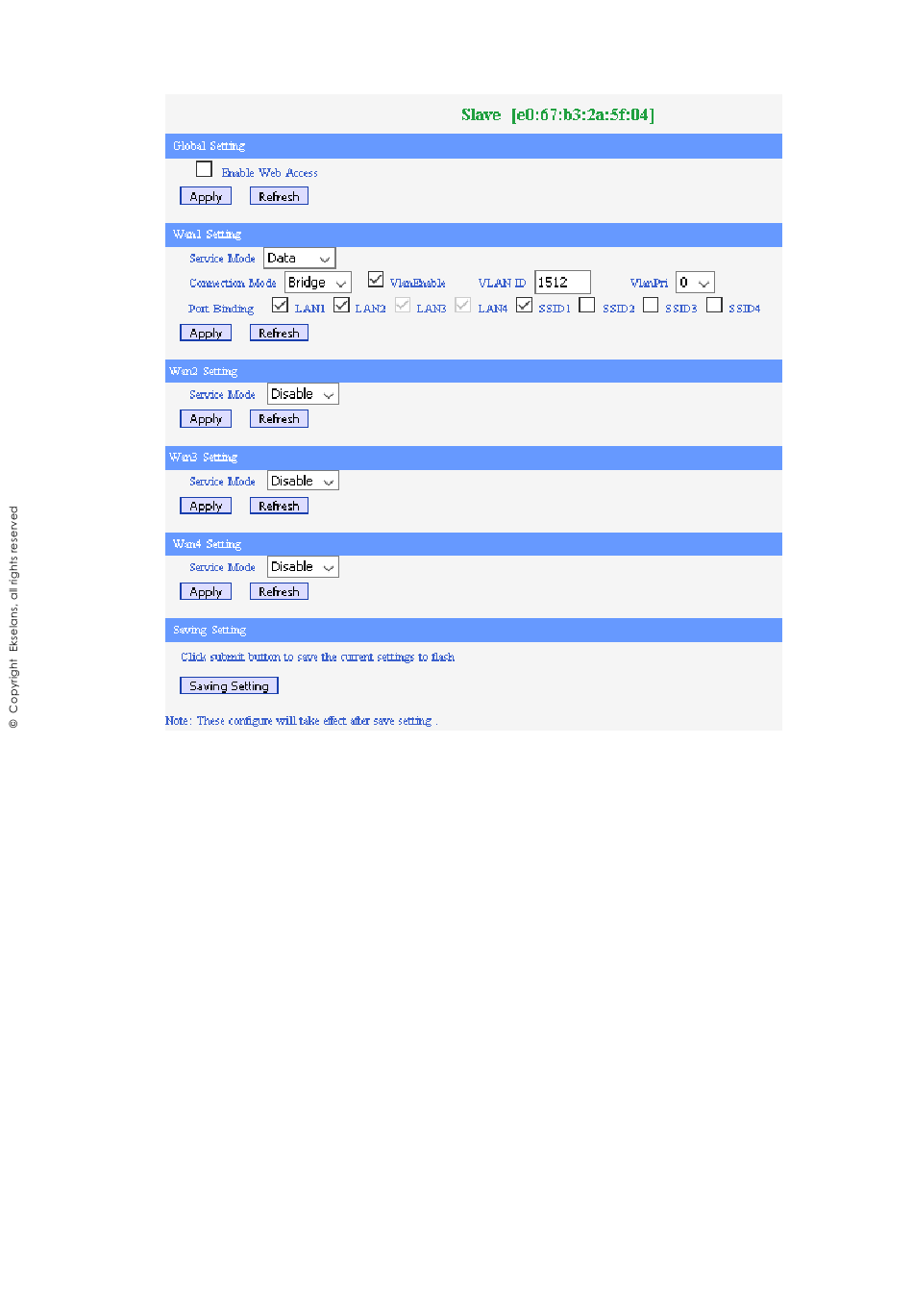

If Connection Mode is selected for a WAN business is selected, the Route Setting pane
appears for that WAN business. This pane displays a parameter called ConnType which
can be set to the following values:
• STATIC IP: If the connection type is a fixed IP address provided by your ISP, you
have to configure the IP Address, the sub-net mask, the gateway and the DNS
server addresses provided by your ISP, as it is shown in Picture.
• DHCP: If the connection type is a IP address provided via the DHCP protocol, the
Route Setting pane is displayed as it is shown on the Picture.
PPPoE: If the connection type is PPPoE, you have to configure the username and
•
password provided by your ISP. The Picture displays the pane shown.
To save the changes in the Route Setting panes, you have to click the Apply button and
then, to click the Saving Setting button in the Saving Setting pane.
