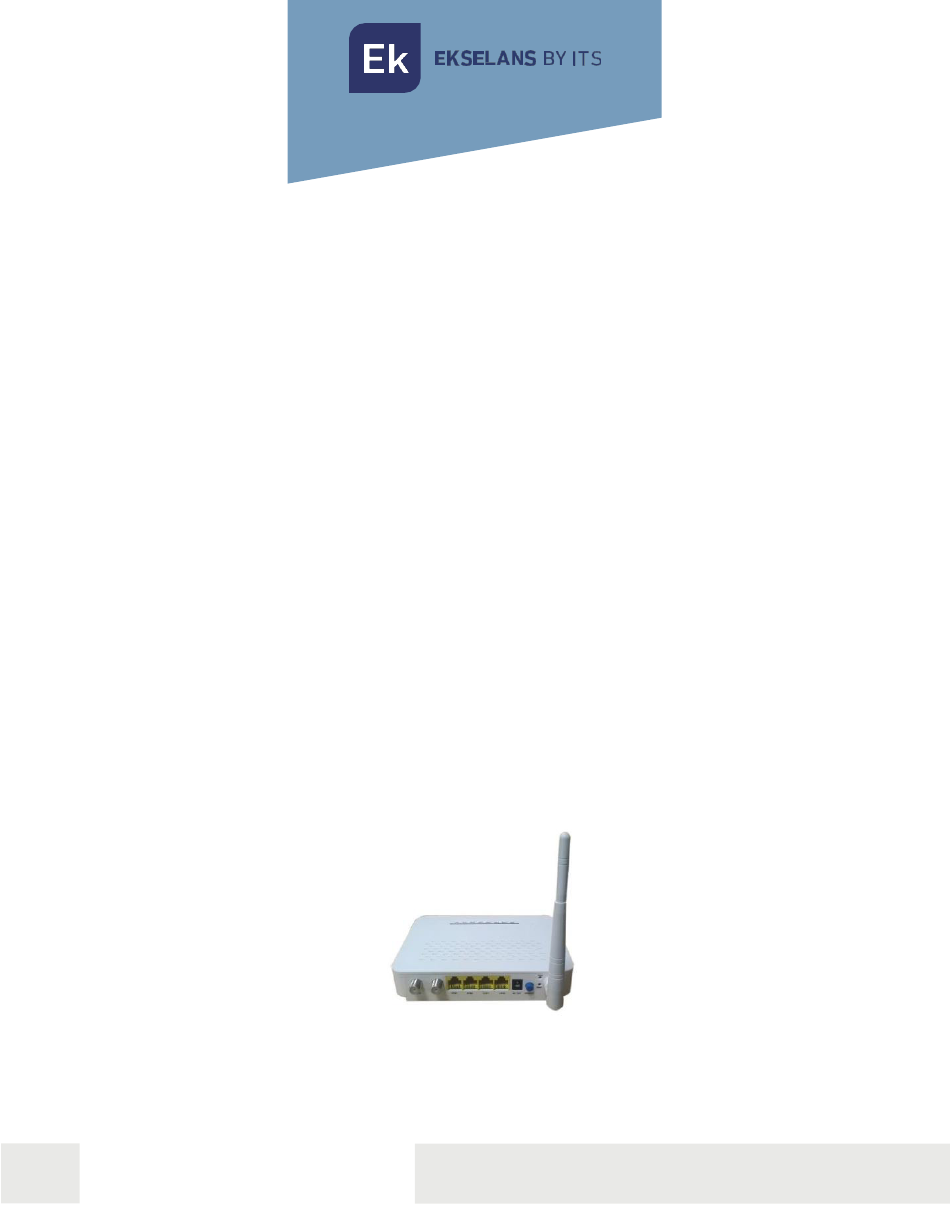

- Page 1 USER MANUAL IPC-S2 250017 SLAVE FOR EKOAX ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL IPC-S2 TABLE OF CONTENTS Installation ..............................................4 Packaging and accessories ..................................... 4 Hardware features ........................................... 5 IPC-S2 Installation ..........................................6 IPC-S2 connection ........................................... 6 Operating the IPC-S2 .......................................... 7 Prepare IPC-S2 for web management ................................7 Web Management Access ...................................... 8 Web management interface ...................................... - Page 3 USER MANUAL IPC-S2 UPNP Setup ............................................21 Advance NAT ............................................. 21 Telnet Server ............................................22 IGMP ................................................22 Policy Route ............................................23 Policy DNS ............................................23 System ................................................. 24 System Log............................................24 Save/Upgrade Setup ........................................ 25 Reboot ..............................................26 Admin Account Management .................................... 27 Diagnosis...............................................
-
Page 4: Installation
USER MANUAL IPC-S2 Installation The internet user unit by coaxial, model IPC-S2 allows you to perform in combination with the main headend unit, model IPC-M2 and M3, a fast and secure internet installation through the coaxial cable. In this chapter you will find the following information: •... -
Page 5: Hardware Features

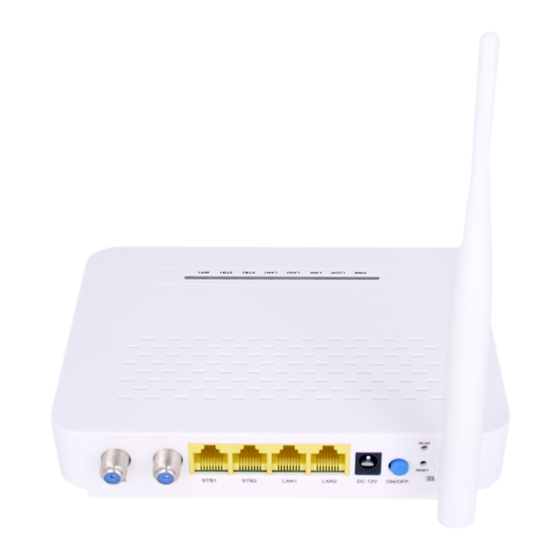

USER MANUAL IPC-S2 Hardware features Rear panel • RF IN “CABLE”: Radio frequency signal input. • RF OUT “TV”: Radio frequency signal output. • LAN1 y LAN2: Ethernet LAN ports to connect a PC. Can work in router and bridge mode •... -
Page 6: Ipc-S2 Installation
USER MANUAL IPC-S2 IPC-S2 Installation The user unit enables accessing the internet, either through a Wi-Fi connection or via connection to a PC to one of the LAN or STB ports of the equipment. It is important to bear in mind that the range of the Wi-Fi network will depend on the location of this user unit. -
Page 7: Operating The Ipc-S2
USER MANUAL IPC-S2 Operating the IPC-S2 Accessing the IPC-S2 slave device This chapter explains how to access and configure the IPC-S2 slave after completing the wiring as explained in the previous chapter. This chapter contains the following sections: • Preparation for IPC-S2 web management •... -
Page 8: Web Management Access
USER MANUAL IPC-S2 Perform a “ping” to the IPC's IP address ( by default 192.168.10.1). If the PC receives a correct response to the ping command, this will mean that the connection between the PC and the IPC is correct. Web Management Access Open an internet browser and enter the following IP address: http://192.168.10.1. -
Page 9: Web Management Interface
USER MANUAL IPC-S2 Web management interface The web management interface will allow for a quick configuration of different functions of the IPCs. Introduction The interface consists of three areas as shown in the previous image: Main menu area Sub menu area. Area to show the results. -
Page 10: Status
USER MANUAL IPC-S2 Status The “Status” section includes submenus which displays different WAN and LAN connection values. Device information Click on the “Device information” section in order to access the following screen: The model, functionality of the model in question, hardware version and software version will be displayed. -
Page 11: User Side Information
USER MANUAL IPC-S2 The page will display the status of the WAN connection. Displays the name of the current WAN connection, connection type, connection status, default gateway, IP address obtained, subnet mask, preferred DNS1 and DNS2. It will likewise display the connection values with the head-end, such as: attenuation, entry/exit, and noise levels. -
Page 12: Network
USER MANUAL IPC-S2 Network The operating parameters of both the WAN, LAN or WLAN (Wi-Fi) can be configured and managed from this menu. Broadband Setup The Network is configured by default. A new network can be changed, deleted or added. Different WAN connections can be configured to offer various services to users. - Page 13 USER MANUAL IPC-S2 • VLAN Enable: o Enable: Enable VLAN. o Disable: Disable VLAN. • VLAN ID: The VLAN assigned. • 802.1p: A priority to the VLAN, with 1 being the lowest and 7 highest is assigned. • Network Name: o TR069: The connection which is used for TR069.
-
Page 14: Lan Setup
USER MANUAL IPC-S2 • MTU: Packet size. • DHCP Option Enable: Enables an optional DHCP. • DHCP Option60: By default 600831STB. • Blind Port: Assignment of a port with the WAN service. The default WAN connection for all ports is in Router mode. If a new WAN connection is chosen in Bridge mode, a Router mode port can be assigned/unassigned. - Page 15 USER MANUAL IPC-S2 Note 1: In the event of changing the LAN IP addresses on the router while it is connected through a browser, the router will be disconnected. It will then be necessary to open a new connection using the new IP address and to enter once again.
-
Page 16: Wlan Setup
USER MANUAL IPC-S2 WLAN Setup In this section it is possible to activate / deactivate the WiFI network, define the wireless channels, type of operation. • Enable Wireless: Enable / disable WLAN. • Band: Wi-Fi protocol with which it is broadcasted. •... -
Page 17: Remote Management
USER MANUAL IPC-S2 Remote Management The protocol used by operators to remotely configure ADSL routers or cable modems can be enabled/disabled. User Number Limit Set a maximum user limit. Timer Setup The time can be configured in several ways. It is possible to do it manually. By default the NTP (Network Time Protocol) is not enabled in order to obtain the time automatically. -
Page 18: Security (Seguridad)
USER MANUAL IPC-S2 Security From this section the several types of security on the equipment can be configured. Denial Service The different types of protection can be selected By default: Dos Prevention, TCP/UDP PortScan, ICMP Smuft, Ping of Death, Also, we can select packages per Second and degree of protection (Low/High). URL Filtering Option which permits adding a filtering table for URLs. -
Page 19: Ip Filtering
USER MANUAL IPC-S2 IP Filtering The IP filtering can be enabled/disabled. Click the "Add" button to add the desired rules, then "Apply”. MAC Filtering The MAC filtering can be enabled/disabled. Click the “Add” button to add the desired rules, then "Apply”. ITS Partner O.B.S S.L ·... -
Page 20: Service
USER MANUAL IPC-S2 Service In the "service" section ports can be redirected or different parameters configured such as DDNS, UPNP Setup, among others. Port Forwarding The destination source address and origin source ports to redirect ports can be added. DDNS A Dynamic Domain Name System can be established if registered on the websites of the different providers and following the necessary steps. -
Page 21: Upnp Setup
USER MANUAL IPC-S2 UPNP Setup It allows us to activate the UPnP protocol. Universal Plug and Play (UPnP) is a network protocol that allows compliant devices to automatically set port forwarding rules for themselves. Whatever device that communicate with each other and share data over your network. Advance NAT Enables and disables different protocols. -
Page 22: Telnet Server
USER MANUAL IPC-S2 Telnet Server Enables Telnet access to the device. IGMP Enables to activate as IGMP proxy and IGMP Snooping for multicast package management. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 23: Policy Route
USER MANUAL IPC-S2 Policy Route These are team policy-based routing rules. If necessary, we can add to manually configure or modify existing ones. Policy DNS These are policy-based DNS rules for the computer. We can add if necessary to manually configure or modify existing ones. -
Page 24: System
USER MANUAL IPC-S2 System System maintenance menu that includes the options: System Log, Save/Upgrade Setup, Reboot, Admin Account Management, Diagnosis, Manual Inform, Language. System Log The "Enable Log" option can be selected to enable / disable the device's action log, including emergency indications, alerts, critical points, errors, warnings. -
Page 25: Save/Upgrade Setup
USER MANUAL IPC-S2 Save/Upgrade Setup From this tab a backup and reload (Backup file/Restore file), perform a default reset “Reset router to defaults:” or update the “Firmware image” system can be carried out. Also, this menu will show us the current version installed now, in our case the V2.0.5-X111. To upgrade we follow the next steps: Click Select the file... -
Page 26: Reboot
USER MANUAL IPC-S2 Then It will appear that the system is loading, we just have to wait for the process to finish. Be careful not to disconnect the device or leave it without supply voltage. Reboot This option enables a device reset. To that end click the "Reboot" button which will appear by selecting this option. -
Page 27: Admin Account Management
USER MANUAL IPC-S2 Admin Account Management Team management can be done with two different levels of access and therefore two different users. Choose the user in question and assign/modify the access keys for each of them. Also, is possible to add new users. -
Page 28: Language
USER MANUAL IPC-S2 Language Two languages can be selected, that is, English or Chinese. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 29: Installation Examples
USER MANUAL IPC-S2 Installation Examples ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 30: Features
USER MANUAL IPC-S2 Features Property Description Consumption <8W Power supply 12V/1A Dimensions 160×120×32 mm Working temperature 0℃～50℃ Storage temperature -40℃～85℃ Moisture 10%～90% non-condensing Storage humidity 10%～90% non-condensing ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·...
