- Page 1 USER MANUAL IPC M300 250019 Internet by coaxial ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL IPC M300 TABLE OF CONTENTS IPC M300............................................... 4 Installation Diagram..........................................4 Connection to the IPC M300......................................5 Interface................................................. 6 EoC Manage............................................... 6 CNU list..............................................7 CNU Query............................................10 Slave template........................................... 11 Template Apply. - Page 3 USER MANUAL IPC M300 Del User..............................................25 RF..................................................26 Level and Bandwidth......................................... 26 Advanced Setting..........................................27 Working Channel........................................... 27 Relay Settings........................................... 28 Output Level............................................28 Broadcast Storm Control......................................29 QoS................................................30 Logout.
-
Page 4: Ipc M300

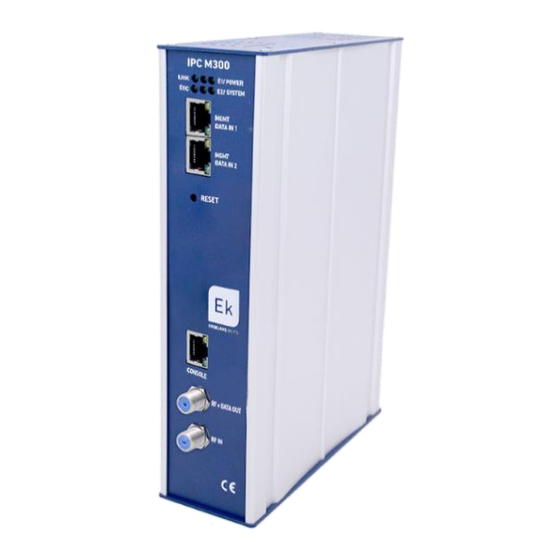

USER MANUAL IPC M300 IPC M300. -LED: LEDs specify the following; LINK if any equipment is connected, POWER if there is power, EOC if the RF chip is correct, SYSTEM the system status. E1 and E2 displays the traffic status of the DATA IN 1 and -MGMT/DATA IN X: This port enables the internet traffic to proceed and to be connected to the equipment via the IP - 192.168.1.254. -
Page 5: Connection To The Ipc M300
USER MANUAL IPC M300 Connection to the IPC M300. For connection to the IPC M300, follow the steps specified below: Connect to the IPC M300 using a network cable or wirelessly. Configure the PC's network adapter using a static IP: Open a web browser and go to the URL: http://192.168.1.254/ The username and password is admin / admin. -
Page 6: Interface
USER MANUAL IPC M300 Interface. EoC Manage. In this menu everything related to the slaves/user equipment which is connected to the master unit may be managed. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 7: Cnu List
USER MANUAL IPC M300 CNU list. Displays all the equipment connected to the master. If any template is configured, the enable template option may be selected and then to apply the template to the equipment that is wished to be configured. Furthermore, if an individual configuration is wished to be made in the Action column, click on the "Mana"... - Page 8 USER MANUAL IPC M300 Signal. Displays the slave's RF signal levels Edit. Enables to identify the slave and its basic information. Limits the equipment's overall bandwidth and in the Interface section the desired interfaces can be added or configured. The different menus - LAN, WLAN and if the equipment is AC - the WIFI 5G menu, then their respective options can be configured.
- Page 9 USER MANUAL IPC M300 WAN. More than one WAN may be added if it is required to make use of additional services otherwise the existing WAN will be modified by establishing as to whether the equipment operates in Bridge or Router mode.
-
Page 10: Cnu Query
USER MANUAL IPC M300 WLAN. In this section up to 4 SSID, with their respective parameters may be configured. Once these changes are completed, the changes will be implemented. CNU Query. We can perform a search for the slave we need according to the allowed parameters. ITS Partner O.B.S S.L ·... -
Page 11: Slave Template
USER MANUAL IPC M300 Slave template. The general template may be configured here which can be applied to the equipment. The previous section clearly describes how to implement a template and the different elements comprising same. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 12: Template Apply
USER MANUAL IPC M300 Template Apply. By default the template is deactivated as "close" and if wishing to use the template configure same as "open". ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 13: Whitelist Setting
USER MANUAL IPC M300 Whitelist Setting. By default "Whitelist function" is disabled. This allows all slaves to be added automatically and functional. If you want to restrict them from working directly, you must mark “On”. Wte List Setting: • Whitelist function: For the whitelist configuration to be applied, this option must be enabled. -
Page 14: Sync Configure
USER MANUAL IPC M300 Sync Configure. This option describes the configuration address. From master to slave: As its name implies the configuration which will prevail is that of the master over slave From slave to master: The configuration which prevails here is that of the slave. This mode is used when the master will not be utilised. -
Page 15: Update Configure
USER MANUAL IPC M300 Update Configure. This step must be performed slave by slave. It is also important to know that it can only be updated if the slave is in Route mode. slaves in bridge mode cannot be updated in this way. To update slaves remotely we will follow the following steps, keep in mind that you must add as many models as you need to update: 1. - Page 16 USER MANUAL IPC M300 o IP server: The IP of the PC or computer that we use as a server. We will have to install some program such as TFTP32 to use TFTP server. o File Name: Name of the file that we are going to use to update the slave. Full file name.
- Page 17 USER MANUAL IPC M300 5. Pressed “Update”. If you can not download the file by TFTP it may be a problem of the Windows firewall or that some parameter has been misplaced in "System update settings. 6. After a few minutes we restart the master and the new version of the slave will appear. We will see that it is done and open finished the TFTP download.
-
Page 18: System Management
USER MANUAL IPC M300 System management. System information. Provides information as regards the system, identifies the equipment with name and location. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 19: Save Configuration
USER MANUAL IPC M300 Save configuration. Menu for saving the latest settings. After each modification made in the master or in the configuration of the slaves stored in the master in it, menu "EoC Manage" must be saved. Otherwise the reboot will not dump the modified configuration. -
Page 20: Restore Default
USER MANUAL IPC M300 Restore default. Restores the master to factory default settings. Config Upgrade. We can import the file we create when we make a backup. By default, the file name is “rlos_cfg.install”. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 21: Firmware Update
USER MANUAL IPC M300 Firmware update. Select the new firmware in order to update the master. You can also upload "Export Settings" files. Note that the configuration loaded into the master comes from another master with the same model and version of FW. -
Page 22: Device Management
USER MANUAL IPC M300 Device management. Port. It shows us the status of the different interfaces of the equipment. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus... -
Page 23: Vlan
USER MANUAL IPC M300 VLAN. The create button enables adding the VLANs that the Master will process. If the VLANs are not added and linked to the ports, their traffic will not proceed. An IP for the master in each VLAN may be assigned. The ports are as follows;... -
Page 24: User Manage
USER MANUAL IPC M300 User manage. User list. It shows us the current users and the defined Role. Add User. Allows us to create users. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 25: Edit User
USER MANUAL IPC M300 Edit User. It allows us to modify the user's access password or change it to administrator use. The normal user will not have access to most options without being able to configure slaves. In case of losing access to the master by forgetting the password, the only way will be to perform a factory reset with the RESET button on the front. -
Page 26: Level And Bandwidth
USER MANUAL IPC M300 Level and Bandwidth. Podemos ajustar el nivel de señal de salida. Es recomendable subir el nivel de salida a 112. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 27: Advanced Setting
USER MANUAL IPC M300 Advanced Setting. Working Channel. Stabilisce la forma di comunicazione da padrone a schiavo. Se c'è qualche problema quando si tratta di collegare lo slave con il master, non fanno un collegamento, potrebbe essere dovuto a questa opzione. Se c'è... -
Page 28: Relay Settings
USER MANUAL IPC M300 Relay Settings. Allows us to modify the NMK. Output Level. It allows us to attenuate the RF output in case we have interference with other devices in the same working band. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 29: Broadcast Storm Control
USER MANUAL IPC M300 Broadcast Storm Control. When it detects too much Broadcast, it would block broadcast traffic to slaves. Protection to avoid overflowing slaves for example if Broadcast traffic is introduced by mistake or necessity to the master. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·... -
Page 30: Qos
USER MANUAL IPC M300 QoS. Selecting the different "QoS Type" will apply the configured parameters. • VLAN TAG: The priority is assigned according to configure the QOS in the slave. • TOS Bits: The priority is assigned as we configure the QOS in the slave. •...
