2.5.

Network Menu

The NETWORK menu provides the pages to check the status of the network interface, to
configure network, to manage VLANs and to configure IGMP and network filters.
2.5.1.

Status

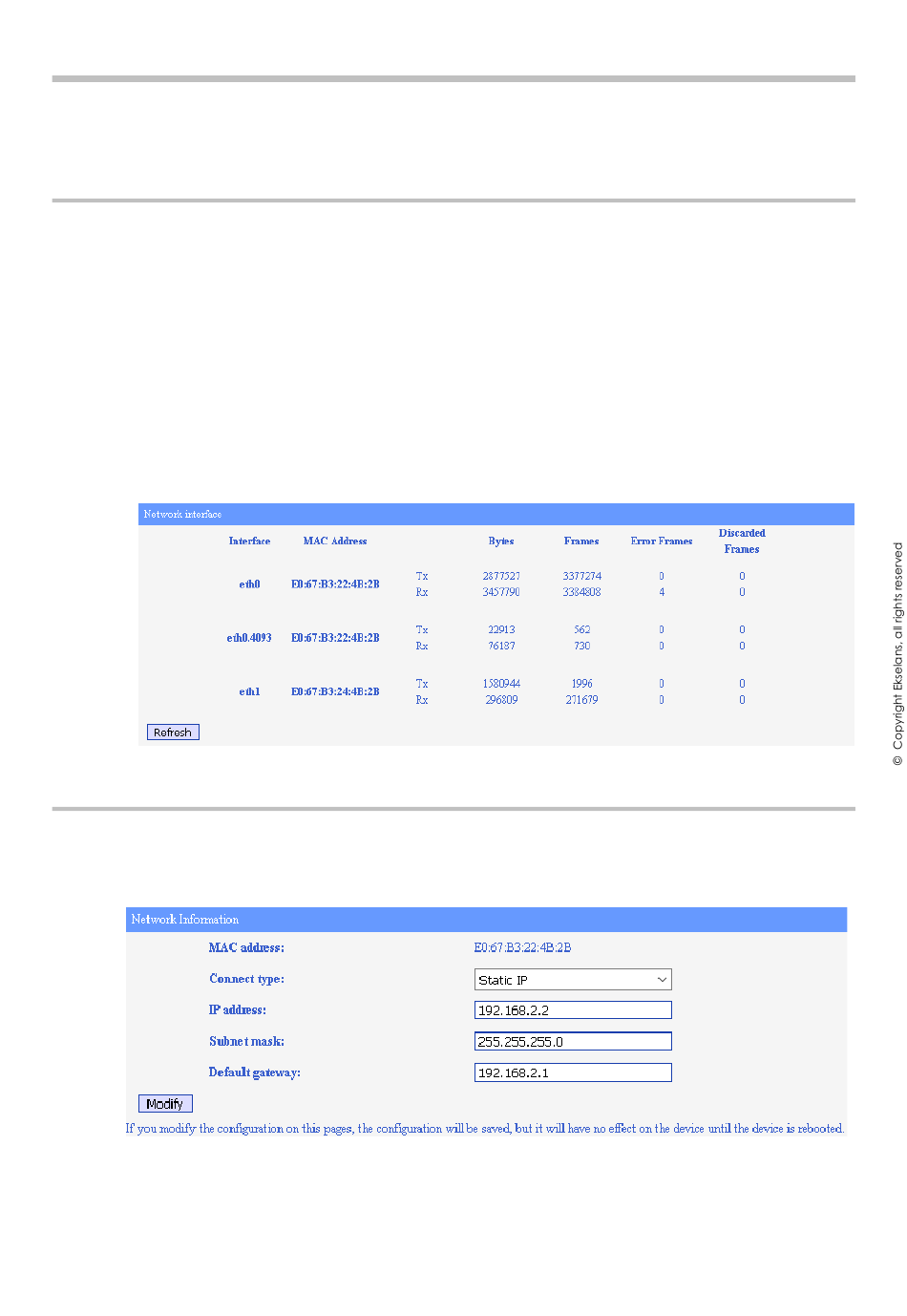

This menu is available in NETWORK→Status. The status information allows you to view the
following information for each of the network interfaces (WAN and LAN interfaces) of the
master unit:
• MAC address
• Received and transmitted data in bytes.
• Received and transmitted frames.
• Error frames
• Discarded frames.
Click Refresh button to update information.
2.5.2.

Config

If you select NETWORK→Config menu, the page shown in Picture is displayed.
Here you can configure:
