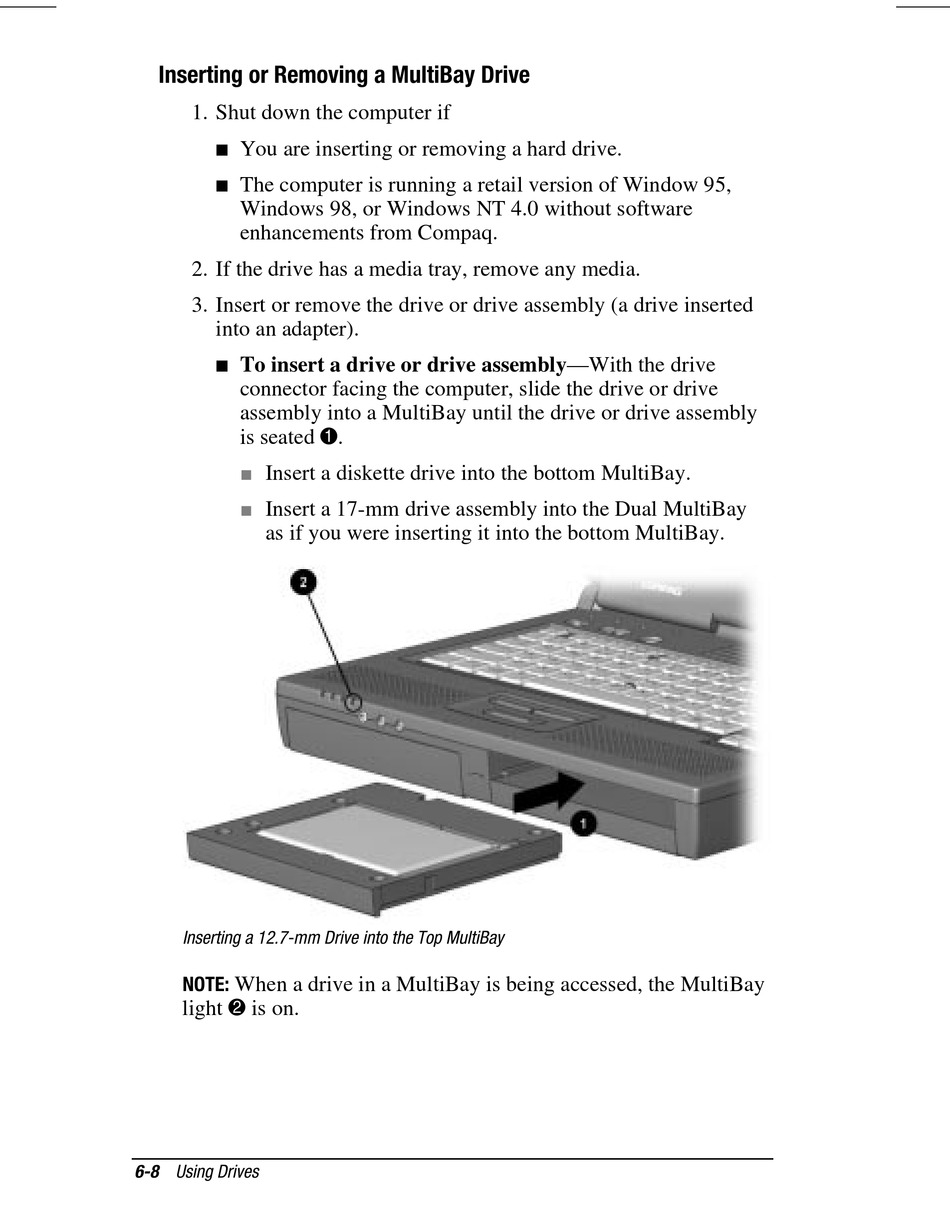

Compaq Armada E700 Series Reference Manual page 61

1. Shut down the computer if
You are inserting or removing a hard drive.
The computer is running a retail version of Window 95,
Windows 98, or Windows NT 4.0 without software
enhancements from Compaq.
2. If the drive has a media tray, remove any media.
3. Insert or remove the drive or drive assembly (a drive inserted
into an adapter).
To insert a drive or drive assembly—With the drive
connector facing the computer, slide the drive or drive
assembly into a MultiBay until the drive or drive assembly
is seated
Insert a diskette drive into the bottom MultiBay.
Insert a 17-mm drive assembly into the Dual MultiBay
as if you were inserting it into the bottom MultiBay.
When a drive in a MultiBay is being accessed, the MultiBay
light is on.
.
