Assemble the mount adapter to the camera body
and secure it by using the mount adapter screws (3
points).
4
Gently push the lever located at the bottom of the
pendant to lower it and connect the cable.
5

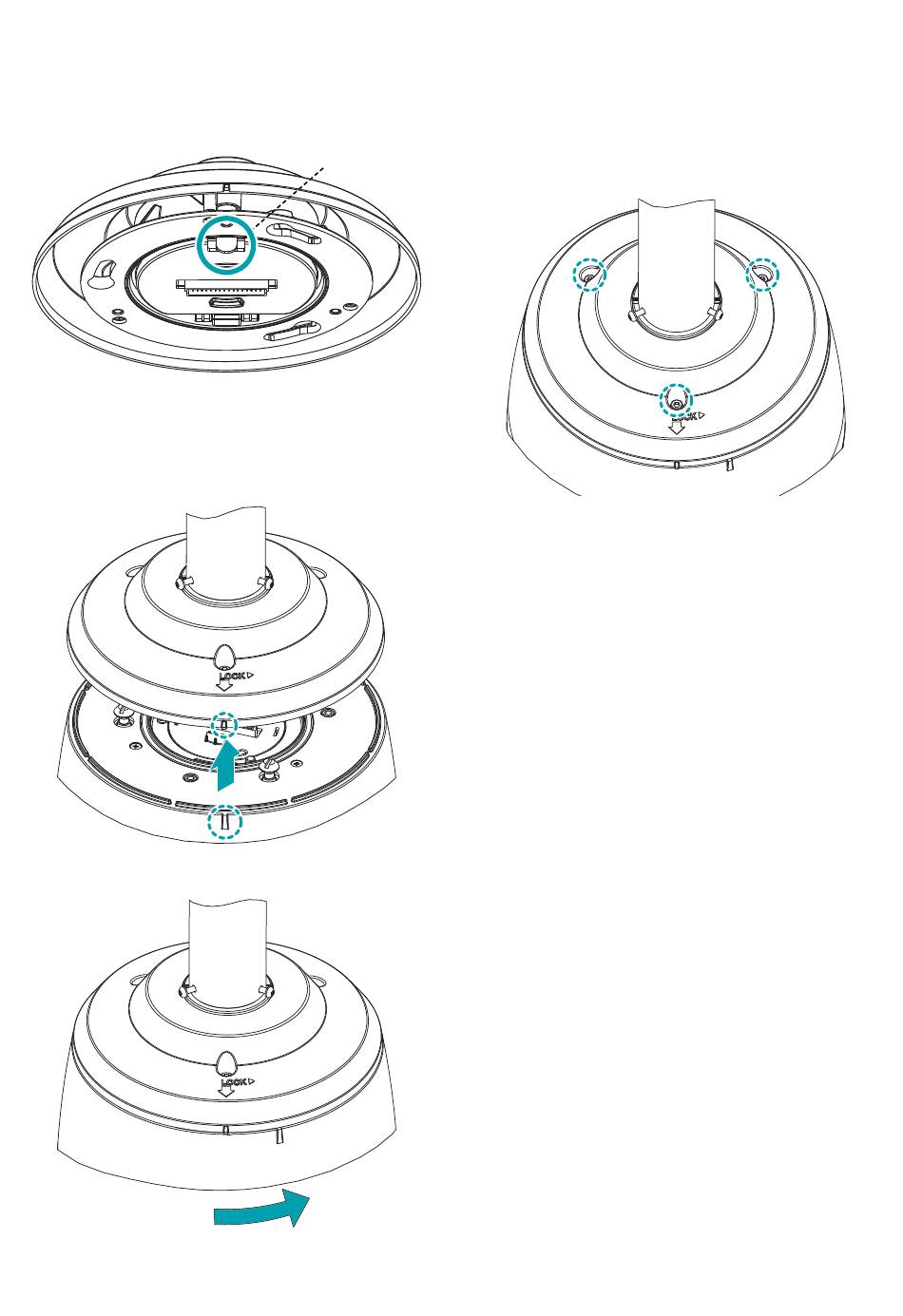

Assemble the pendant and the body by matching
the installation direction guides. Rotate the camera
body clockwise to position the reference mark in the
upper section and the lower section as shown in the
figure.
Lever
6
Use the allen wrench provided with the camera to
secure the 3 screws on the pendant.
7
Supply the power.
