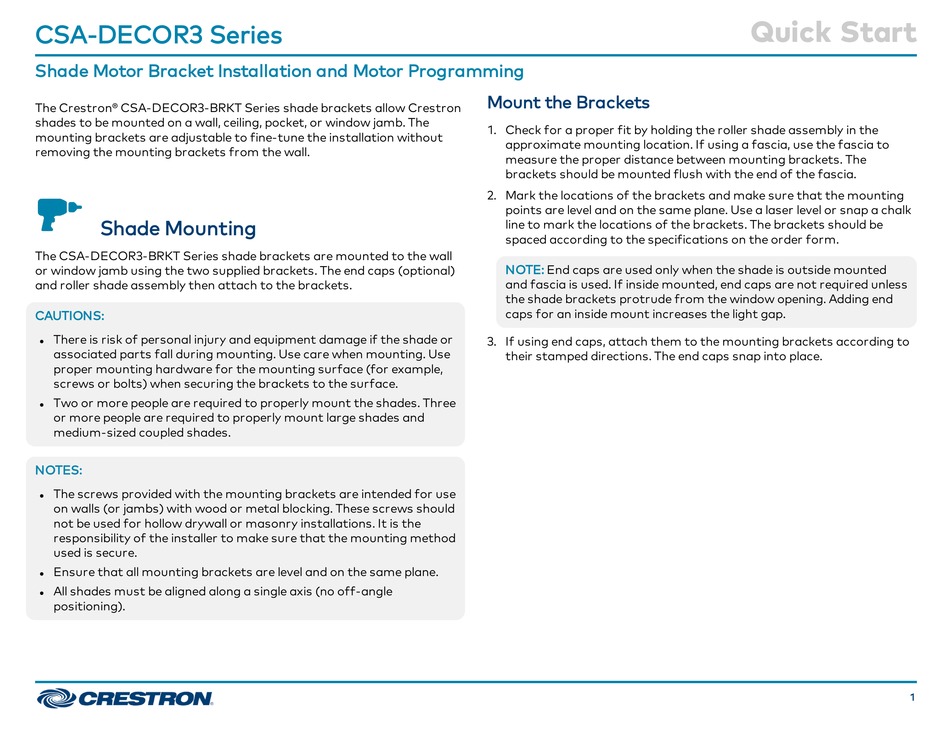

CSA-DECOR3 Series
Shade Motor Bracket Installation and Motor Programming
The Crestron® CSA-DECOR3-BRKT Series shade brackets allow Crestron
shades to be mounted on a wall, ceiling, pocket, or window jamb. The
mounting brackets are adjustable to fine-tune the installation without
removing the mounting brackets from the wall.
Shade Mounting
The CSA-DECOR3-BRKT Series shade brackets are mounted to the wall
or window jamb using the two supplied brackets. The end caps (optional)
and roller shade assembly then attach to the brackets.
CAUTIONS:
There is risk of personal injury and equipment damage if the shade or
l
associated parts fall during mounting. Use care when mounting. Use
proper mounting hardware for the mounting surface (for example,
screws or bolts) when securing the brackets to the surface.
Two or more people are required to properly mount the shades. Three
l
or more people are required to properly mount large shades and
medium-sized coupled shades.
NOTES:
The screws provided with the mounting brackets are intended for use
l
on walls (or jambs) with wood or metal blocking. These screws should
not be used for hollow drywall or masonry installations. It is the
responsibility of the installer to make sure that the mounting method
used is secure.
Ensure that all mounting brackets are level and on the same plane.
l
All shades must be aligned along a single axis (no off-angle
l
positioning).
Mount the Brackets
1. Check for a proper fit by holding the roller shade assembly in the
approximate mounting location. If using a fascia, use the fascia to
measure the proper distance between mounting brackets. The
brackets should be mounted flush with the end of the fascia.
2. Mark the locations of the brackets and make sure that the mounting
points are level and on the same plane. Use a laser level or snap a chalk
line to mark the locations of the brackets. The brackets should be
spaced according to the specifications on the order form.
NOTE:
End caps are used only when the shade is outside mounted
and fascia is used. If inside mounted, end caps are not required unless
the shade brackets protrude from the window opening. Adding end
caps for an inside mount increases the light gap.
3. If using end caps, attach them to the mounting brackets according to
their stamped directions. The end caps snap into place.
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSA-DECOR3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron CSA-DECOR3 Series

Summary of Contents for Crestron CSA-DECOR3 Series

  • Page 1 Shade Motor Bracket Installation and Motor Programming Mount the Brackets The Crestron® CSA-DECOR3-BRKT Series shade brackets allow Crestron shades to be mounted on a wall, ceiling, pocket, or window jamb. The 1. Check for a proper fit by holding the roller shade assembly in the mounting brackets are adjustable to fine-tune the installation without approximate mounting location.
  • Page 2 Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Outside Mount 4. Mount the brackets to the outside of the window frame (outside mount) or the inside of the window frame (inside mount). Use hardware that is appropriate for the mounting surface. Make sure the brackets are level and mounted to a flat surface.
  • Page 3 Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Mount the Roller Shade Assembly 4. Push the tab on the motor assembly into the hole in the motor bracket. When the shade is properly seated, the two clips spring down to secure the motor to the bracket.
  • Page 4 Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Adjust the Roller Shade Assembly Make sure that no obstructions exist near the window area that the shade could bump into while traveling (for example, latches and Once the roller shade assembly is mounted, make adjustments to level the cranks).
  • Page 5 Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Swap the Idler and Motor Ends Rotate the keyhole The roller shade assembly can be mounted so that the idler and motor 1. Using a Phillips screwdriver, remove the four screws holding the idler ends are located in the ends of the tube opposite where they were when mount in the left-hand bracket and then remove the idler mount.
  • Page 6 Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Rotate Keyhole: Right-Side Wall Mount to Ceiling Mount Rotate Keyhole: Right-Side Wall Mount to Left Side Wall Mount...

  • Page 7: Motor Wiring

    Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming Swap the Roller Shade Idler and Motor If the idler and motor brackets have been swapped, remove the motor Motor Wiring and idler from the tube and remount in the opposite ends, allowing the...

  • Page 8: Controls And Indicators

    Motor Programming The Crestron® digital CSM(I)-QMTDC shade motors are programmed locally using the buttons on the motor. The information in this guide serves as a detailed programming overview of the Crestron CSM (I)-QMTDC shade motors. NOTE: The procedures described in this document can also be performed remotely using a control system.
  • Page 9 After either the upper or lower limit is set, the motor automatically enters Limit Setup mode for the opposite limit. Follow the procedure in NOTE: For Crestron Horizontal Sheers, the lower limit is defined as the Set the Shade Limits to reassign limits.
  • Page 10 1. Put the infiNET EX gateway into Acquire mode from the unit itself or For Crestron Horizontal Sheers, the lower limit is defined as the point from Crestron Toolbox, as described in its manual at before the hem bar tilts.

  • Page 11: Led Diagnostics

    Quick Start CSA-DECOR3 Series Shade Motor Bracket Installation and Motor Programming LED Diagnostics 3. Once all devices have been acquired, take the gateway out of Acquire mode. Refer to the gateway’s manual for details. The LED flashes to provide a visual reference that the motor is operating normally or if it is in an error state.

  • Page 12: Troubleshooting

    Shade Motor Bracket Installation and Motor Programming Error State Troubleshooting Crestron CSM(I)-QMTDC motors display error codes using the red LED The following table provides corrective action for possible trouble on the interface. The LED flashes a pattern to indicate the error.
  • Page 13 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
