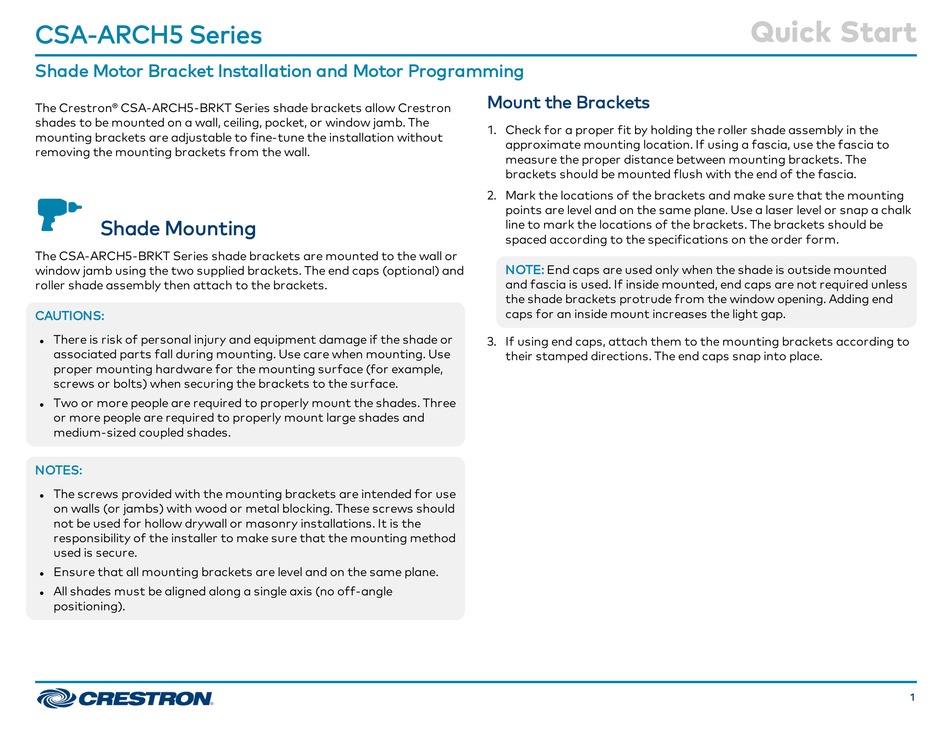

CSA-ARCH5 Series
Shade Motor Bracket Installation and Motor Programming
The Crestron® CSA-ARCH5-BRKT Series shade brackets allow Crestron
shades to be mounted on a wall, ceiling, pocket, or window jamb. The
mounting brackets are adjustable to fine-tune the installation without
removing the mounting brackets from the wall.
Shade Mounting
The CSA-ARCH5-BRKT Series shade brackets are mounted to the wall or
window jamb using the two supplied brackets. The end caps (optional) and
roller shade assembly then attach to the brackets.
CAUTIONS:
There is risk of personal injury and equipment damage if the shade or
l
associated parts fall during mounting. Use care when mounting. Use
proper mounting hardware for the mounting surface (for example,
screws or bolts) when securing the brackets to the surface.
Two or more people are required to properly mount the shades. Three
l
or more people are required to properly mount large shades and
medium-sized coupled shades.
NOTES:
The screws provided with the mounting brackets are intended for use
l
on walls (or jambs) with wood or metal blocking. These screws should
not be used for hollow drywall or masonry installations. It is the
responsibility of the installer to make sure that the mounting method
used is secure.
Ensure that all mounting brackets are level and on the same plane.
l
All shades must be aligned along a single axis (no off-angle
l
positioning).
Mount the Brackets
1. Check for a proper fit by holding the roller shade assembly in the
approximate mounting location. If using a fascia, use the fascia to
measure the proper distance between mounting brackets. The
brackets should be mounted flush with the end of the fascia.
2. Mark the locations of the brackets and make sure that the mounting
points are level and on the same plane. Use a laser level or snap a chalk
line to mark the locations of the brackets. The brackets should be
spaced according to the specifications on the order form.
NOTE:
End caps are used only when the shade is outside mounted
and fascia is used. If inside mounted, end caps are not required unless
the shade brackets protrude from the window opening. Adding end
caps for an inside mount increases the light gap.
3. If using end caps, attach them to the mounting brackets according to
their stamped directions. The end caps snap into place.
Quick Start
1
