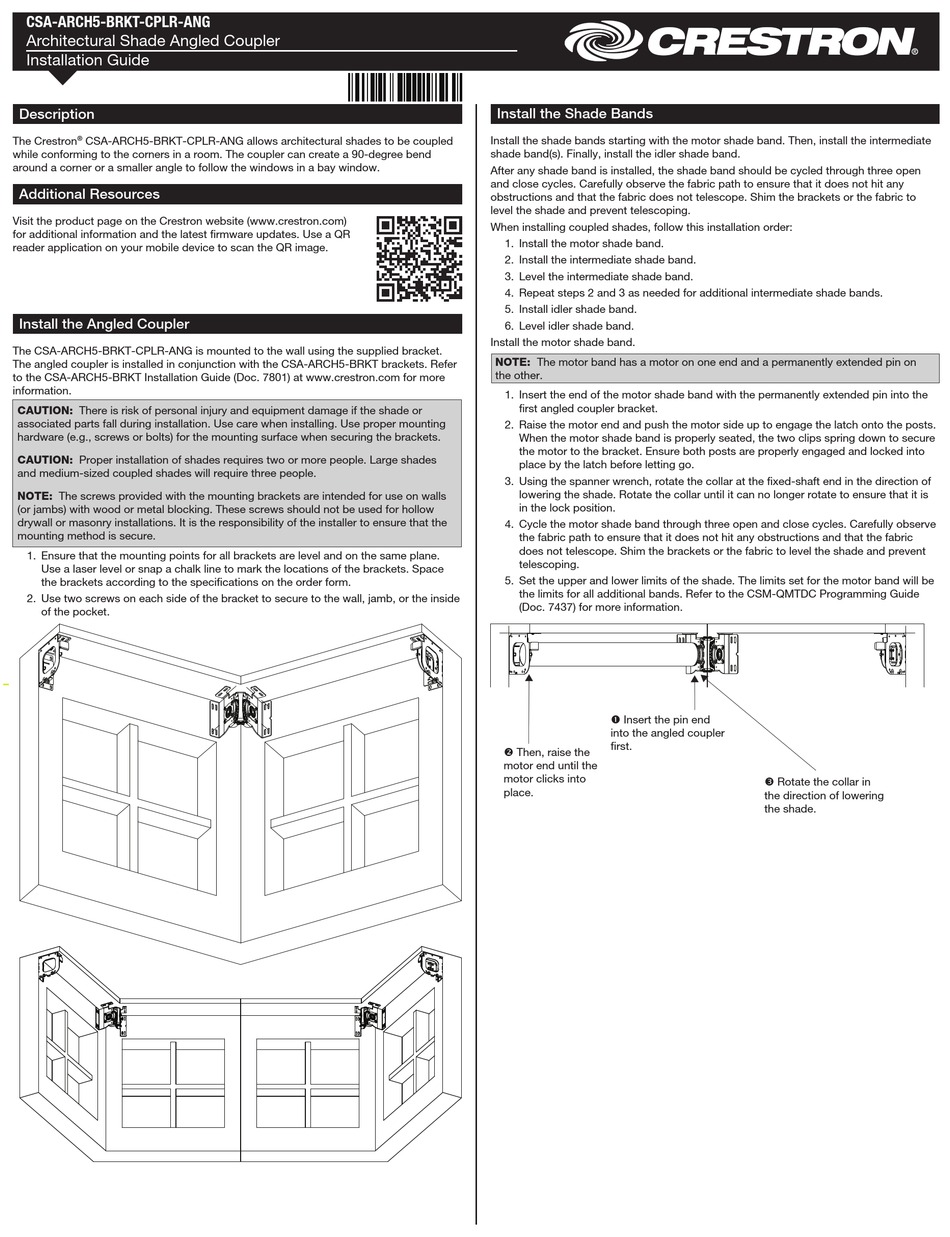

Crestron CSA-ARCH5-BRKT-CPLR-ANG Installation Manual

CSA-ARCH5-BRKT-CPLR-ANG
Architectural Shade Angled Coupler
Installation Guide
Description
The Crestron ® CSA-ARCH5-BRKT-CPLR-ANG allows architectural shades to be coupled
while conforming to the corners in a room. The coupler can create a 90-degree bend
around a corner or a smaller angle to follow the windows in a bay window.
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
Install the Angled Coupler
The CSA-ARCH5-BRKT-CPLR-ANG is mounted to the wall using the supplied bracket.
The angled coupler is installed in conjunction with the CSA-ARCH5-BRKT brackets. Refer
to the CSA-ARCH5-BRKT Installation Guide (Doc. 7801) at www.crestron.com for more
information.
CAUTION: There is risk of personal injury and equipment damage if the shade or
associated parts fall during installation. Use care when installing. Use proper mounting
hardware (e.g., screws or bolts) for the mounting surface when securing the brackets.
CAUTION: Proper installation of shades requires two or more people. Large shades
and medium-sized coupled shades will require three people.
NOTE: The screws provided with the mounting brackets are intended for use on walls
(or jambs) with wood or metal blocking. These screws should not be used for hollow
drywall or masonry installations. It is the responsibility of the installer to ensure that the
mounting method is secure.
1. Ensure that the mounting points for all brackets are level and on the same plane.
Use a laser level or snap a chalk line to mark the locations of the brackets. Space
the brackets according to the speci cations on the order form.
2. Use two screws on each side of the bracket to secure to the wall, jamb, or the inside
of the pocket.
Install the Shade Bands
Install the shade bands starting with the motor shade band. Then, install the intermediate
shade band(s). Finally, install the idler shade band.
After any shade band is installed, the shade band should be cycled through three open
and close cycles. Carefully observe the fabric path to ensure that it does not hit any
obstructions and that the fabric does not telescope. Shim the brackets or the fabric to
level the shade and prevent telescoping.
When installing coupled shades, follow this installation order:
1. Install the motor shade band.
2. Install the intermediate shade band.
3. Level the intermediate shade band.
4. Repeat steps 2 and 3 as needed for additional intermediate shade bands.
5. Install idler shade band.
6. Level idler shade band.
Install the motor shade band.
NOTE: The motor band has a motor on one end and a permanently extended pin on
the other.
1. Insert the end of the motor shade band with the permanently extended pin into the
rst angled coupler bracket.
2. Raise the motor end and push the motor side up to engage the latch onto the posts.
When the motor shade band is properly seated, the two clips spring down to secure
the motor to the bracket. Ensure both posts are properly engaged and locked into
place by the latch before letting go.
3. Using the spanner wrench, rotate the collar at the xed-shaft end in the direction of
lowering the shade. Rotate the collar until it can no longer rotate to ensure that it is
in the lock position.
4. Cycle the motor shade band through three open and close cycles. Carefully observe
the fabric path to ensure that it does not hit any obstructions and that the fabric
does not telescope. Shim the brackets or the fabric to level the shade and prevent
telescoping.
5. Set the upper and lower limits of the shade. The limits set for the motor band will be
the limits for all additional bands. Refer to the CSM-QMTDC Programming Guide
(Doc. 7437) for more information.
 Insert the pin end
into the angled coupler
rst.
 Then, raise the
motor end until the
motor clicks into
place.
 Rotate the collar in
the direction of lowering
the shade.
