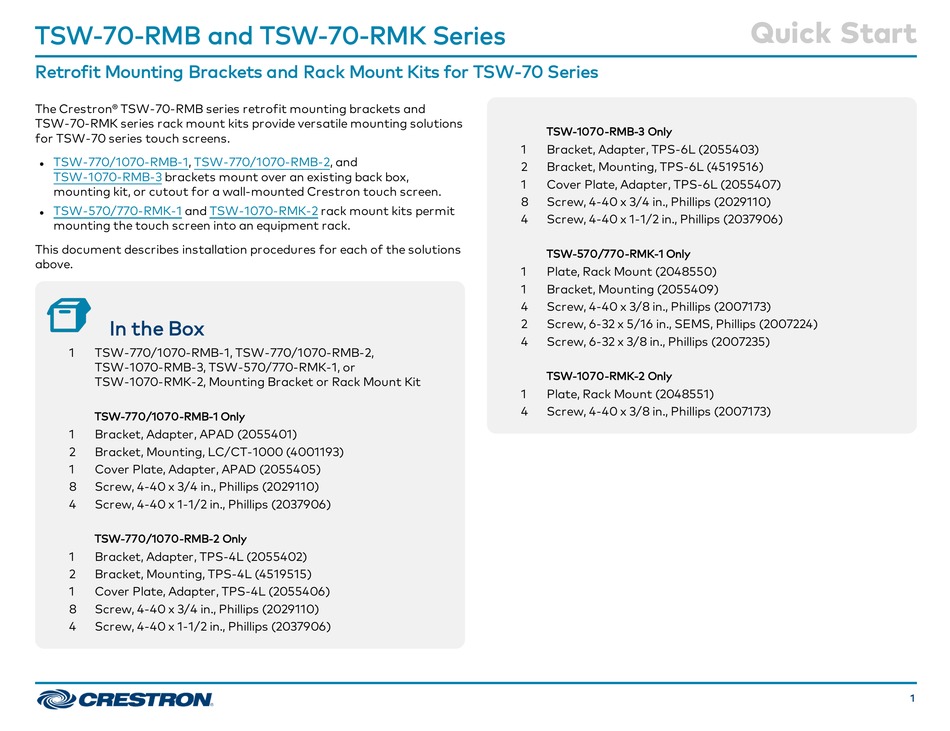

TSW-70-RMB and TSW-70-RMK Series
Retrofit Mounting Brackets and Rack Mount Kits for TSW-70 Series
The Crestron® TSW-70-RMB series retrofit mounting brackets and
TSW-70-RMK series rack mount kits provide versatile mounting solutions
for TSW-70 series touch screens.
TSW-770/1070-RMB-1, TSW-770/1070-RMB-2, and
l
TSW-1070-RMB-3
brackets mount over an existing back box,
mounting kit, or cutout for a wall-mounted Crestron touch screen.
TSW-570/770-RMK-1
and
TSW-1070-RMK-2
l
mounting the touch screen into an equipment rack.
This document describes installation procedures for each of the solutions
above.

In the Box

1
TSW-770/1070-RMB-1, TSW-770/1070-RMB-2,
TSW-1070-RMB-3, TSW-570/770-RMK-1, or
TSW-1070-RMK-2, Mounting Bracket or Rack Mount Kit
TSW-770/1070-RMB-1 Only
1
Bracket, Adapter, APAD (2055401)
2
Bracket, Mounting, LC/CT-1000 (4001193)
1
Cover Plate, Adapter, APAD (2055405)
8
Screw, 4-40 x 3/4 in., Phillips (2029110)
4
Screw, 4-40 x 1-1/2 in., Phillips (2037906)
TSW-770/1070-RMB-2 Only
1
Bracket, Adapter, TPS-4L (2055402)
2
Bracket, Mounting, TPS-4L (4519515)
1
Cover Plate, Adapter, TPS-4L (2055406)
8
Screw, 4-40 x 3/4 in., Phillips (2029110)
4
Screw, 4-40 x 1-1/2 in., Phillips (2037906)
rack mount kits permit
TSW-1070-RMB-3 Only
1
Bracket, Adapter, TPS-6L (2055403)
2
Bracket, Mounting, TPS-6L (4519516)
1
Cover Plate, Adapter, TPS-6L (2055407)
8
Screw, 4-40 x 3/4 in., Phillips (2029110)
4
Screw, 4-40 x 1-1/2 in., Phillips (2037906)
TSW-570/770-RMK-1 Only
1
Plate, Rack Mount (2048550)
1
Bracket, Mounting (2055409)
4
Screw, 4-40 x 3/8 in., Phillips (2007173)
2
Screw, 6-32 x 5/16 in., SEMS, Phillips (2007224)
4
Screw, 6-32 x 3/8 in., Phillips (2007235)
TSW-1070-RMK-2 Only
1
Plate, Rack Mount (2048551)
4
Screw, 4-40 x 3/8 in., Phillips (2007173)
Quick Start
1
