Crestron UC-BRKT-100-Z-ASSY Quick Start

UC-BRKT-100-Z-ASSY

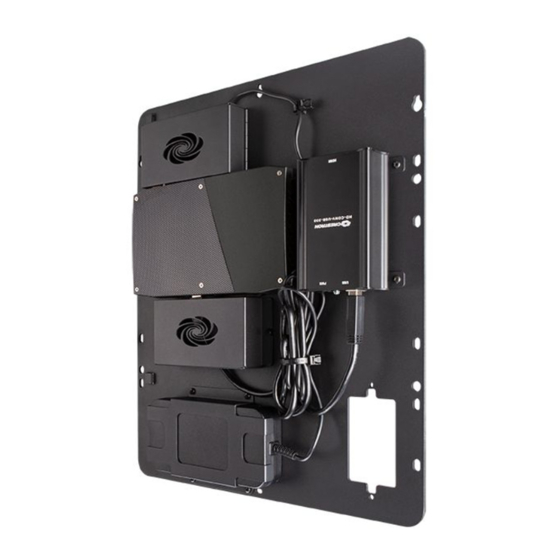

UC Engine Assembly
The UC-BRKT-100-Z-ASSY simplifies installation of a Crestron® Flex UC conference system, providing all the necessary components connected and
mounted on a single VESA® compliant mounting bracket. The bracket mounts behind a display device in a conference room or directly to drywall
using the included anchors. The UC-BRKT-100-Z-ASSY is intended for use with the M-Series, B-Series, and C-Series of Crestron Flex conference
systems. For more information, visit www.crestron.com/flex.
Check the Box
Item
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (P/N 2052565)
Key, Anchor (P/N 4529654)
Bit, Spanner, #6 (P/N 2052847)
Screw, 6-32 x 3/8 in., Undercut Head, Spanner (P/N 2052846)
Screw, 8-AB x 1-1/2 in., Pan Head, Combo (P/N 2052567)
Power Cord (P/N 2053985)
Tie Wrap (P/N 2047935)
Qty
2
1
1
2
2
1
4
Install the Wall Bracket Assembly
The wall bracket can be mounted to VESA compliant display devices or building structure. Anchors and screws are also supplied for installation on
walls 3/8 in. to 3/4 in. thickness.
NOTES:
• The integrated cable tie wraps are reusable. Take care to avoid damage to the cable tie wraps.
•
The wall bracket assembly includes an opening and pass through screw holes for placement over a single gang US electrical wall box that can
be covered by a decorative wall plate. If the wall plate opening will be positioned over an electrical wall box, longer screws will be needed to
secure the decorative wall plate to the electrical box. Do not attempt to secure the wall bracket assembly with the wall plate opening screws.

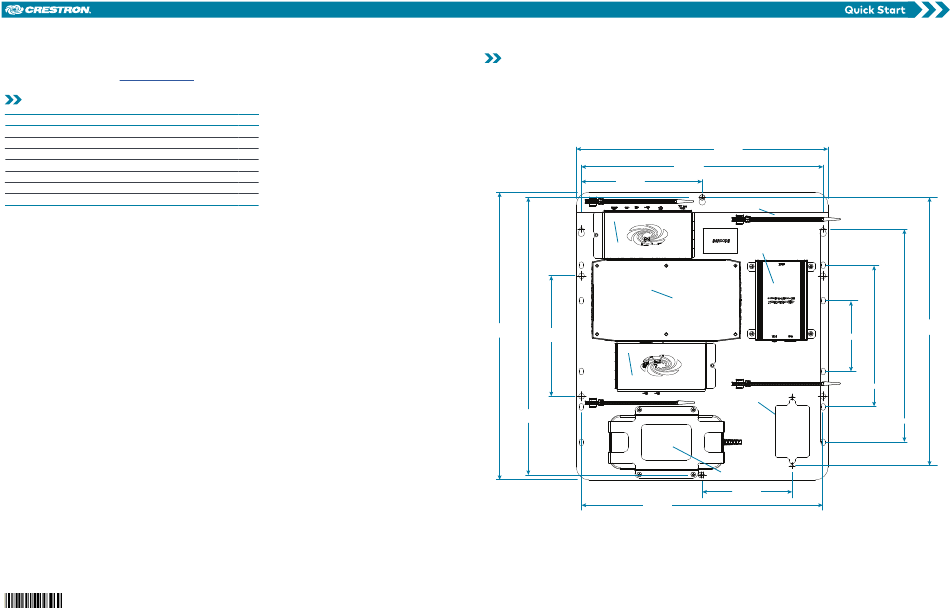

UC-BRKT-100-Z-ASSY (connecting cables not shown)
7.00 in.
(178 mm)
Connector Cover
16.00 in.
6.70 in.
(406 mm)
(170 mm)
Connector Cover
15.44 in.
(392 mm)
13.42 in.
(341 mm)
14.00 in.
(356 mm)
13.45 in.
(342 mm)
Reusable Cable Tie Wrap (x4)
HD-CONV-USB-200
UC-ENGINE-Z
100 mm
Wall Plate Opening
Power Pack
5.00 in.
(127 mm)
14.92 in.
(378 mm)
200 mm
300 mm
