Crestron CAEN-UMP Installation Manual

Introduction

Crestron Universal Mounting Plates (CAEN-UMP Series)
are a complete line of accessory plates, which allow
mounting of non-Crestron equipment to any Crestron
Automation Enclosure (CAEN-Series). Third-party
products such as phone and alarm systems can be
mounted to these plates within an enclosure. The
advantage to using the CAEN-UMP is that a variety of
sizes are available and each plate occupies the same area
as one, two or four Crestron lighting modules (CLX-
Series). The size corresponds to the number of module
spaces and their arrangement within the enclosure. For
example, CAEN-UMP2x2 occupies four module positions
and CAEN-UMP1x1 occupies one module position. The
others (CAEN-UMP2x1 and 1x2) occupy two module
positions. Refer to the illustration on this page for an
example of plate location and orientation within a double-
wide enclosure. The table beneath the illustration lists the
dimensions and weight for each CAEN-UMP model.

Installation

The CAEN-UMP must be mounted in accordance with all
national and local codes.
NOTE: Adhere to Class 1 versus Class 2 wiring
requirements when considering the equipment
attached to the CAEN-UMPs in an enclosure.
NOTE: Third-party equipment attached to a
CAEN-UMP within a Crestron Automated Enclosure
should not be considered part of the Crestron system.
Use the four screws (8Bx1/4", supplied) to attach a
CAEN-UMP to an enclosure. Crestron recommends that
the keyholes on the plates be located toward the outer
edges of the enclosure as shown in the drawing on this
page. As a result, the flanges of the plates do not overlap
each other when positioning any combination of CAEN-
UMP2x1s, CAEN-UMP1x1s, or lighting modules side-
by-side in an enclosure.
Further Inquiries
If after reviewing this guide, you cannot locate specific
information or have questions, please take advantage of
Crestron's award winning customer service team. Call:
•
In the US and Canada, call Crestron's corporate
headquarters at 1-888-CRESTRON
[1-888-273-7876] or 1-201-767-3400.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
CAEN-UMP – Universal Mounting Plates

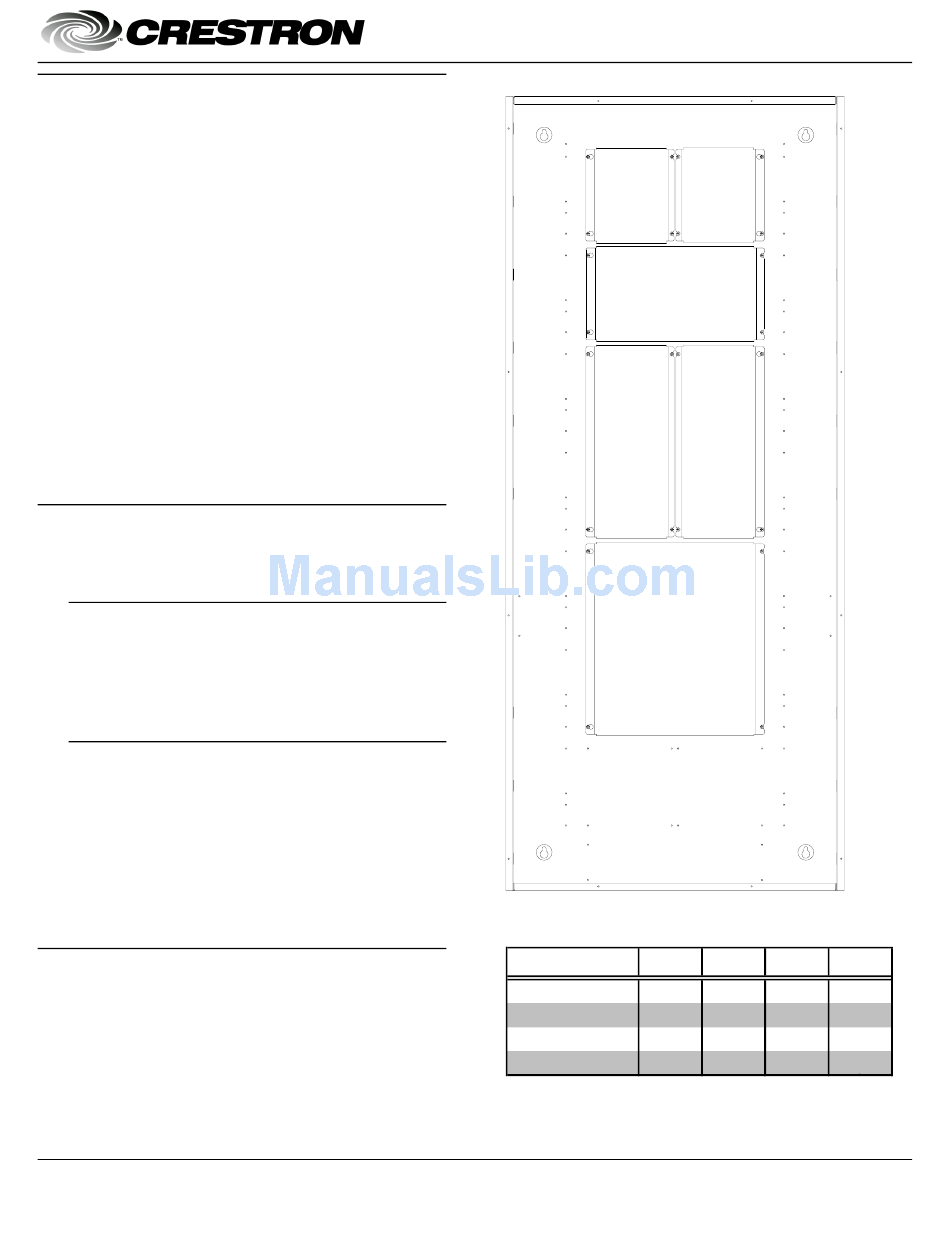

Example of CAEN-UMP Location and Orientation
Universal Mounting Plate Dimensions & Weight
CAEN-UMP
Height
Width
Depth
Weight
Dimensions are provided in inches, edge to edge.
Weight is provided in ounces.
1x1 1x1
1x2
2x1 2x1
2x2
2x2 2x1 1x2
1 1
15 15 7
/ /
8 8
15
14 6 / 14
16
5 5
/ /
8 8
22 .6 12 .0 12 .4
Installation Guide – DOC. 5981
Specifications subject to
change without notice.
1x1
7 7
7
/ /
16 16
15
6 /
16
5 5
/ /
8 8
6 .6
07.02
