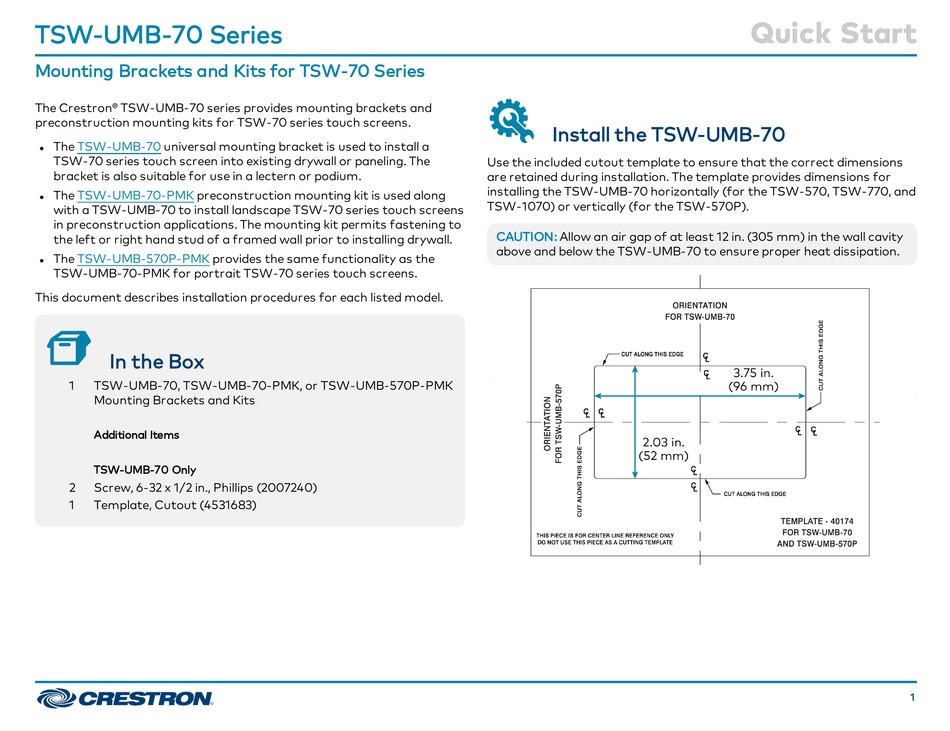

Crestron TSW-UMB-70 Series Quick Start

TSW-UMB-70 Series
Mounting Brackets and Kits for TSW-70 Series
The Crestron® TSW-UMB-70 series provides mounting brackets and
preconstruction mounting kits for TSW-70 series touch screens.

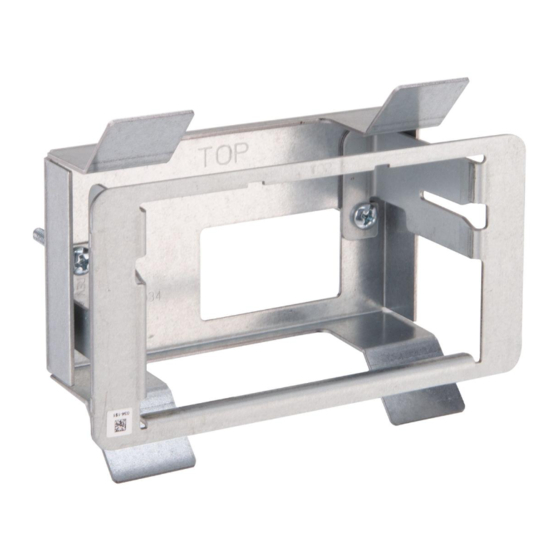

The TSW-UMB-70 universal mounting bracket is used to install a
l
TSW-70 series touch screen into existing drywall or paneling. The
bracket is also suitable for use in a lectern or podium.
The TSW-UMB-70-PMK preconstruction mounting kit is used along
l
with a TSW-UMB-70 to install landscape TSW-70 series touch screens
in preconstruction applications. The mounting kit permits fastening to
the left or right hand stud of a framed wall prior to installing drywall.
The TSW-UMB-570P-PMK provides the same functionality as the
l
TSW-UMB-70-PMK for portrait TSW-70 series touch screens.
This document describes installation procedures for each listed model.
In the Box
1 TSW-UMB-70, TSW-UMB-70-PMK, or TSW-UMB-570P-PMK
Mounting Brackets and Kits
Additional Items
TSW-UMB-70 Only
2 Screw, 6-32 x 1/2 in., Phillips (2007240)
1 Template, Cutout (4531683)
Install the TSW-UMB-70
Use the included cutout template to ensure that the correct dimensions
are retained during installation. The template provides dimensions for
installing the TSW-UMB-70 horizontally (for the TSW-570, TSW-770, and
TSW-1070) or vertically (for the TSW-570P).
CAUTION: Allow an air gap of at least 12 in. (305 mm) in the wall cavity
above and below the TSW-UMB-70 to ensure proper heat dissipation.
Quick Start
1
