Instruction Manual
Website:
www.perlesmith.com

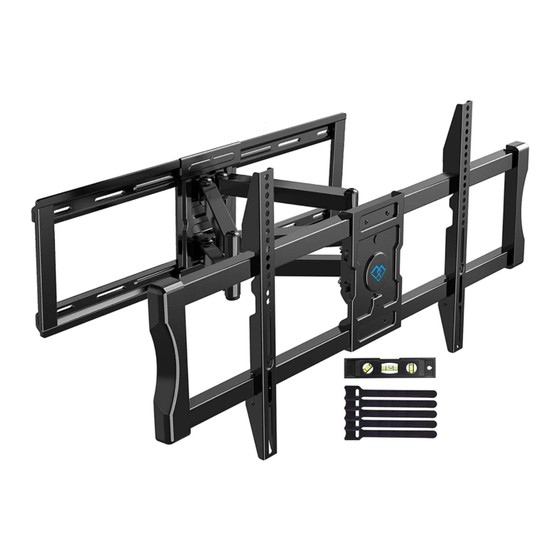

TV Wall Mount
Model:PSXF3
Thank you for choosing this Perlesmith product! At Perlesmith
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.perlesmith.com/pages/reviews if
you are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
supportus@perlesmith.com (US/CA/DE/UK/FR/IT/ES/AU)
V1.0
Advertisement
Related Manuals for Perlesmith PSXF3
Summary of Contents for Perlesmith PSXF3
- Page 1 Instruction Manual V1.0 Model:PSXF3 Thank you for choosing this Perlesmith product! At Perlesmith we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.perlesmith.com/pages/reviews if you are satisfied.
-
Page 2: Important Safety Information
Minimum VESA pattern: 200mm/8 in.(W)x100mm/4 in.(H) If your TV VESA is greater than 800x400 mm/31x16 in. or less than VESA 200x100mm/8x4in., this mount is NOT compatible. If this mount is NOT compatible, please contact customer service at supportus@perlesmith.com to find a compatible mount. - Page 3 DO NOT support line at install into 1-800-556-6806 or drywall alone customer service at Wood Studs Solid Concrete supportus@perlesmith.com (with Drywall) or Concrete Block Tools Needed (Not lncluded) Stud Finder Tape Measure Pencil Drill Hammer in.(5.5 mm) 3/8 in.(10mm)
- Page 4 Bolts [Only one bolt size fits your TV] Note: The bolts are shown in accordance with the actual size M6 x 15mm M6 x 35mm [D1] [D2] M8 x 15mm M8 x 25mm [E1] [E2] M8 x 35mm M8 x 50mm [E3] [E4] Supplied Parts and Hardware for Step 2...
- Page 5 Washer CAUTION! These anchors are for Wall concrete or brick walls Anchor ONLY. DO NOT use them in drywall or wood studs. Supplied Parts and Hardware for Step 3 to Step 6 Front Support Arm Assembly Bolt Bolt Allen Key [F1] [F2] Step 1 Secure the TV Brackets to TV...
- Page 6 Note: If necessary, the spacers can be used in multi-layer. If the installation fails after trying various methods, please contact customer service at supportus@perlesmith.com CAUTION: Ensure the TV brackets [03] are EQUALLY CENTERED on your TV AND securely fastened in place.
- Page 7 Option C (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. D1/E1 D2/E2/E3/E4 C1/C2/C3 Alternate Spacer Setups Option D For cable interference or inset holes, use spacers [06] to create extra space between the TV and TV brackets C1/C2/C3 D2/E2/E3/E4 Alternate Spacer Setups...
- Page 8 Step 2 Attach the Wall Plate [01] to Wall For wood stud installation, follow STEP 2A For concrete installation, follow STEP 2B Step 2A Wood Stud Option WARNING: ●Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate.
- Page 9 2A-3 Drill 4 pilot holes using a 7/32 in.(5.5 mm) diameter drill bit. Make sure the depth is not less than 2 9/16 in.(65mm). 2 9/16 in.(65mm) ø7/32 in.(5.5 mm) 2A-4 Install the wall plate using lag screws [A1] and washer [A2]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate.
- Page 10 2B-1 Position the wall plate template [04] at your desired height, level the wall plate template and mark the pilot hole locations. 2B-2 Drill 6 pilot holes using a 3/8 in.(10mm)diameter drill bit. Make sure the depth is not less than 2 3/4 in.(70mm).
- Page 11 Step 3 Secure the Arm Assembly [02] to Wall Plate [01] 1. Hang the arm assembly [02] to wall plate [01]. 2. Shift the arm assembly [02] along the wall plate [01] to your desired position. 3. Secure the arm assembly [02] to wall plate [01] using bolts [F1]. Note: The bolts [F1] need to be tightened hard.
- Page 12 Step 5 Hang the TV onto the Front Support Remove the preassembled bolt [S] and save to use in 5-2 Screwdriver (Not lncluded) Hang the TV with brackets [03] onto the front support [09] Press the safety locks down, then fasten the removed bolts [S] HEAVY! You may need Screwdriver assistance with this step.
- Page 13 Step 6 Adjustments CAUTION! DO NOT over-loosen these four nuts when Level adjusting the level angle to prevent the TV Allen Key from falling off. 1.Loosen the bolt [F2] . 2.Level your TV. 3.Tighten the bolt [F2] to secure the TV in place.
- Page 14 Note: Please take off the TV before shifting Horizontal the arm assmebly along the wall plate Shift Take off TV Loosen bolts [S] To better position your mount and TV on your wall, the mount can be horizontal shifted left to right by following these steps. 1.
- Page 15 Thank you again for choosing this Perlesmith product! All of us at Perlesmith do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
- Page 16 Perlesmith offers products in these categories AV Shelves Anti-tip Straps TV Stands Speaker Stands TV Carts Full Motion Mounts Tilt Mounts Corner Mounts Please remember us when you need one.
