Summary of Contents for Perlesmith PSTVS12

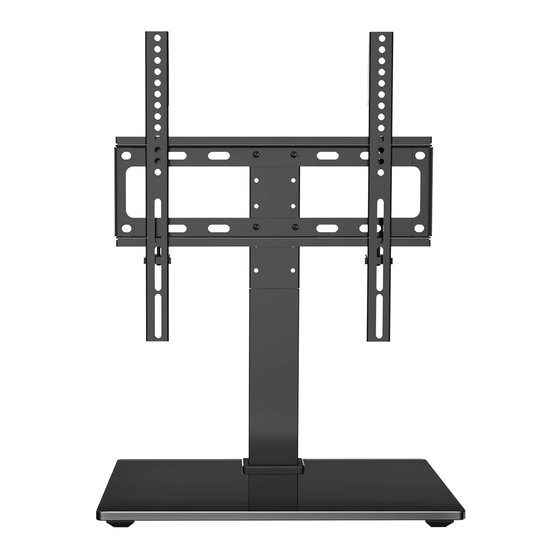

- Page 1 Table Top TV Stand PSTVS12...
- Page 2 Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use. •Please check www.perlesmith.com for more products and company information. Check the VESA Pattern of TV before the Installation 100 mm ≈...
- Page 3 Screw Screw Screw M4x30mm(X4) M6x15mm(X4) M6x35mm(x4) Screw M8x50mm (x4) D4/D6/D8 Washer(x4) 2.5mm Spacer(x8) 10mm Spacer(x4) 22mm Spacer(x4) M8x25mm(x3) M10 Nut (x1) M6 Nut (x4) D8.5xD18.0x1.5 D10.5xD28.0x1.0 Washer(x3) Plastic Washer(x1) M6-M10 D10.5xD30.0x2.5 5mm Allen Key(x1) 17mm Wrench(x1) Washer(x1) Step 1 Connecting the Lower Support Pillar to Tempered Glass Tempered Lower Support...
- Page 4 Step 1-2 Connect the Lower Support Pillar to Tempered Glass Step 2 Connecting the Upper Support Pillar to Lower Support Pillar D10.5 Upper Support Pillar Plastic Washer D10.5 M6-M10 Wrench Washer...
- Page 5 Step 3 Connecting the TV Plate to Upper Support Pillar M6-M10 M6 Nut TV Plate Wrench Cable Clip Securing the Cable Clips to Lower Support Pillar Step 4 Mounting the TV Brackets to TV Screw Screw M4x30mm M6x15mm Bracket Screw Screw Screw M6x35mm...
- Page 6 Too Short Too Long Correct Correct Note: If necessary, the spacers can be used in multi-layer. If the installation fails after trying various methods, please contact customer service at supportus@perlesmith.com. Option A (For Flat Back M-B/M-D M-G/M-H (If needed) Alternate...
- Page 7 Option C (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. M-A / M-C M-E / M-F M-G to M-I Alternate Spacer Setups Option D Spacers maybe necessary when brackets interfere with cables or USB. M-A / M-C M-E / M-F M-G to M-I Alternate...
- Page 8 Step 5 Securing TV to TV Plate HEAVY! You may need assistance with this step. Safety Lock Insert the safety locks into the brackets and tighten the screws until the screws touch the bumps of the TV plate. Please note, there is no screw holes in the TV plate.
