Digitus DS-30103 User Manual

Digitus 2-channel sata ii pci express card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

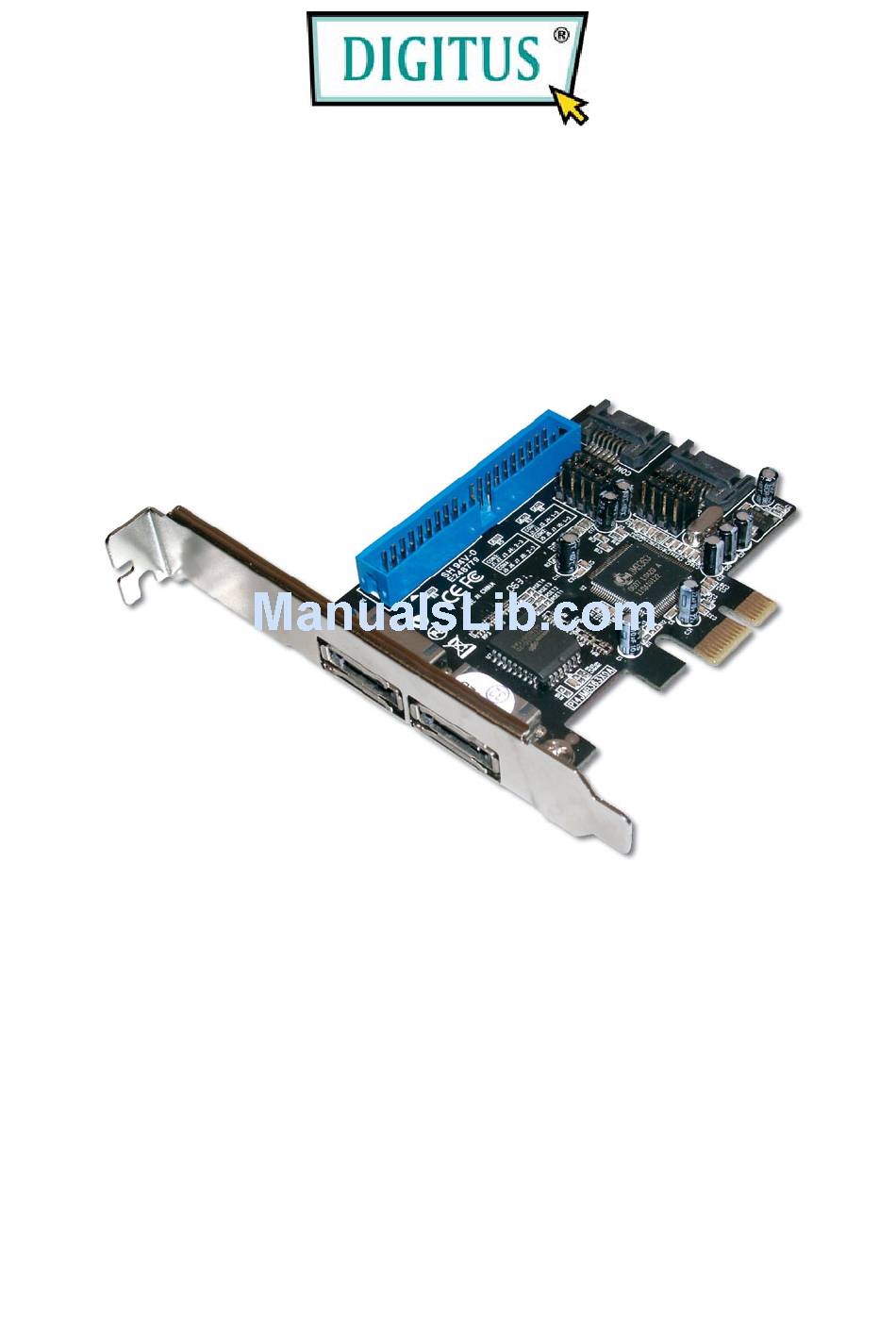

2-CHANNEL SATA II
PCI EXPRESS CARD
User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Digitus DS-30103

Summary of Contents for Digitus DS-30103

  • Page 1 2-CHANNEL SATA II PCI EXPRESS CARD User Manual...

  • Page 2: Features And Benefits

    Features and Benefits  Compliant with one-lane 2.5Gb/s PCI Express specification  Compliant with Serial ATA 1.0 specification  Supports Serial ATA Generation 2 transfer rate of 3.0Gb/s  Supports Native Command Queue (NCQ) on SATA ports  Provides three independent channels to connect two SATA and one PATA hard disk drive ...

  • Page 3: System Requirements

      1x Manual 1x Driver CD   2x SATA Data Cable 2x SATA Power Cable  1x ATA 133 IDE Cable System Requirements  Windows® 2000, Windows XP/2003/Vista 32/64 bit  PCI Express-enabled system with an available PCI Express slot...

  • Page 4: Hardware Description

    Hardware Description...

  • Page 5: Hardware Installation

    Jumper Settings J1-J4: Enable CON1 or CON3 (Default: CON1) J5-J8: Enable CON2 or CON4 (Default: CON2) Description Default J1-J4 1-2 close Enable SATA CON1 1-2 close 2-3 close Enable SATA CON3 J5-J8 1-2 close Enable SATA CON2 1-2 close 2-3 close Enable SATA CON4 Hardware Installation Turn Off the power to your computer.

  • Page 6: Raid Arrays

    RAID Arrays RAID Arrays are setup in the PCIe SATA II 300 + PATA Raid Card’s BIOS. There are four configurations supported: RAID level/Type Configurations Number of disks needed RAID 0 Disk Striping 2 or 3 or 4 RAID 1 Disk Mirroring RAID 0+1 Disk Striping...

  • Page 7: Raid 1 (Mirroring)

    to 0-Stripe, then press Enter. Please use arrow keys ↑ and ↓to switch the disk, use the “space” key to mark the selected disk, then press Enter. Please use arrow keys ↑ and ↓ to select chunk size from 4K, 8K, 16K, 32K, 64K or 128K, then press Enter. Input the RAID size, press Enter.

  • Page 8: Concatenation (Jbod)

    to 1-Mirror, then press Enter. Please use arrow keys ↑ and ↓to switch the disk, use the “space” key to mark the selected disk, then press Enter. Input the RAID size, press Enter. When asked Created RAID on the select HDD (Y/N)?, press Y to accept.

  • Page 9: Raid 0+1 (Striping + Mirroring)

    “space” key to mark the selected disk, then press Enter. Input the RAID size, press Enter. When asked Created RAID on the select HDD (Y/N)?, press Y to accept. At the next screen select Save And Exit Setup, press Enter. When asked Save to disk &Exit (Y/N)?, press Y to exit the BIOS.

  • Page 10: Delete Raid Disk Drive

    4K, 8K, 16K, 32K, 64K or 128K, then press Enter. Input the RAID size, press Enter. When asked Created RAID on the select HDD (Y/N)?, press Y to accept. At the next screen select Save And Exit Setup, press Enter. When asked Save to disk &Exit (Y/N)?, press Y to exit the BIOS.

  • Page 11: Solve Mirror Conflict

    Solve Mirror Conflict When a RAID set is created, then metadata written to the disk includes drive connection information. If, after a disk failure, the replacement disk was previously part of a RAID set (or used in another system), it may have conflicting metadata. If so, this will prohibit the RAID set from being either created or rebuilt, in order for the RAID set to function properly, this old metadata must be first overwritten with the new metadata.

  • Page 12: Bios Configuration

    Replace he failed drive(s) with one of equal or greater capacity, then start the computer. During boot press Ctrl+J to enter the RAID BIOS. Select Rebuild Mirror Drive press Enter. Please use arrow keys ↑ and ↓to select the array you want to rebuild, press Enter.

  • Page 13: Driver Installation

    32-bit Win2K/WinXP/Win2003, copy contents “DS-30103\Windows\Floppy32” folder, found on the driver CD, onto a blank floppy disk; To create a pre-install disk for 64-bit WinXP/Win2003, copy contents “DS-30103\Windows\Floppy64” folder, found on the driver CD, onto a blank floppy disk.
  • Page 14 A new installation requires a floppy disk for the driver installation. To create a pre-install disk for 32-bit Vista, copy the contents of the “DS-30103\Windows\Floppy32” folder, found on the driver CD, onto a blank floppy disk; To create a pre-install...
  • Page 15 Please insert the CD driver bound with PCIe SATA II 300 + PATA Raid Card into your CD-ROM Drive. At the Windows desktop, click Start, then Run. Type D:\DS-30103\Windows\Setup.exe, click OK. (Change D:\ to match your CD-ROM drive letter) Follow...

  • Page 16: To Verify Driver Installation

    To Verify Driver Installation Click on the “Device Manager” tab in System Properties, which you access from the Windows Control Panel. You should see an “JMicron JMB36X RAID Controller” installed under “SCSI and RAID controllers (Storage controllers-Vista)” item.
