Digitus DS-30000-1 User Manual

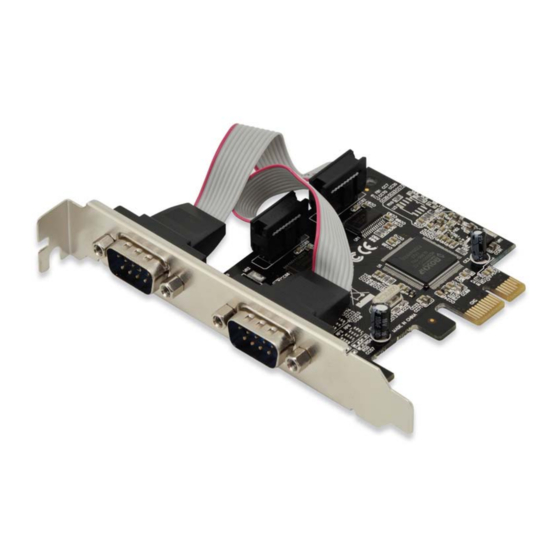

Serial i/o, 2-port pci express add-on card
Hide thumbs Also See for DS-30000-1:
1
2
3
4

Advertisement

Quick Links

Download this manual

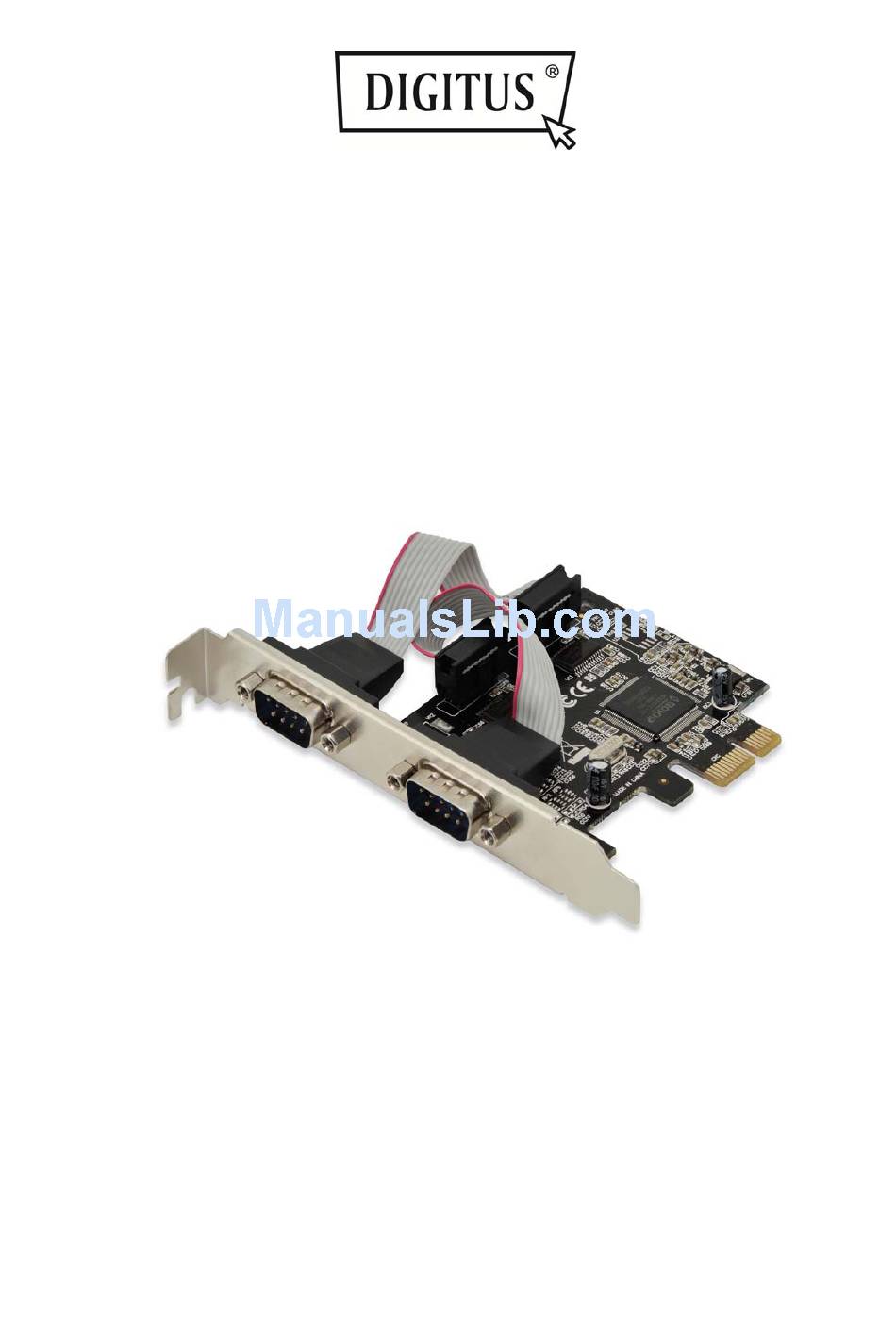

SERIAL I/O, 2-PORT
PCI EXPRESS ADD-ON CARD
User Manual
DS-30000-1

Advertisement

loading

Related Manuals for Digitus DS-30000-1

Summary of Contents for Digitus DS-30000-1

  • Page 1 SERIAL I/O, 2-PORT PCI EXPRESS ADD-ON CARD User Manual DS-30000-1...
  • Page 2 Features and Benefits 1. Compliant with PCI Express Base spec 1.1 2. Compliant with PCI Power Management 1.2 3. Supports 2 x UART serial port 4. Built-in 16C950 compatible UART 5. 128-byte deep transmit/receive FIFOs 6. Serial data transfer rate up to 230400bps PCI-Express x1 2 x DB9 male serial connectors System Requirements...

  • Page 3: Hardware Installation

    Different systems please select its corresponding driver files 1. Insert the Driver CD into the CD-ROM drive. 2. At the Found New Hardware Wizard, Select Locate DS-30000-1\DS-30000-1_CD\Driver 3. Press “Install” button to install the drivers. 4. Click “Exit” button to complete the driver installation.
  • Page 4 ® To Verify Windows Driver Installation Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. You should see two PCI Express UART Port … installed under Ports (COM & LPT) item, and one PCI Express Multiport Serial Adapter installed under Multi-port serial adapters item.
