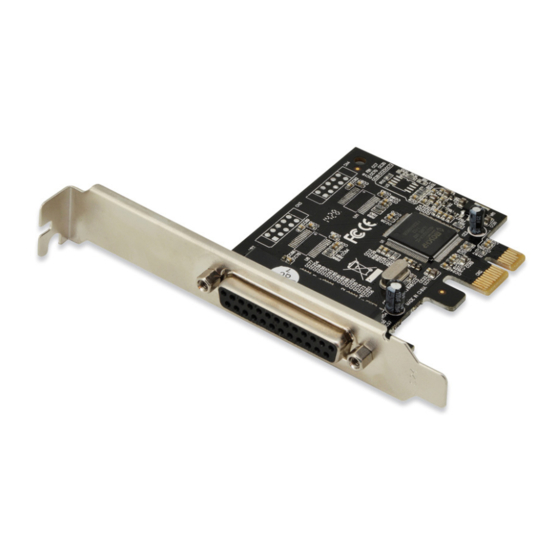

1-PORT PARALLEL INTERFACE
CARD, PCI EXPRESS
Manual
DS-30020-1 Rev.2

Advertisement

loading

Related Manuals for Digitus DS-30020-1

Summary of Contents for Digitus DS-30020-1

  • Page 1 1-PORT PARALLEL INTERFACE CARD, PCI EXPRESS Manual DS-30020-1 Rev.2...

  • Page 2: Specification

    Description, 1-Port Parallel Interface Card, PCI Express is a single chip solution that fully integrates PCIe2.0 Gen 1 end-point controller. It has parallel port, which can be easily to expand more devices. The Parallel port is a bidirectional extension of the existing PC parallel interface;...

  • Page 3: Parallel Port

    Parallel port  Compatible with IEEE1284-SPP / Byte / ECP mode Package content  1 x PCIe AX99100 Parallel card  1 x User’s Manual  1 x CD  1 x Low profile bracket System Requirements  Linux, Windows XP / Vista / Win7 / Win8 / Win8.1 / Win10 32bit or 64 bit ...

  • Page 4: Hardware Installation

    Hardware installation 1. Turn off the computer and unplug the power cord 2. Remove the computer cover and the PCIe card slot cover from the slot that matches your PCIe card 3. Insert the PCIe card edge connector into the slot and secure the bracket to the chassis 4.

  • Page 5: Install Drivers

    Install Drivers ® Windows Operating Systems You must have administrative rights to the operating system to install the drivers. 1. Insert the CD driver bound with PCIe AX99100 Parallel card driver into your CD-ROM drive 2. If the Found New Hardware Wizard screen is displayed, click Cancel 3.
  • Page 6 For_64bit: D:\Ax99100\xp.vista.win7\AX99100_Win7_Vista_ XP_64bit_Driver_v1.12.2.0_WHCK\ AX99100_Setup.exe Type for Windows 8/Win8.1/Win10 For_32bit: D:\Ax99100\win8.win8.1\win10\AX99100_Win10_8 .x_32bit_Driver_v1.18.2.0_WHCK\ AX99100_Setup.exe For_64bit: D:\Ax99100\win8.win8.1\win10\AX99100_Win10_8 .x_64bit_Driver_v1.18.2.0_WHCK\ AX99100_Setup.exe 5. Click “AX99100_Setup.exe” 6. Follow the instructions in the install wizard to finish it...

  • Page 7: To Verify Windows® Driver Installation

    To Verify Windows® Driver Installation Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you use the 2S1P card, you should see one “AX99100 PCIe to Multi Mode Parallel Port”…installed under Ports (COM & LPT) item. Support More information and settings please refer to the User Guides or you can contact us.
