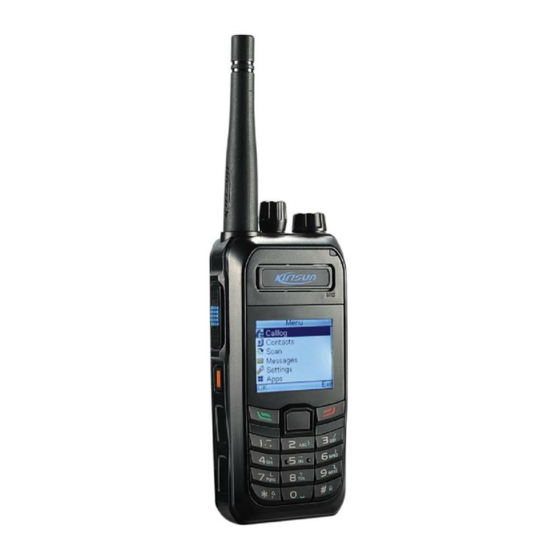

FP460 Digital Two-way Radio
Instruction Manual
Instruction Manual
FP460
Digital Two-way Radio
We are very grateful for your purchasing KIRISUN brand two-way radios produced
by Kirisun Communications Co., Ltd.
We believe KIRISUN two-way radio, which always incorporates the latest
technology, can bring great convenience to your life and work.
We also believe that the quality and function of KIRISUN two-way radio can meet
your demands for reliable communication.
II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP460 and is the answer not in the manual?

Questions and answers

which software is used for fp 460
February 13, 2025

software version for fp460

0
1 comments:
Mr. Anderson
May 14, 2025

The software version for the Kirisun FP460 is not provided in the given context.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Kirisun FP460

Summary of Contents for Kirisun FP460

  • Page 1 Kirisun Communications Co., Ltd. We believe KIRISUN two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN two-way radio can meet your demands for reliable communication.

  • Page 3: Copyright

    Kirisun or its authorized parities. Due to the update or modification of the product, Kirisun owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only.
  • Page 4 RF discomfort. ◆ Using the designated accessories Use the antenna, battery, adapter or charger supplied or sold by Kirisun only, or otherwise it causes damage to the product. If you want to purchase or replace the accessories, please contact your local dealer or Kirisun.
  • Page 5 FP460 Digital Two-way Radio Instruction Manual ◆ Area restrictions 1. To avoid of the problems caused by electromagnetic interference or electromagnetic compatibility, turn off the radio in any facilities where posted notices instruct you to do so, such as hospital and other health care facilities.
  • Page 6 FP460 Digital Two-way Radio Instruction Manual jewelry, keys, or beaded chains touches exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Excessive care in handling any charged battery, particular when placing it inside a pocket, purse, or other container with metal objects. To reduce the potentially damage, do not expose the battery in the fire, or disassemble and extrude the battery.

  • Page 7: Table Of Contents

    FP460 Digital Two-way Radio Instruction Manual Contents ◆ C ............................II OPYRIGHT ◆ S ........................II AFETY NFORMATION .......................1 NPACKING AND CHECKING ....................2 REPARING ADIO FOR ....................6 DENTIFYING ADIO ONTROLS ........................6 ADIO ONTROLS .......................9 ROGRAMMABLE UTTONS LCD D ......................... 11 ISPLAY LED I ........................

  • Page 8: Unpacking And Checking

    FP460 Digital Two-way Radio Instruction Manual Unpacking and checking Unpack the radio carefully. We recommend that you check the radio and the supplied accessories listed in the following table before discarding the packing material. If any damage or loss has occurred during shipment, please contact the deliveryman or the dealer without delay.

  • Page 9: Preparing Your Radio For Use

    FP460 Digital Two-way Radio Instruction Manual Preparing Your Radio for Use Charging the Battery Plug the power adapter into an applicable AC outlet and connect the power adapter to the battery charger. The green LED lights up. Insert the battery or the radio into the charger slot. Make sure the battery is well connected with the charger.
  • Page 10 FP460 Digital Two-way Radio Instruction Manual ※ Do not recharge the battery if it has been fully charged or the radio is not in the low battery alarm state; otherwise, it shortens the battery’s life time and performance. ※ To make sure the battery can be full charged, please turn off the radio while charging.
  • Page 11 FP460 Digital Two-way Radio Instruction Manual Removing: Press down the battery latch and push backwards until it separates from the radio. Note: Do not short-circuit the battery or discard in the fire. Do not disassemble the cover of the battery by your own.
  • Page 12 FP460 Digital Two-way Radio Instruction Manual To remove the belt clip, loosen the two screws. Attaching the External Earphone Open the cover for external equipment, and then insert the earphone plug into the jacks on the radio. Powering on/off the Radio With the radio turned off, turn the On/Off/Volume Knob clockwise until you hear a click to turn on the radio;...

  • Page 13: Identifying Radio Controls

    FP460 Digital Two-way Radio Instruction Manual Identifying Radio Controls Radio Controls ○ Antenna ○ PTT Button Press the button to make a call. ○ PF Button (programmable)
  • Page 14 FP460 Digital Two-way Radio Instruction Manual This button can be programmed with different functions by dealer, the functions of which refer to Section of Programmable button. ○ Speaker To output voice. ○ LCD Display The display indicates the radio’s status. Details refer to Section of LCD display.
  • Page 15 FP460 Digital Two-way Radio Instruction Manual Turn it clockwise to turn on the radio. Turn it counterclockwise until you hear a click to turn off the radio. With the radio turned on, turn it to increase/decrease the volume. ○ LED Indicator LED indicator lights in red when transmit signal;...

  • Page 16: Programmable Buttons

    FP460 Digital Two-way Radio Instruction Manual ○ Belt Clip ○ Battery Latch Programmable Buttons In order to facilitate your usage, you can program the following buttons as function shortcut keys by your dealer: Functions Name Operation PF button Long/short press...
  • Page 17 FP460 Digital Two-way Radio Instruction Manual Power Level Adjust: Toggles transmit power level between high and low. Monitor: If the current analog channel is configured with CTCSS/CDCSS, the CTCSS/CDCSS will be canceled and the radio switches to carrier squelch mode when press the key, which means if the carrier received matches with the frequency of the current channel, the radio sounds.

  • Page 18: Lcd Display

    FP460 Digital Two-way Radio Instruction Manual LCD Display Name Icon Descriptions Signal Strength No signal Indication Signal detected There is unread message in the inbox. Messages The inbox is full. Scan The radio is scanning. The transmit power of the current channel is low.

  • Page 19: Led Indicators

    FP460 Digital Two-way Radio Instruction Manual Private Call Indicates the current number is private call number. Group Call Indicates the current number is group call number. All Call Indicates the current number is all call number. Call Out Indicates that the radio is transmitting signal.

  • Page 20: Basic Functions

    FP460 Digital Two-way Radio Instruction Manual Basic Functions Selecting a channel Each channel in your radio can be programmed to analog channel or digital channel. Under the Home Screen, turn the Channel Knob to select a channel. Receiving and answering the call...
  • Page 21 FP460 Digital Two-way Radio Instruction Manual g. After the preset time (call hang time) is over, the call is over. (2) Receiving and answering private call Private call is a call from an individual radio to another individual radio. When the radio receives the private call: a.

  • Page 22: Making A Call

    FP460 Digital Two-way Radio Instruction Manual a. GREEN LED indicator lights on; b. The all call icon , the caller’s alias or ID and the incoming call icon display on the LCD screen; c. When the all call is finished, the radio returns to the previous screen.

  • Page 23: Advanced Functions

    FP460 Digital Two-way Radio Instruction Manual menu. d. Under the Home Screen, input the number manually, then press the PTT Button and speak to the MIC. On an analog channel, press the PTT Button and speak to the MIC. Advanced Functions Your radio also equips with the following advanced functions.
  • Page 24 FP460 Digital Two-way Radio Instruction Manual Press “Up/Down” key to select “Contacts”, and press OK to select; Press “Up/Down” key to select the target private call contact, Or Press “Down” key to select “Add”, and press “Options” to select. Then input the target ID with the keyboard and press “Options”...
  • Page 25 FP460 Digital Two-way Radio Instruction Manual revive order and neglect all the keyboard input except ON/OFF key operation. (2) Receiving a radio revive When “Radio kill/decoding enabled” and the killed radio receives the revive order, the radio automatically replies ACK (Successful), or otherwise replay ACK (Failed).
  • Page 26 FP460 Digital Two-way Radio Instruction Manual During when the “Radio kill/revive” order is sent out and the radio is waiting for the response, press “cancel”, the radio will terminate the order and exit “Radio kill/revive” mode. If the time to wait for the response is over, the radio will automatically exit this mode and displays “Radio kill/revive Failed”.
  • Page 27 FP460 Digital Two-way Radio Instruction Manual ◆Regular: The radio provides audio and visual indication that it is in Emergency mode and can receive the signal from others; ◆Secret: No audio and visual indication. And the radio cannot receive the signal from others;...
  • Page 28 FP460 Digital Two-way Radio Instruction Manual Keypad Lock If the keypad is locked, the keys have no reaction when pressing key except the PTT key, Emergency Alarm shortcut key, coding knob or the Keypad Lock key is pressed. Thus, it can avoid changing the current channel and working status unconsciously.
  • Page 29 FP460 Digital Two-way Radio Instruction Manual the scan list and stops on the channel which a signal is detected. During scan, the radio checks and stops on a busy channel. Then the radio continues scanning until the channel is not busy for a while (this time is set by dealer, which is named as Scan Hold Time).

  • Page 30: Identifying Menu Structures

    FP460 Digital Two-way Radio Instruction Manual You can set the radio’s operating parameters. Details refer to “Menu in Digital Mode” Identifying Menu Structures Press the Menu Key to enter it. The menu items would be a slight difference in digital mode and in analog mode.
  • Page 31 FP460 Digital Two-way Radio Instruction Manual Your radio is able to record the call in and call out log. If the call log is full, the earliest log will be covered and disappeared when the new call record is saved.
  • Page 32 FP460 Digital Two-way Radio Instruction Manual You can view the detailed information of the selected call log. Add number: You can add the number of the selected call log into Only Individual Call log has this function. Status Inquire: You can send this command to the selected number (only private call contact) to make sure whether the radio has been powered on or is active on the current channel secretly.
  • Page 33 FP460 Digital Two-way Radio Instruction Manual Set as default contact means to set the selected number as the default contact of the current channel. Only Group Call log has this function. Delete: Delete the selected call logs. 6.1.2 Delete All If you want to delete all the call logs, select item and confirm it.
  • Page 34 FP460 Digital Two-way Radio Instruction Manual contact can be inputted manually. Enter list, choose one contact, you can perform the following operations: press the PTT Button to send a call; check the detailed information; send a Status Inquire Call(only individual call contacts);...
  • Page 35 FP460 Digital Two-way Radio Instruction Manual digits. Scan Scan function helps you to receive calls from other channels, so as to supervise the activities of the personnel. During scanning, the radio checks every channel in the scan list and stops on the channel which a signal is detected.
  • Page 36 FP460 Digital Two-way Radio Instruction Manual 1. Press the Menu Key to access the main menu. 2. Press the Up/Down Key to and press the OK Key to confirm. Use the Scan shortcut key 1. Press the Scan shortcut key to enter.
  • Page 37 FP460 Digital Two-way Radio Instruction Manual Each channel can correspond to one scan list by dealer’s programming. Only the channel which is set in the item can enable scanning. Each scan list includes 16 channels at most, with both digital and analog channel. Selecting item and confirming it, check, added or delete the channels included in it.
  • Page 38 FP460 Digital Two-way Radio Instruction Manual You can write a new message to send. The target contact can be chosen from the Contact List. The message can also be saved into Drafts, and the template message can be inserted while writing a new message.
  • Page 39 FP460 Digital Two-way Radio Instruction Manual message here. Zone select A zone is a group of channels. You radio supports up to 16 channels and 16 zones, with a maximum of 16 channels per zone. Procedures: Use the menu 1. Press the Menu Key to access the main menu.
  • Page 40 FP460 Digital Two-way Radio Instruction Manual communication, but the battery’s working time will be lessened. refers to high power, refers to low power. Each channel’s power level can be set separately. 6.6.2 Squelch level The radio’s squelch level can be set from 0 to 9. If the squelch level is higher, the radio is affected less by noise, but harder to receive weak signal.
  • Page 41 FP460 Digital Two-way Radio Instruction Manual You can set alert tone function on/off the alert tone here. 6.6.6 Home Screen You can set what to display on your Home Screen, including channel number, channel frequency, channel name, zone number and zone alias.
  • Page 42 FP460 Digital Two-way Radio Instruction Manual You can check the current channel mode and transmit/receive frequency. Radio Information You can check the following information: radio ID, model type, firmware version, data version and frequency range. 6.10 Menu in analog mode In analog channel, there are Scan, Channel Info, Settings, APPs and Radio Info in the main menu, the contents of which are the same as on digital channel.

  • Page 43: Troubleshooting

    FP460 Digital Two-way Radio Instruction Manual Troubleshooting Problem Causes and Solutions radio cannot A. The power switch is in failure. Please change it. switched on or no display B. The battery is out of power, please recharge it or change it.

  • Page 44: Specification

    FP460 Digital Two-way Radio Instruction Manual Specification General Frequency Range 400-470MHz/136-174MHz Channel Capacity Channel Spacing 6.25KHz/12.5KHz -25℃~ +55℃ Operating Temperature Operating Voltage 7.5V DC ±20% Battery 1500mAH Li-ion Frequency Stability ±2.5 ppm Dimension (with battery and antenna) 116mm x54mmx30mm Weight (with battery and antenna)
  • Page 45 FP460 Digital Two-way Radio Instruction Manual -36dBm < 1GHz Radiated Spurious Emission -30dBm > 1GHz 45dB @ 25KHz FM Noise 40dB @ 12.5KHz Modulation Distortion < 3% Receiver 0.25μV @12.5KHz Reference Sensitivity Adjacent Channel Selectivity 60dB @ 12.5KHz Intermodulation 60 dB...
  • Page 47 - 2 -...
