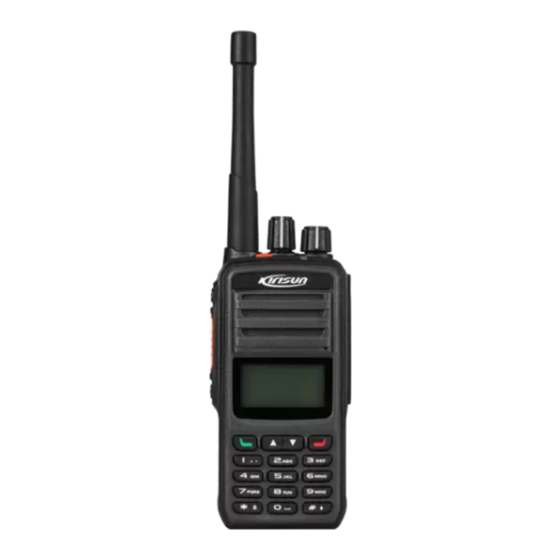

Kirisun DP580-01 User Manual

Digital two-way radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

DP580-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP580-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kirisun DP580-01

Summary of Contents for Kirisun DP580-01

  • Page 1 DP580-01...
  • Page 2 We are very grateful for your purchasing Kirisun brand two-way radio produced by Kirisun We believe Kirisun two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of Kirisun two-way radio can meet your demands for reliable communication.
  • Page 3 Any design and materials may not be modified, copied, extracted or translated without the authorization of Kirisun or its authorized parities. Due to the update or modification of the product, Kirisun owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only.
  • Page 4 DP580-01 Digital Two-way Radio Your radio complies with the following of RF energy exposure standards and guidelines Institute of Electrical and Electronic Engineers (IEEE) C95.1-1992 Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 ◆...
  • Page 5 RF discomfort. ◆ Using the designated accessories Use the antenna, battery, adapter or charger supplied or sold by Kirisun only, or otherwise it causes damage to the product. If you want to purchase or replace the accessories, please contact your local dealer or Kirisun.
  • Page 6 DP580-01 Digital Two-way Radio 6. Do not place the radio in the area with great dust, moisture or drips, or on the unstable surface. ◆ Operating Attentions Antenna Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result.
  • Page 7 User Manual Regulatory Kirisun directive (EU) No 2014/53 of the European Parliament and of the Council of 16 April 2014 on harmonisation of the laws of the Member States relating to the making available on the market of radio equipment (RED) and that any applicable Essential Test Suits measurement have been performed.
  • Page 8 DP580-01 Digital Two-way Radio 160.56 MHz - 160.6 MHz,161.02 MHz - 161.04 MHz, 161.1 MHz - 161.12 MHz,161.16 MHz - 161.2 MHz, 162.94 MHz -164.82 MHz,164.84 MHz - 164.88 MHz, 164.9 MHz - 165.18 MHz,165.7 MHz - 166.44 MHz, 166.84 MHz - 166.86 MHz,166.9 MHz - 166.92 MHz, 166.94 MHz - 166.96 MHz,166.98 MHz - 167.1 MHz,...
  • Page 9 User Manual 153.025 MHz - 153.475 MHz,154 MHz - 155 MHz, 157.205 MHz - 165.0375 MHz,165.05 MHz - 173.09375 MHz 138 MHz - 143.6 MHz,146 MHz - 147.6 MHz, 147.9 MHz -148.2 MHz,150.05 MHz - 151.6 MHz, Greece(EL) 154.5 MHz - 156.7625 MHz,156.8375 MHz -161.9625 MHz, 162.0375 MHz - 174 MHz 146 MHz - 149.9 MHz,150.05 MHz -156.4875 MHz, Spain(ES)
  • Page 10 DP580-01 Digital Two-way Radio 162.0375 MHz - 174 MHz 146 MHz -156 MHz,157.45 MHz - 160.6 MHz, Cyprus (CY) 160.975 MHz - 161.475 MHz,162.05 MHz - 174 MHz 148 MHz - 149.9 MHz,150.05 MHz - 156.4875 MHz Portugal (PT) 156.8375 MHz - 174 MHz 146 MHz - 156 MHz,157.45 MHz - 160.6 MHz,...
  • Page 11 User Manual 162.0375 MHz - 174 MHz 148.2 MHz - 149.05 MHz,150.05 MHz - 150.975 MHz, Czech Republic (CZ) 152.8 MHz - 153.65 MHz,157.45 MHz - 158.375 MHz 146 MHz - 149.9 MHz,150.05 MHz - 153 MHz, Denmark(DK) 154 MHz - 156.4875 MHz,156.8375 MHz -174 MHz 150.05 MHz - 156 MHz,157.45 MHz - 160.6 MHz, Estonia(EE) 160.975 MHz - 161.475 MHz,162.05 MHz - 169.4 MHz,...
  • Page 12 DP580-01 Digital Two-way Radio 156.4875 MHz - 156.5125 MHz， Austria(AT) 160.3 MHz - 160.300001 MHz， 169.4 MHz - 169.8125 MHz 147.8 MHz - 147.975 MHz，150.05 MHz - 151.625 MHz， 151.775 MHz - 156 MHz，157.425 MHz - 160.6 MHz， Poland(PL) 160.975 MHz - 161.475 MHz，162.05 MHz - 164.475 MHz，...
  • Page 13 User Manual 155.5125 MHz - 156 MHz，156.8375 MHz - 161.9375 MHz， 162.5 MHz - 164.4875 MHz，165.5125 MHz - 170.4875MHz， 172.5125 MHz - 174 MHz 146.30625 MHz - 146.79375 MHz，146.80625 MHz - 146.89375 MHz，146.90625 MHz - 148.26875 MHz， 148.28125 MHz - 149.39375 MHz，149.40625 MHz - 149.89375 MHz，150.05 MHz - 151 MHz，...
  • Page 14 DP580-01 Digital Two-way Radio 165.3 MHz - 165.75 MHz，165.775 MHz - 165.975 MHz， 166 MHz - 167.675 MHz，167.7 MHz - 168.55 MHz， 168.575 MHz - 169.4 MHz， 169.61875 MHz -169.80625MHz， 169.825 MHz - 169.875 MHz，169.9 MHz - 170.35 MHz， 170.375 MHz - 170.575 MHz，170.6 MHz - 172.275 MHz，...
  • Page 15 User Manual IC Statement This device complies with Industry Canada licence‐exempt RSS standard(s): Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 16 DP580-01 Digital Two-way Radio for meeting occupational exposure requirements. The highest reported SAR values for Front-of-face: 1.361W/Kg, body-worn: 3.108W/Kg. Warning! : This portable radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards.
  • Page 17 User Manual – This transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 2.5 cm.
  • Page 18 DP580-01 Digital Two-way Radio This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 19 Please dispose of your waste product according to your national and local regulations. Contact your service provider or Kirisun for information about disposing of this product in your region of the world.
  • Page 20 DP580-01 Digital Two-way Radio FCC radiation exposure statement This radio is intended for use in occupational/controlled applications where users have been made aware of the potential risks for exposure and can exercise control over their exposure. This product is not authorised for general population, consumer or similar use.
  • Page 21 User Manual Brief Introduction 1．Attaching the antenna: put the antenna into the antenna interface, and rotate the antenna clockwise to...
  • Page 22 DP580-01 Digital Two-way Radio fix it. 2．Powering on: rotate the power/volume knob to power on the radio. 3．Channel Selection: rotate the channel selection knob to select channel. 4．Powering off: rotate the power/volume knob clockwise to power off the radio Contents...

  • Page 23: Table Of Contents

    User Manual UNPACKING AND CHECKING ........................ 22 BATTERY INFORMATION ........................23 ATTACHING THE ACCESSORIES ......................26 OVERVIEW ............................29 PROGRAMMABLE KEYS ........................31 BASIC OPERATION ..........................37 SHORT MESSAGE..........................40 EMERGENCY ALARM ..........................43 CALL RECORDS ............................. 46 10. FUNCTIONS AND OPERATION ......................48 11.

  • Page 24: Battery Information

    DP580-01 Digital Two-way Radio any missing or damaged item, please contact your local dealer for solution. 1.1 Supplied Accessories Material Quantity Radio Charger Power Adaptor Battery Belt Clip Antenna Strap User Manual 2 Battery Information 2.1 Notice...
  • Page 25 User Manual The battery is not charged before delivery, so please charge the battery for your first use. If the battery is not used for a long time or the battery is used up, please charge it before use. Charge/discharge for twice or three times alternately to achieve its optimal performance.
  • Page 26 The battery is not charged before delivery from the factory, so please charge the battery before your first use.  Kirisun KB-75A lithium-ion can be used for this radio.  If the battery which is stored for over 2 months or a new battery is charged for the first time, it should be...

  • Page 27: Attaching The Accessories

    User Manual three months.  When the battery is fully charged or the battery power is above the level of low power alert, do not charge the battery, or it may affect the battery life and performance. Please take out the battery from the charger after it is fully charged.
  • Page 28 DP580-01 Digital Two-way Radio (1) Slightly press the top of the belt clip as shown in ①; (2) Align the battery with the battery installation base at the back and insert the battery as shown in ②. (3) Slide the battery along the direction as shown in ③ until the battery is fit into the right position.
  • Page 29 User Manual 3.2 Attaching/Detaching the Antenna For attaching the antenna, put the antenna’s end with screw thread into the antenna port. Turn the antenna clockwise until it is fixed. For detaching the antenna, turn it counter-clockwise. 3.3 Attaching/Detaching the Belt Clip Align the two screws on the belt clip with the screw holes at the back of the radio.

  • Page 30: Overview

    DP580-01 Digital Two-way Radio 4. Overview...
  • Page 31 User Manual Part Name Part Name LED Indicator Red light on: The radio is transmitting signals. Antenna Green light on: The radio is receiving signals. Flashing red light: The battery is low. PTT Key Microphone Press it to make a call and talk. Input voice.

  • Page 32: Programmable Keys

    DP580-01 Digital Two-way Radio External Interface Speaker Connect to an external speaker or Output voice. microphone. Channel Selector Knob Rotate it to select one from the Belt Clip channels 1 to 16. Power/Volume Knob Turn it clockwise until a click is heard to power on the radio.
  • Page 33 User Manual Note: Short Press: press and release quickly. Long Press: press and hold for a while (press duration can be set by programming software) Programmable Application Feature No Function Press the key, and the radio will not respond. High/Low Power Switch to high/low power.
  • Page 34 DP580-01 Digital Two-way Radio Programmable Application Feature an analogue channel. Broadcast Call Set the function of broadcast call. Enable/disable scanning. It is used to listen to the communication Scan activities on other channels. Prompt Tone On/Off Enable/disable all prompt tones.
  • Page 35 User Manual 5.2 LED Indication State Operation Red Light on Transmitting signals Green Light on Receiving signals Red Light Flashing Low battery. Please charge it Green Light Flashing Scanning channels Orange Light Flashing In call hold state under digital mode. Exit when hold time is up Orange Light on The channel unusable.
  • Page 36 DP580-01 Digital Two-way Radio 5.3 LCD Indication No signals are received or sent Signal Strength Signals are received or sent Unread message (in status bar or inbox) Read message (in outbox) Message Sent message (in outbox) Message sent unsuccessfully (in outbox)
  • Page 37 User Manual Prompt tones enabled Prompt Tone Prompt tones disabled Radio in emergency alarm state (secret alarm excluded), Emergency Alarm or emergency alarm received Battery Capacity Length of icon indicates quantity of capacity Single Call Type of current call Group Call Type of current call All Call All call or broadcast call...

  • Page 38: Basic Operation

    DP580-01 Digital Two-way Radio Basic Operation 6.1 Powering on/off the Radio When the radio is off, rotate the Power/Volume knob clockwise until a click is heard to power on the radio. The welcome page will be displayed, backlight will be on, and a “beep” sound will be heard.
  • Page 39 User Manual 6.4 Initiating a Call If the current channel is digital, you may perform any of the followings. Call the default contact: Press the PTT key. The indicator will be on with red light, indicating the radio is transmitting signals. The call page containing the contact name and the call type will be displayed. The default contact of the current channel can be set by the dealer through programming, or via the menu in the contact list.
  • Page 40 DP580-01 Digital Two-way Radio LED glows to indicate that carrier is received. When the current channel is digital channel and when it received private call, group call or all call, the radio will output the voice from the channel. A page containing the contact’s ID or alias, call type (private call, group call or all call), and the icon of incoming call will be displayed.

  • Page 41: Short Message

    User Manual A zone is a collection of channels. You can switch among different channel groups by switching to different zones. The radio supports a maximum of 16 zones, each supporting a maximum of 16 channels. You can switch to a zone in either of the methods: 1) Enable zone selection on the Program key through Programming, and then switch to a zone by pressing the Program key.
  • Page 42 DP580-01 Digital Two-way Radio 7.1 Editing and Sending Short Message 1) In the home page, press to enter the menu. 2) Select “Short Message”. 3) Select “New Message”. 4) Select “Edit”. 5) In the editing interface, you can: a) Start editing from the position of the cursor.
  • Page 43 User Manual 9) If the message is sent successfully, “Message sent” will be displayed on the screen with a voice prompt; if it is sent unsuccessfully, “Message sending failed” will be displayed with a voice prompt. 10) Return to the Short Message interface. 7.2 Sending Quick Message The radio supports a maximum of 10 quick messages (defined by the dealer using programming software) You can edit a pre-defined quick message before sending it.

  • Page 44: Emergency Alarm

    DP580-01 Digital Two-way Radio 7.3 Receiving Short Message When the radio receives a message, the LCD will remind you of the new message and display the icon of unread message on the status bar. You can enter the inbox and read the message.
  • Page 45 User Manual 1) Siren Only —— After the radio enters the emergency state, the siren only sounds locally and the control center will not receive any alarm signal. 2) Normal —— The radio sends emergency alarm and audio-video alert. 3) Secret —— The radio sends emergency alarm but no audio-video alert. When the radio receives speech signals, the speaker will not be turned on until the PTT button is pressed.
  • Page 46 DP580-01 Digital Two-way Radio  If you radio is set as “Secret” or “Secret with Voice”, there will be no audio-video alert.  After the emergency alarm with voice responded, the two parties can communicate though the emergency channel.  The emergency with voice will then open the radio MIC, which allows user to talk without having to press PTT button.

  • Page 47: Call Records

    User Manual 8.3 Exiting Emergency Alarm The radio will exit the alarm mode under the circumstances listed below.  Receives emergency alarm response on Emergency alarm mode.  The emergency alarm retry count is used up and no response is received. ...
  • Page 48 DP580-01 Digital Two-way Radio 3) Select a call list (missed calls, outgoing calls or incoming calls). 4) Select a target call record. 5) Select “Details” to check the record details. 6) Press the PTT key to call the contact corresponding to the record.

  • Page 49: Functions And Operation

    User Manual d) Select “Delete All”. e) Press the OK key to delete all the records in the list. 2) Deleting one Record from Call List a) Select a target record in the call list. b) Select “Delete”. c) Press the OK key to delete the record. 10.
  • Page 50 DP580-01 Digital Two-way Radio 10.2 Enabling Color Code on Digital Mode Only when both the color code and ID matches, the speaker can be turned on to receive. Range: 0~15 (16 groups of color codes) 10.3 Lone Worker This function is applicable to circumstances with high risk, in which frequent communication is required to ensure safety.
  • Page 51 User Manual 2) Select “Setting”. 3) Select “Language Selection”, and select a language. 10.5 Setting Alert Tone You can enable/disable the alert tone and adjusts the volume. 1) In the home page, press to enter the menu. 2) Select “Setting”. 3) Select “Alert Tone Setting”.
  • Page 52 DP580-01 Digital Two-way Radio 2) Select “Setting”. 3) Select “Power Setting”. 4) Select “High” or “Low” power and set the power level. 10.7 Setting Squelch Level You can adjust the squelch level based on different situation to remove unnecessary calls in weak signals.
  • Page 53 User Manual a) In the keypad lock interface, select and enter the interface of “Auto Lock”. b) Select the delay time of auto keypad lock. c) Press the OK key and the LCD will show “Operation Succeeded”. The auto lock time is saved. 2) Locking the Keypad Quickly When the radio is on, press and hold * to lock the keypad.

  • Page 54: Advanced Functions

    DP580-01 Digital Two-way Radio 11. Advanced Functions 11.1 Checking a Radio Radio Check feature is used to check whether a target radio is activated in the system. The target user will automatically send a response to the caller radio without any audible or visual indication.
  • Page 55 User Manual During radio check, if the retry count is used up and no response is received, the radio will exit the radio check, and “request timed out” will be displayed. 11.2 Call Alert Call alert feature allows authorized caller radio to request a target radio to call back. 1) Receiving and Responding to Call Alert a) When the radio received call alert, it will automatically reply if call alert decode is enabled.
  • Page 56 DP580-01 Digital Two-way Radio The red indicator glows. f) Wait for response from the target radio. g) If the target radio succeeded to respond, the message “call alert successful” will be displayed on the sender radio, otherwise “request timed out” will be displayed.
  • Page 57 User Manual screen without the ability to receive all the other information except the un-stun signaling. All the operation on the radio is valid except powering on/off. The activated radio will go back to normal from being stunned. 2) Sending Stun/Un-Stun Signaling a) In the home page, press to enter the menu.
  • Page 58 DP580-01 Digital Two-way Radio 11.4 Radio Kill This function allows the user to kill the target radio through air signaling. After the target radio is killed, the key configuration data will be cleared and the radio is powered off automatically. You cannot operate the radio after powering it on.
  • Page 59 User Manual 11.5 Remote Listening This function allows the user to turn on the microphone of a target radio through air signaling without any audio or video indication on the target radio. This function can be used to listen to the surroundings of a target radio.
  • Page 60 DP580-01 Digital Two-way Radio sending signals, and the message ”Request timed out” will be displayed. 11.6 Scanning In order to receive voice and data from multiple channels, the radio can be programmed to scan these channels. The radio supports up to a maximum of 32 scan lists and each scan list supports a maximum of 16 channels.
  • Page 61 User Manual priority channel, no icon will be displayed. 2) Adding Scan Channel a) In the home page, press to enter the menu. b) Select “Scan”. c) Select “Scan List”, and then select “Add”. d) Select a target channel from the list of available channels, and add it to the scan list. 3) Deleting Scan Channel a) In the home page, press to enter the menu.
  • Page 62 DP580-01 Digital Two-way Radio b) Select “Scan”. c) Select “Scan List”, and then select a target channel. d) Select “Set as prior channel 1” to set the channel as prior channel 1. Repeat these steps while adding a prior channel 2.
  • Page 63 User Manual a) Keep the microphone 3~10 cm from your mouth. b) During the dwelling time, press the PTT key to talk, and the red indicator glows. c) Wait until the prompt tone for voice communication ends, and then speak to the microphone. d) Release the PTT key to receive voice.
  • Page 64 DP580-01 Digital Two-way Radio (set by dealer through programming software). Note: A function indicated with “*” is optional. If you need to enable it, please contact Kirisun or the dealer. 1) Checking Information of Current Position a) In the home page, press to enter the menu.

  • Page 65: Troubleshooting

    Enable/disable the function. Note: A function indicated with “*” is optional. If you need to enable it, please contact Kirisun or the dealer. Enabling Color Code on Digital Mode Only when both the color code and ID matches, the speaker can be turned on to receive.
  • Page 66 DP580-01 Digital Two-way Radio A. The battery is used up Failed to power Solution: Charge the battery or change to a new battery. B. Volume switch is faulty Solution: Get it repaired at the specified service station. A. Speak too far from the microphone Small voice Solution: The ideal distance: 3-10cm.
  • Page 67 User Manual A. Check if the antenna is dual-mode. Solution: If not, replace it with a dual-mode one. GPS positioning B. Check if GPS positioning is properly set. fails Solution: If not, reset it. C. The radio is placed in a blocked environment. Solution: Place the radio in an open area.
  • Page 68 保修卡 - 2 -...
  • Page 69 1111 - 3 -...
