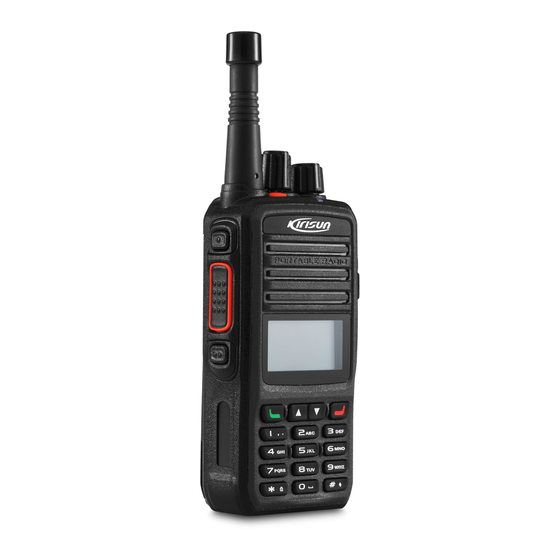

Kirisun T60 User Manual

Portable poc two-way radio
Hide thumbs Also See for T60:
Table of Contents

Advertisement

Quick Links

DP580 Digital Two-way Radio
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T60 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun T60

Summary of Contents for Kirisun T60

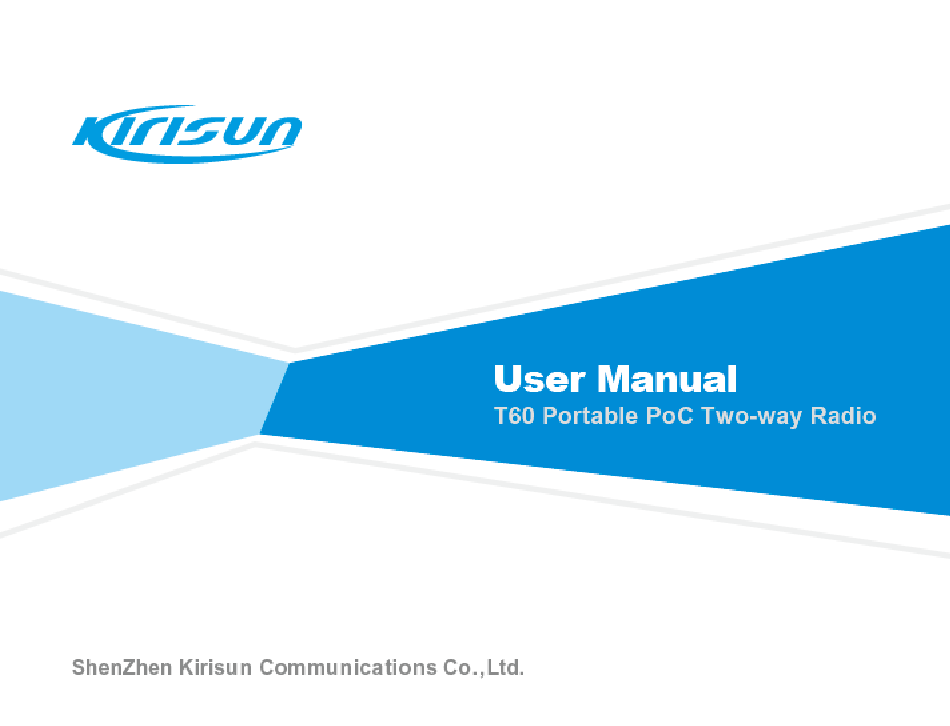

  • Page 1 DP580 Digital Two-way Radio...
  • Page 2 We believe that the product will bring much convenience to your work and life. Kirisun portable PoC two-way radio adopts advanced technology and fine technique. We hope that you will be satisfied with the .quality and functions of the product.
  • Page 3 Kirisun and its authorized subjects. Without permission of Kirisun and such subjects, no copy, extraction or translation of such parts is allowed. ◆ The product is subject to change because of upgrading or improvement. Kirisun reserves the right to change the specifications of software and hardware mentioned in the manual from time to time without prior notification.
  • Page 4 T60 Portable PoC Two-way Radio Safety Precaution ◆ The two-way radio can be repaired only by professional technicians. Users should not disassemble it by themselves. ◆ To avoid problems caused by electromagnetic interference or electromagnetic incompatibility, please turn off the radio in a place where you are instructed to do so, for example, a hospital, a health care center and an aircraft.
  • Page 5 User Manual Battery ◆ Contact of conductive substance on human body, for example, jewelry, a key and a bead necklace, with an exposed battery terminal may result in damage to personal belongings and injury like burn caused by a high temperature after the battery is short circuited with such substance. Please handle a charged battery carefully, especially when you put it in a pocket, wallet or metallic container.

  • Page 6: Table Of Contents

    T60 Portable PoC Two-way Radio Contents 1. Using the Battery ..................... 2 2. Using the Accessories ..................4 3. Appearance ..................... 8 4. Programming Keys ..................9 5. LED Indicator ....................11 6. Icons......................12 7. Basic Operation ..................... 13...

  • Page 7: Using The Battery

    保修卡 1. Using the Battery 1.1 Notice for Charging The radio is delivered uncharged. Before using the radio for the first time, please charge the battery. If the battery is not used for a long time or run out, please charge it before using it again. It is necessary to charge and discharge the battery for two or three times to attain the best performance of it.
  • Page 8 1.2 Charging You can charge the battery using one of the following methods. (1) Charging via Micro USB Port on Right Side a. Open the cover of external interfaces on the right side of the radio to find the Micro USB port. b.
  • Page 9 保修卡 c. Put the radio (with the battery installed) into the charger to start charging. Red LED indicator light will be on. Ensure good contact between the battery and the charging terminals. d. After charging for about 6 hours, red light will be off and green light on. Now the battery is fully charged.

  • Page 10: Using The Accessories

    2. Using the Accessories 2.1 Installing/Uninstalling the Battery ◆Installing the Battery (1) Press the upper part of the belt clip gently so that it goes up. (Figure ①) (2) Align the battery with the battery holder at the back of the radio, and then insert the battery. (Figure ②) (3) Push the battery in the direction indicated until the latch is in position.
  • Page 11 保修卡 Note:  Do not short out battery terminals or discard the battery in fire.  Do not disassemble the battery casing. 2.2 Installing/Uninstalling the Antenna To install the antenna, plug the threaded end into the antenna interface, and rotate the antenna clockwise until it is tight. To uninstall the antenna, rotate it counterclockwise.
  • Page 12 2.4 Connecting Programming/Charging Cable Open the cover of external interfaces on the right side of the radio, find the Micro USB port, connect the port to a PC using the programming/charging cable, and write/read parameters using the attached programming software. 2.5 Connecting an Earphone (Optional) To use an earphone, open the earphone cover at the upper part of the right side of the radio, and then plug the earphone connector into the jack.

  • Page 13: Appearance

    保修卡 3. Appearance...

  • Page 14: Programming Keys

    Item Item Side Key 1 LED Indicator PTT Key Microphone Side Key 2 Screen Antenna Right Navigation Key Left Menu Key Right Menu Key Left Navigation Key Keypad External Interfaces Open the cover to find the Speaker earphone interface and Micro USB port.
  • Page 15 保修卡 To cater to users’ habits, programmable keys (i.e. two side keys and one top key) are provided, which can be set as shortcut keys through programming by your dealer. To program a key, connect the programming/charging cable to the Micro USB port of the radio, and then program using the attached programming software.

  • Page 16: Led Indicator

    5. LED Indicator The states of the LED indicator are described in the following table. LED Indicator State Device State - No SIM card is installed, or it is installed improperly (with voice prompt “No SIM card is installed”). Red light on - Fail to unlock the PIN code of the SIM card.

  • Page 17: Icons

    保修卡 LED Indicator State Device State No indication - The device is powered off. 6. Icons The following screen icons are used to indicate the state of the radio. Icon Description G/3G received signal strength E: 2G GPRS transmission; 2G/3G/4G 3G: 3G WCDMA transmission 4G: 4G LTE transmission Wi-Fi signal strength...

  • Page 18: Basic Operation

    Icon Description Bluetooth enabled, searching for Bluetooth device Connected to Bluetooth device Remaining battery capacity Unread short message 7. Basic Operation 7.1 Powering On/Off When the radio is off, rotate the Power/Volume knob clockwise until a click is heard to power on the radio.
  • Page 19 保修卡 7.3 Adjusting the Volume When the radio is on, rotate the Power/Volume knob clockwise to increase the volume or counterclockwise to decrease it. 7.4 Selecting a Group You can select a group using one of the following methods. Method 1: After the radio registers successfully and enters standby state, rotate the Group knob to select a group.
  • Page 20 group member initiates a call, the radio will have green LED indicator light on, and receive traffic from the group. 7.7 Delayed Callback Admission Use this function to delay admitting the radio to a group call for a period of time. 7.8 Priority Call You may set different priorities for different radios, so that a radio with a higher priority can initiate a call before a radio with a lower priority does and interrupt an ongoing call.
  • Page 21 保修卡 Note: You may select a callee radio from the Contact List. 3) Initiating an Individual Call Make sure the radio is normal state (i.e. green light flashes slow). Press the PTT key. After the call is set up successfully, yellow light will be on, and the callee’s name and call type will be displayed on the LCD screen.
  • Page 22 The default call duration for all types of calls is 60 seconds, which can be modified through the network management platform. If call duration exceeds this value, the call will end automatically. 7.11 Downloading and Playing Back Video Records  Downloading and Playing Back Video Records You can download and play back the latest 5 voice records.
  • Page 23 保修卡 When remaining battery capacity is below 10%, there is voice prompt “Low battery, please charge”. When remaining battery capacity is below 5%, there will be voice prompt “Low battery, please charge” at an interval. Please replace the battery, or power off the radio and charge the battery. 7.14 Remote Programming Partial parameters of the radio can be set via the management platform, distributed to the radio via a 2G (GPRS), 3G (WCDMA) or 4G (LTE) network and activated, for example, group settings, terminal...
  • Page 24 There are two alarm modes as below, which can be set by going to “Menu” “Settings”  “Alarm Modes”. a. Silent Alarm: Under this mode, the radio sends an emergency alarm silently, and receive an alarm with voice prompt “SOS alarm from ***”. b.

  • Page 25: Technical Specifications

    保修卡 8. Technical Specifications General GSM/GPRS: 850 Communication System WCDMA/HSPA: B5 & Frequency Bands FDD-LTE: B4/5/7/17 -40℃ ~ + 80℃ Storage Temperature -20℃ ~ + 40℃ Operating Temperature Water and Dust IP 54 Resistance 115mm*54mm*30mm (battery included, antenna Dimension (H*W*D) excluded) Weight 330g (battery and antenna included)
  • Page 26 4G: 13 hrs (GPS on), 15 hrs (GPS off) Transmitter 2G: 33dBm± 2dB Transmitting Power 3G: 24dBm+1/-3dB 4G: 23dBm+1/-3dB Audio Distortion 5% (typical) Receiver 2G:BER < 0.001 when Î or = -106.7 (-108) dBm Receiving Sensitivity 3G: BER < 0.001 when Î or = -106.7 (-108) dBm 4G:BER <...

  • Page 27: Fcc Statement

    保修卡 FCC Statement 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 28 is connected. -- Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.
  • Page 29 保修卡 Statement IC STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
