User Manual

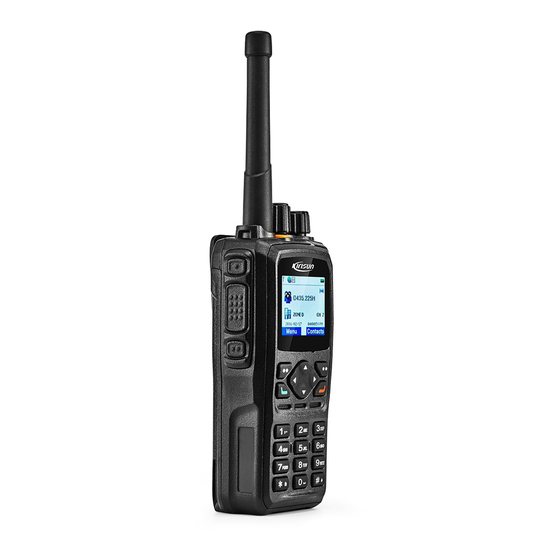

DP990 DMR Two Way Radio
User Manual
DP990
DMR Two Way Radio
We are very grateful for your purchasing Kirisun brand two-way radio produced by Kirisun
Communications Co., Ltd
We believe Kirisun two-way radio, which always incorporates the latest technology, can bring
great convenience to your life and work. We also believe that the quality and function of
Kirisun two-way radio can meet your demands for reliable communication.
III

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP990 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun DP990

Summary of Contents for Kirisun DP990

  • Page 1 User Manual DP990 DMR Two Way Radio We are very grateful for your purchasing Kirisun brand two-way radio produced by Kirisun Communications Co., Ltd We believe Kirisun two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of...
  • Page 2 ◆ In order to protect your legal rights from infringement, please carefully fill in the warranty card and claim valid receipt. ◆Kirisun and our authorized partners own the intellectual property of all the parts of this product (including accessories). Any design and materials may not be modified, copied, extracted or translated without authorization of Kirisun or its authorized parities.
  • Page 3 User Manual DP990 DMR Two Way Radio Safety Precaution ◆ he radio can only be repaired or maintained by professional technicians. The user must not disassemble the radio at liberty. ◆In order to avoid problems caused by electromagnetic interference or electromagnetic incompatibility, please turn off the radio in the place such as hospital, plane and other health care centers where there is a sign such as “Turn off Your Radio”.
  • Page 4 User Manual DP990 DMR Two Way Radio Battery ◆If the conductive substance on human body makes contact with the exposed battery terminal, it may damage your belongings, and/or do harm, such as burning, to human body. Conductive material includes jewelry, keys or bead-like necklace. They can form a loop (it causes short circuit) with battery and cause skin burn after the rapid temperature rise.

  • Page 5: Table Of Contents

    User Manual DP990 DMR Two Way Radio Content UNPACKING AND CHECKING ................... - 2 - BATTERY INFORMATION ................... - 3 - INTRODUCTION......................- 7 - BASIC OPERATION ..................... - 9 - INITIATING/RECEIVING A CALL ................- 13 - SHORT MESSAGE ..................... - 14 - EMERGENCY ......................
  • Page 6 User Manual DP990 DMR Two Way Radio MAJOR TECHNICAL SPECIFICATION ..............- 42 - FCC STATEMENT ....................- 47 -...

  • Page 8: Unpacking And Checking

    User Manual DP990 DMR Two Way Radio 1 Unpacking and Checking Please carefully open the box, and check if the accessories listed below are contained in the package. For any missed or damaged item, please contact your local dealer for solution.

  • Page 9: Battery Information

    User Manual DP990 DMR Two Way Radio 2 Battery Information Battery Charging 1) Plug the power adaptor in the proper socket of AC power. 2) Plug the cable of the power adaptor at the back of the socket, and the green indicator glows.
  • Page 10 User Manual DP990 DMR Two Way Radio it should be charged repeatedly to gain full battery capacity. The battery should be at least charged once every three months. When the battery is fully charged or the battery power is above the level of low power alert, ...
  • Page 11 User Manual DP990 DMR Two Way Radio Detaching the Battery For detaching the battery, please turn off the radio. As shown on the right picture, lift the battery latch to bounce the battery, and slide the battery downwards to take it out.
  • Page 12 User Manual DP990 DMR Two Way Radio 2.5 Attaching the Audio Accessories Connect the audio accessory in the port and fix it with screw 2.6 Attaching the Belt Clip Align the two screw holes in the belt clip with the holes at the back of the radio, and fix them together with screws.

  • Page 13: Introduction

    User Manual DP990 DMR Two Way Radio 3 Introduction...
  • Page 14 User Manual DP990 DMR Two Way Radio Part Name Part Name Part Name Antenna Belt Clip Up Key Side Key 1 Digital Key LCD Display Screen PTT Key Battery Latch Comm Port Side Key 2 Battery LED Indicator Menu/OK Key...

  • Page 15: Basic Operation

    User Manual DP990 DMR Two Way Radio Basic Operation Powering on/off To power on the radio, turn the power/volume knob clockwise until a click is heard; the LCD screen displays the power-on image and the backlight is on automatically; an alert tone and a sligt vibrating hint (created by motor)will sound and shake at the same time .
  • Page 16 User Manual DP990 DMR Two Way Radio 4) Press【OK】 key to switch to the selected zone. 4.4 Selecting the Channel Turn the channel selector knob to select channel Each channel can be configured as analogue or digital. Turn the channel selector knob to switch between digital and analogue channel.
  • Page 17 User Manual DP990 DMR Two Way Radio 7) Press to enter the menu item 8) Press to return to the last menu or the main interface. 9) Press to return to the main interface. Icon Signal strength More bars indicate stronger signal and less bars weak signal. It only show up when receiving.
  • Page 18 User Manual DP990 DMR Two Way Radio Emergency Encryption Man Down Talkaround GPS is receiving GPS positioned Icon whirling indicates it is scanning The scan stays on priority channel 1 The scan stays on priority channel 2 IDType： Private call...

  • Page 19: Initiating/Receiving A Call

    User Manual DP990 DMR Two Way Radio LED Indication Red Indicator glows：the radio is transmitting. Green Indicator glows: the radio is receiving signals (speech message, text message and data) or it detected activity on the channel. Orange indicator glows: orange indicator glows during the call hang time in digital mode or auto reset time in analog mode.

  • Page 20: Short Message

    User Manual DP990 DMR Two Way Radio 5.4 Receiving/Responding to a Call 1) LED indicator glows. 2) LCD displays icon of call type ( private call, group call, all call), alias or ID and incoming icon 3) Broadcasts received call.
  • Page 21 User Manual DP990 DMR Two Way Radio Enter text contents through keypad. Press to move the cursor to the right/left. Press【#】 key to switch typewriting and 【*】 key to switch to lower/upper case. In the non-digital input mode, press【1】 key to enter punctuation.
  • Page 22 User Manual DP990 DMR Two Way Radio 3) Select “template” and enter quick message list. 4) Select the target quick message in the list and press OK key to enter the editing interface. You can edit the quick message. 1) Press OK key to send, save or delete the edited message.
  • Page 23 User Manual DP990 DMR Two Way Radio 3) Select “Status Message” and enter status message list. 4) Select the target status message and press OK key to enter the interface of status message. 5) Press “Send” key and enter the “Contact” interface.
  • Page 24 User Manual DP990 DMR Two Way Radio Deleting Short Message You can delete the message that is sent, received or saved. 6.5.1 Deleting the Message by Batch 1) Press to enter the menu. 2) Select and enter “ short message” menu.

  • Page 25: Emergency

    User Manual DP990 DMR Two Way Radio 7 Emergency During emergency, you can send a confirmed emergency alarm and an emergency voice message to the specified radio group. You can initiate an emergency alarm anytime even when it is receiving signals.
  • Page 26 User Manual DP990 DMR Two Way Radio icon is and the outgoing call icon is 2) When the radio receives response, the LCD will show “Emergency Alarm Succeeded”. If the radio failed to receive response and when the retry count is used up, the LCD will show “Emergency Alarm Failed”。...

  • Page 27: Call Log

    User Manual DP990 DMR Two Way Radio 7.3 Exiting Emergency Alarm The radio will exit the alarm mode under the circumstances listed below:  Receives emergency alarm response on Emergency alarm mode.  The emergency alarm retry count is used up and no response is received.
  • Page 28 User Manual DP990 DMR Two Way Radio 2) Select the target record which needs to be saved and you can press OK key to check, save or delete the target record. 3) Select “Save” and enter the interface for adding contact.

  • Page 29: General Setting

    User Manual DP990 DMR Two Way Radio 9 General Setting Language Selection You can switch the radio languages. 1) Press in the home screen to enter the menu. 2) Select and enter “ setting” menu. 3) Select “Language Selection” and enter the interface.
  • Page 30 User Manual DP990 DMR Two Way Radio “Information Alert Tone” – enables/disables the alert tone of receiving short message. “Finished Call Alert Tone” – enables/disables the alert tone of finished call. Press OK key and the LCD will show “Operation Succeeded” and save the alert tone.
  • Page 31 User Manual DP990 DMR Two Way Radio 4) Press OK key and the LCD will show “Operation Succeeded”. The vibration alert will be saved. Power Level Setting You can set high/low power for each channel. 1) Press in the home screen to enter the menu.
  • Page 32 User Manual DP990 DMR Two Way Radio Press OK key and the LCD will show “Operation Succeeded”. The auto lock time is saved. During the set time, the keypad will be locked automatically if no operation is performed on it.
  • Page 33 User Manual DP990 DMR Two Way Radio 4) Select the backlight duration for the screen. 5) Press OK key and the LCD will show “Operation Succeeded”. The time setting for turning off the screen will be saved. During the set time, the radio will turn off the screen if no operation is performed.
  • Page 34 User Manual DP990 DMR Two Way Radio 9.10 Squelch Level Setting You can adjust the squelch level based on different situation to remove unnecessary calls in weak signals。 This setting is valid on analogue channel. 1) Press in the home screen to enter the menu.

  • Page 35: Advanced Features

    User Manual DP990 DMR Two Way Radio 10 Advanced Features 10.1 Radio Check Radio Check feature is used to check whether the target radio is activated in the system. The target user will automatically send a response to the caller radio without any audible or visual indication.
  • Page 36 User Manual DP990 DMR Two Way Radio 10.2 Call Alert Call Alert feature allows the caller radio to request the target radio to call back. 10.2.1 Receiving and Responding to Call Alert 1) When the radio received call alert, it will automatically reply if call alert decode is enabled.
  • Page 37 User Manual DP990 DMR Two Way Radio Note：  If you press when sending “call alert”, the radio will exit the call alert mode.  If the retry count is used up and no response is received, the radio will automatically stop sending call alert and display “Call Alert Failed”...
  • Page 38 User Manual DP990 DMR Two Way Radio 3) Select “Stun/Un-stunned”. 4) Enter “Contact List” and select the target private call contact. The screen shows the alias or ID of the target radio and the radio indicates that it is sending stun/un-stun signaling.
  • Page 39 User Manual DP990 DMR Two Way Radio Note:  Once the radio is killed, the configuration data will be lost and the radio cannot go back to normal after reboot, so please operate with due care!  The killed radio can only be revived by authorized dealer or supplier.
  • Page 40 User Manual DP990 DMR Two Way Radio Note:  If you press when the radio is sending remote monitor signaling, it will stop and exit the remote monitor mode.  If the retry count is used up and no response is received, the radio automatically exits the mode and shows”Remote Control Failed”.
  • Page 41 User Manual DP990 DMR Two Way Radio 10.6.2 Editing the Scan List 1) Press in the home screen to enter the menu. 2) Select and enter “ Scan” menu. 3) Select “Editing Scan List”. You can operate as below on the scan list: Add: add the target channel to the scan list.
  • Page 42 User Manual DP990 DMR Two Way Radio 3) Wait for the alert tone of transmission permission to end and speak to the microphone. 4) Release PTT key to receive. 5) If you did not respond during the scan hang time，the radio will go on to scan other channels.
  • Page 43 User Manual DP990 DMR Two Way Radio 2) Select and enter“ Application” menu. 3) Select “VOX” and enter “VOX” interface. 4) Select and enter “VOX Level” interface. 5) Press【Up】key or【Left】key to increase VOX level or【Down】key or【Right】key to decrease VOX level.
  • Page 44 User Manual DP990 DMR Two Way Radio 4) Select and enter “GPS Switch” interface. 5) Select “On” or “Off” to enable/disable GPS. 10.9.3 Enabling/disabling GPS 1) Press in the home screen and enter the menu. 2) Select and enter “...
  • Page 45 User Manual DP990 DMR Two Way Radio 10.12 Bluetooth 1） Press in the home screen and enter the menu. 2） Select and enter “ Bluetooth” menu. 3） Select “Bluetooth Switch” and enter the interface. “Enable Bluetooth” or “Disable Bluetooth” to enable/disable Bluetooth.

  • Page 46: Troubleshooting

    User Manual DP990 DMR Two Way Radio 11 Troubleshooting Troubleshooting Causes and Solutions A．Check if the battery is used up –charge the battery or change it if the power is out. B. Check if the power connecting pole is in proper contact with Failed to power on battery –try again after re-attachment.

  • Page 47: Antenna

    User Manual DP990 DMR Two Way Radio A. Poor antenna contact – fix the antenna. Failed receive B. Wrong RX/TX frequency – select the same TX/RX frequency. signals C. Beyond communication scope. The green indicator A. Check if the volume is at its lowest level – increase volume.
  • Page 48 User Manual DP990 DMR Two Way Radio 12 Major Technical Specification General Specification Frequency Range UHF: 400-470MHz, Channel Capacity 1024 Channel Spacing 12.5kHz/20kHz/25kHz Weight 386 g (with battery and antenna) Size 135.8mm*63.5mm*39.1mm （height*width*thickness） Display 1.8 inches 65535 kind of color display Battery Capacity 7.4V 2000mAH lithium-ion battery...
  • Page 49 User Manual DP990 DMR Two Way Radio Work Environment Work Temperature -30℃~+60℃ Storage Temperature -40℃~+85℃ IP Rating IP67 Electrostatic Protection ±4kV (in contact) / ±8kV (air） Military Standard MIL-STD-810 C/D/E/F/G Damp proof MIL-STD-810 C/D/E/F/G Shock and Vibration MIL-STD-810 C/D/E/F/G...
  • Page 50 User Manual DP990 DMR Two Way Radio Frequency Stability ±1.5ppm Analogue RX Sensitivity 0.3uV（12dB SNR）/0.22uV（12Db SNR, typical） Digital RX Sensitivity 0.3uV（5% bit error rate） Inter-modulation ETSI: 65dB TIA603: 70dB Adjacent Channel Selectivity ETSI/TIA603：60dB@12.5kHz，70dB@20/25kHz Spurious Response ETSI/TIA603：70dB Suppression Conduction Spurious -57dBm...
  • Page 51 User Manual DP990 DMR Two Way Radio ± 2.5ppm Frequency Stability TX Power Low: 1W; High: 4W Voice and Noise -40dB@12.5kHz Conduction Spurious -36dBm@<1GHz，-30dBm@>1GHz Radiation Adjacent Channel Power 60dB@12.5kHz 9K84F3E@12.5kHz FM Modulation 12.5kHz（data only）：7K24FXD 4FSK Modulation 12.5kHz（data + voice）：7K24FXW Modulation Limit ±2.5kHz@12.5kHz,...
  • Page 52 User Manual DP990 DMR Two Way Radio TTFF（cold start）initial positioning time <1 min TFF（hot start）initial positioning time <10 seconds...

  • Page 53: Fcc Statement

    User Manual DP990 DMR Two Way Radio 13 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 54 User Manual DP990 DMR Two Way Radio -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
