Device Installation - Dahua Technology IPC-HFW81230E-Z Quick Start Manual

2 Device Installation

Important
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.

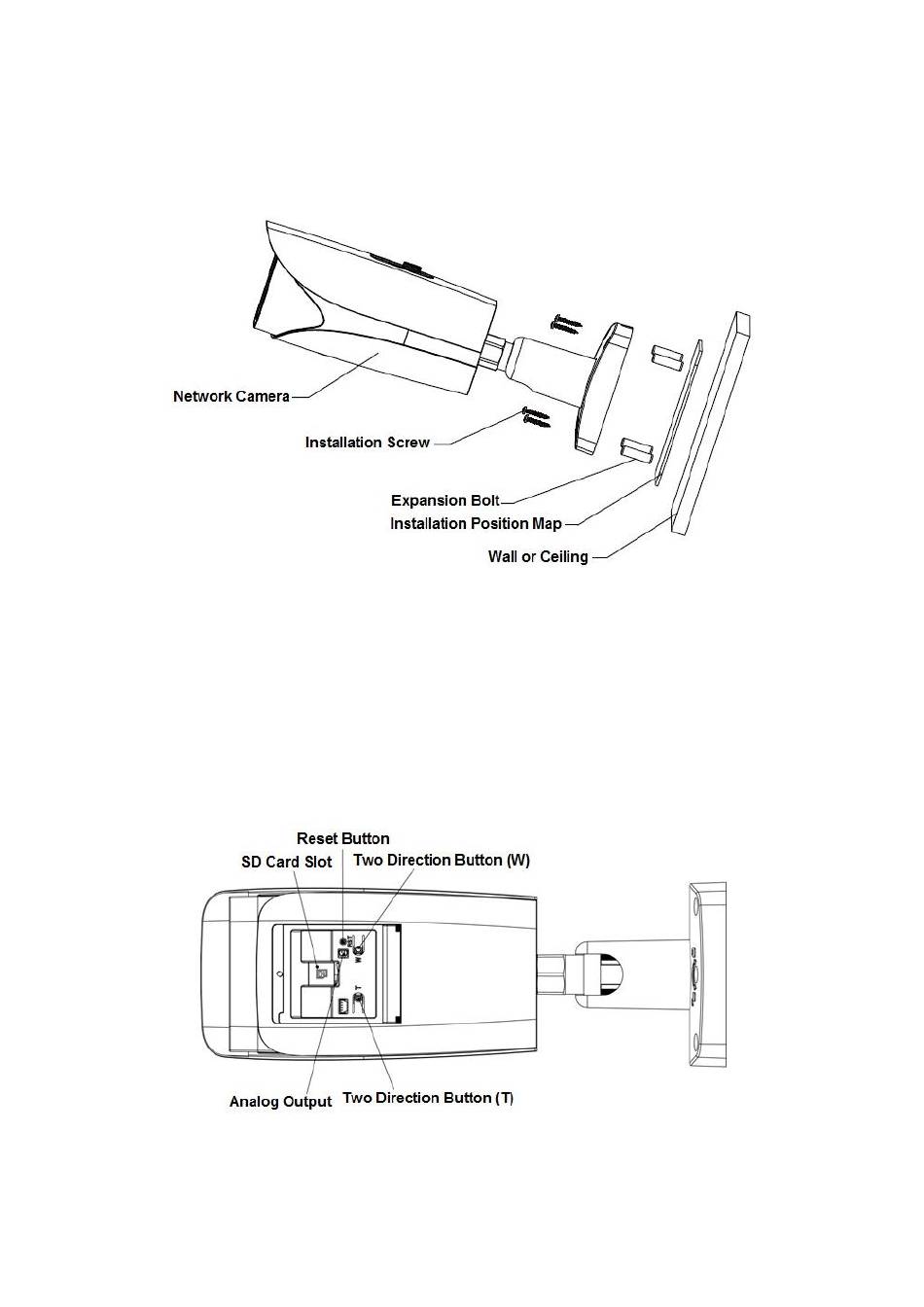

Please see Figure 2-1.
Step 1
SD card installation (Optional)

You can see the SD installation card slot, analog output, two direction button and reset
button after you open the lower cover.

Insert the SD card into the slot which is shown in Figure 2-2, you can press the SD card
slightly to insert it because the card slot is elastic.
Figure 2-1
Figure 2-2
