4 Device Installation

Important
Before the installation, please make sure the installation environment can at least support 3x weight of
the camera.

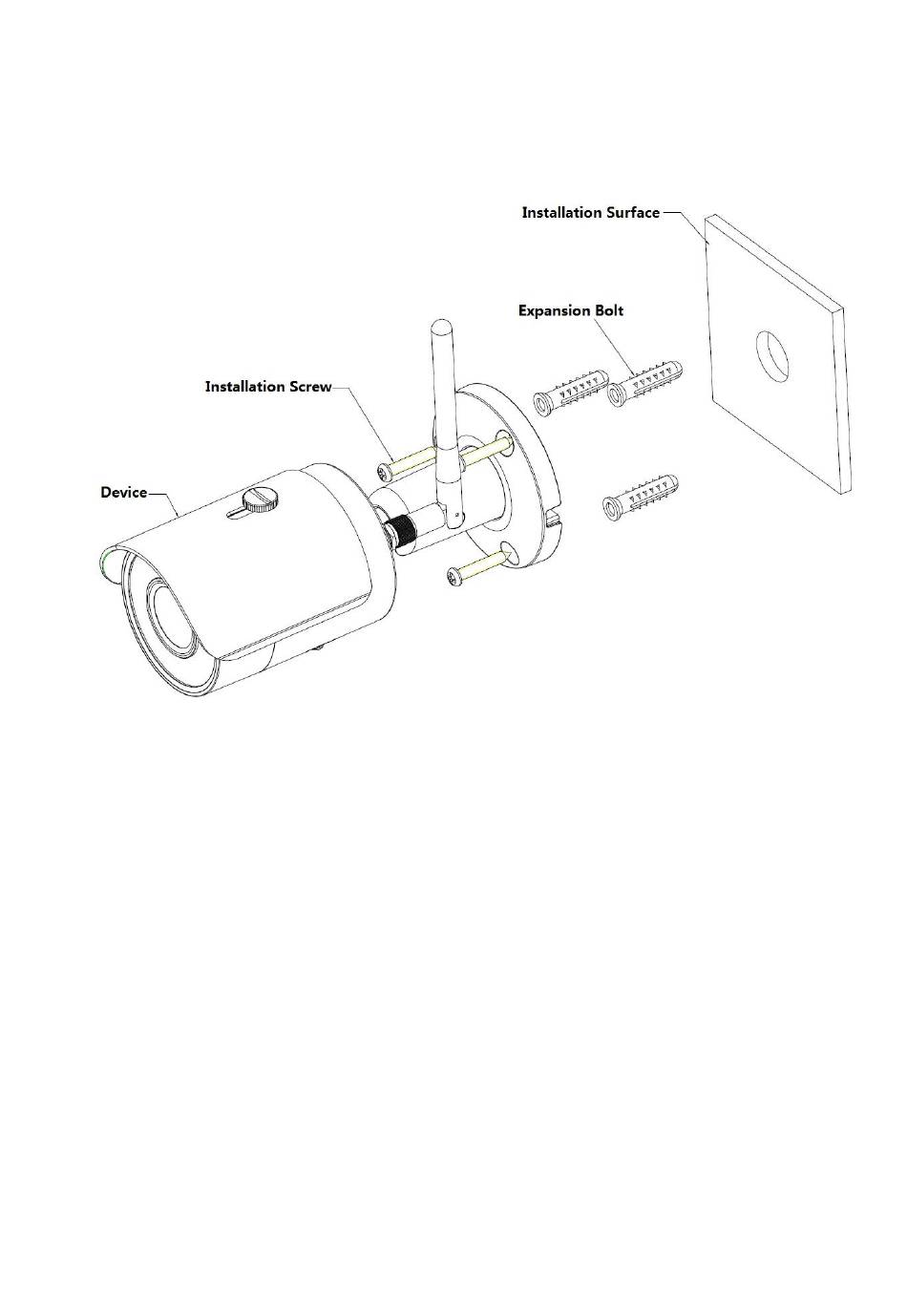

Figure 4-1
Please see Figure 4-1 and Figure 4-2.
Step 1
Dig holes on the installation surface (wall or ceiling).
Step 2
Open accessories bag, take out expansion bolt and insert it into the hole you just dug.
Step 3
Open accessories bag, take out installation screws. Tighten the screws to fix the device on the
installation surface (wall or ceiling). You can move device sunshade back and forth. When you have
fixed the device, you must tighten screws on sunshade.
Step 4
Plug external wiring of the device properly.
