1 Device Structure

1.1 Device External Cable

Note:
The following figure is for reference only, which is used to know the function of cable port.
There are differences about cable structure between different models, please refer to the actual
product for more details.

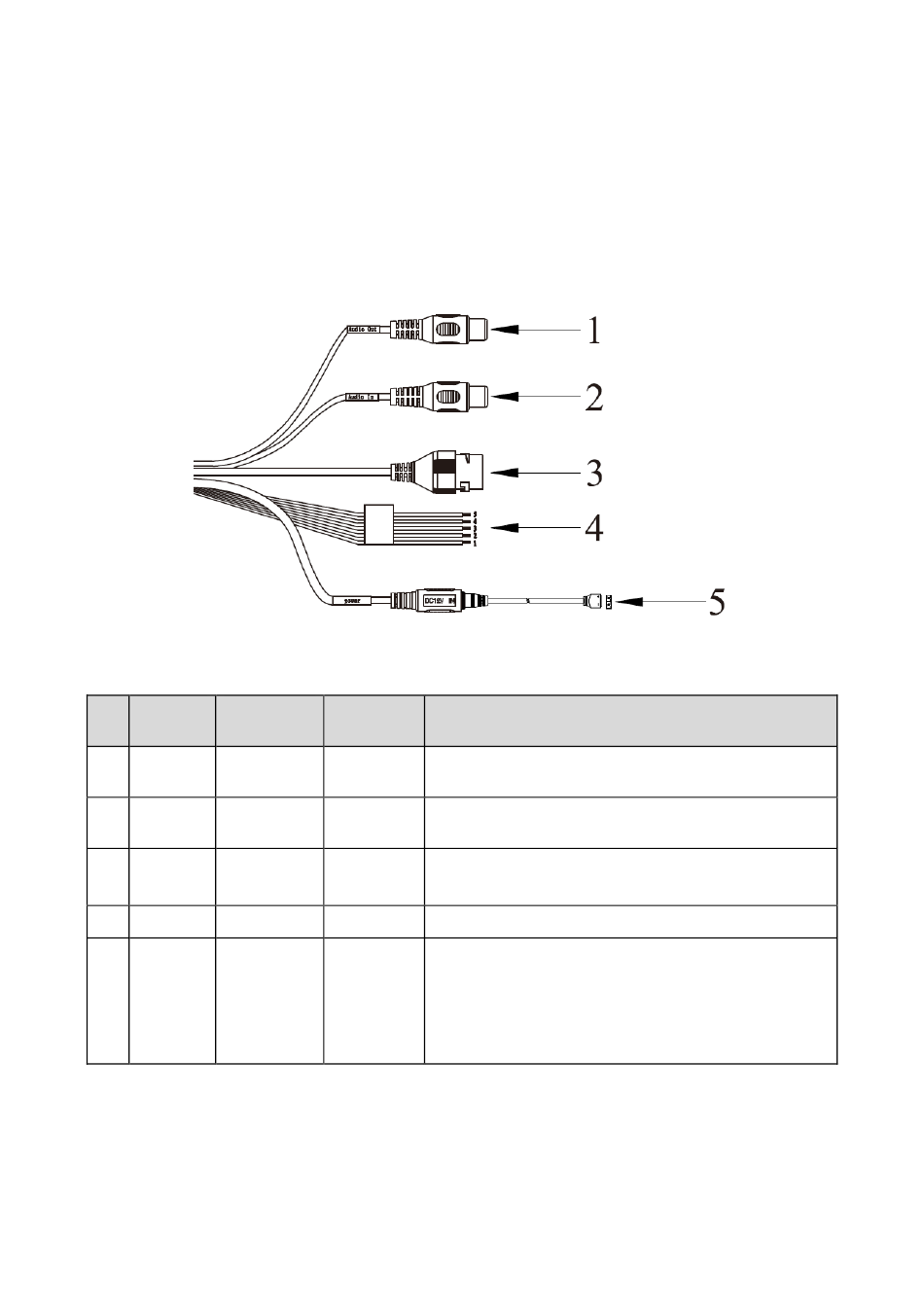

You can refer to the following figure for cable information. See Figure 1-1
Please refer to the following sheet for detailed information.
No. Port Function
Name
1 AUDIO Audio
OUT output port
2 AUDIO Audio input
IN port
3
Network
LAN
port
4 I/O I/O port
5
Power input
Power
port
Please refer to the follow sheet for detailed pin information.
Figure 1-1
Connector Note
RCA Output audio signal to speaker and etc.
Input audio signal, receive analog audio signal from
RCA
pick up and etc.
Connect to standard Ethernet cable.
Ethernet
port
Note: Some series don't support PoE.
- Alarm signal input/output.
Power port. Input DC 12V or AC 24V power.
Note:
/
Please connect the DC5.5 round port to 2-pin
converter cable when you are using AC 24V power.
Please use according to device tag.
