Summary of Contents for Queclink GL300W

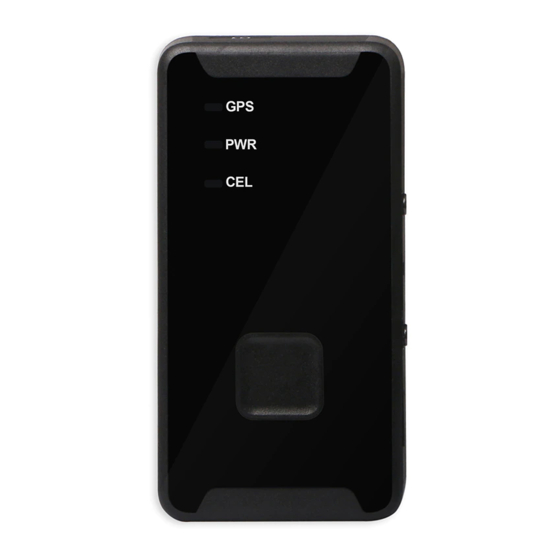

- Page 1 WCDMA Tracker GL300W User Manual TRACGL300WUM001 Version:1.00 ...
-
Page 2: Contents
GL300W User Manual ... -
Page 3: Table Of Contents
GL300W User Manual ... -
Page 4: Revision History
GL300W User Manual ... -
Page 5: Introduction
Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its WCDMA allows the GL300W's location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. -
Page 6: Product Overview
2.2. Buttons/Mini USB Interface Description Button /Mini USB Interface Description Power Key Turn on GL300W Turn off GL300W when without charging. (If power key is enabled) Function Key Geo‐Fence mode Long press the key to enable/disable Geo-Fence ID0 ... -
Page 7: Leds Description
The Pin2 on Mini-USB connector are used for charging and named as VCHG pin, It can be connected to a 5V DC power supply to power GL300W and charge the internal battery. TRAC SuperEasyUM001 2 ... -
Page 8: External Battery Interface
The Pin 8 on Mini-USB connector is for external battery and named as EXTBAT pin, It can be connected to 3.7V Li-ion or Li-Polymer battery to power GL300W. 2.5. Ignition Detection The Pin 7 on Mini-USB connector is for ignition detection when GL300W is used in vehicle tracking application, It is named as IGN_IND pin. Another easy way is to connect PIN7 to a power output in the fuse box of the vehicle which ... -
Page 9: Getting Started
Inactive 1.7V to 32V or Open An input example is shown as following figures: Example of NSW pin connect to a panic button 3. Getting Started 3.1. Parts List Name Picture Remark GL300W Locater The WCDMA/GPRS/GPS locator. AC‐DC Power Adapter It is used to charge the internal (Standard accessory) battery of GL300W. ... -
Page 10: Battery Charging
Please connect AC‐DC power adapter with GL300W. Insert the AC‐DC power adapter into the power socket. During charging, the PWR LED is flashing fast. When the battery is full charged, the PWR LED will be Ever‐light. You can also charge the battery by USB cable which connects GL300W with the PC. Charging time is about 5 hours. Note: Before the first time using GL300W, please full charge the battery. 3.3. GL300W External Cable Interface GL300W External Cable is a cable with a Mini USB connector and six wires which include the external power interface, ignition detect and input interface for GL300W. Please find the detail description in following table. Color Name Remark RED ... -
Page 11: Turn On/Turn Off
White Ignition Detect Please refer to 2.5for detail Green NSW（negative trigger input） Please refer to 2.6 for detail 3.4. Turn on/Turn off Turn on: Method 1: Press the Power key at least 3 seconds and release it to turn on GL300W. At the same time, PWR LED will light on. Method 2: Connect device to charger or external battery, and it will turn on automatically, PWR LED will light on. Turn off: Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then turn off, it indicates that GL300W is turned off. The time of power off is depended on the quality of network. The maximum time of power off is 90 seconds. It is only valid to ... -
Page 12: Troubleshooting And Safety Info
The function of power key was Enable the function of power GL300W. disabled by AT+GTFKS. key by AT+GTFKS. Unable to power off GL300W if Disconnect charger or external charger connected or using battery, and try again. external battery. No response from UART... - Page 13 ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information and Statement: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue, and the SAR limit of Eu (CE) is 2 W/kg averaged over one gram of tissue. Device types: GL300W (FCC ID:YQD‐GL300W) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use on the body is 1.375W/kg for 1g(FCC) and for 10g(CE) is 0.857W/kg. The safety distance is 6.2cm for this device. TRAC SuperEasyUM001 8 ...
