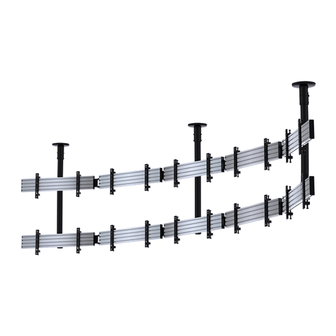

BT8343
CURVED UNIVERSAL CEILING MOUNTED
VIDEOWALL MOUNTING SYSTEM
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended screen size: 32"- 70"
• Max weight per screen: 50kg (110lbs)
• Suitable for landscape or portrait mounting
• Angle adjustment range: +/- 45° between screens
• Safety screws help prevent unauthorised removal of screens
• All mounting hardware included
Note: This assembly manual covers di erent installations. Some
parts or procedures shown may not be required for installation.
Please refer to page 5
for VESA® xings
www.btechavmounts.com
TM
PER SCREEN
Advertisement
Related Manuals for B-Tech System X BT8343
Summary of Contents for B-Tech System X BT8343
- Page 1 BT8343 CURVED UNIVERSAL CEILING MOUNTED VIDEOWALL MOUNTING SYSTEM INSTALLATION GUIDE SPECIFICATIONS • Recommended screen size: 32”- 70" • Max weight per screen: 50kg (110lbs) • Suitable for landscape or portrait mounting • Angle adjustment range: +/- 45° between screens • Safety screws help prevent unauthorised removal of screens •...
- Page 2 It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained. B-Tech AV Mounts recommends that a suitably quali ed person is used for the removal of this product.
- Page 4 BT8343 PARTS LIST Due to the multiple installations available the quantity for each option below is dependent on the mount ordered. All these components can be moved or carried by manpower. Please be careful to avoid injury when PLEASE KEEP THIS FOR FUTURE REFERENCE handling these components before &...
- Page 5 ANGLE BT8390-AAC ADJUSTMENT CONNECTOR ITEM PART NAME PER PACK ANGLE CONNECTOR M8 x 16mm SCREW M8 WASHER M8 x 12mm SCREW M8 SLIDING NUT 5AF HEX KEY BT7824 OPTIONAL POLE EXTENSION KIT ITEM PART NAME PER PACK BT7823 EXTERNAL JOINER M8 GRUB SCREW PART NAME ITEM...
-
Page 6: Typical Installations
TYPICAL INSTALLATIONS 3 x 2 Videowall installation with VESA 400 Micro-Adjustment arms Crosshead Drill Level (Optional) Pencil screwdriver INSTALLATION TOOLS REQUIRED... - Page 7 OPTIONAL COMBINING THE EXTENSION POLES BT7823 INTERNAL POLE JOINER iii. Slide item B1 onto the bottom of item G1 and i. Insert item G1 into the bottom of item B1, lining align the bottom screw holes on item G1 up the top screw holes on item G1 with the holes with the holes on the pole.
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS ASSEMBLE COLLARS ONTO RAILS Assembly using 2 single collars i. Attach item C1 onto item D1. Note: Ensure items C2 are positioned on the back of item C1. ii. Insert 2x item D2 into the top channel of item E1 and 2x item D2 in the bottom channel. - Page 9 FIX ANGLE CONNECTORS TO MOUNTING RAILS i. Insert 4 x item F5 into the end of item E1 (2 in each centre channel). ii. Assemble items F2 & F3 to item F1. Note: Do not fully tighten the screws and washers.
- Page 10 iii. With the rails at on the oor, connect item F1 to 2x item E1 using items F3, F4 & F5. Note: Make sure all rails are xed using the same positions on item F1*. *Note: The rail xing positions used on item F1 are dependent on the size of screens being used. For help with the rail xing postion contact: technical@btechavmounts.co.uk...
- Page 11 FIX ANGLE Set the angle required on item F1 and fully tighten all screws using item F6.
- Page 12 CEILING PLATE FIXING DIMENSIONS MOUNT CEILING PLATES Fix item A1 to the ceiling using suitable xings (not supplied). 10.5mm CEILING Optional depending on the type 120mm of ceiling Note: Space item A1 the same distance apart as item C1 on item E1. CABLE MANAGEMENT HOLE...
- Page 13 FIX RAILS TO POLES i. Using item C1, slide item E1 up onto item B1 and position the rail for the top row of screens. ii. Tighten items C2 on the back of item C1 to secure rail to pole. iii.
- Page 14 iv Slide the bottom rail onto item B1 and align the pole hole with the collar hole. Fasten items C2 on the back of item C1. v. Insert item C3 through item C1 & B1, securing the rail to the pole. vi.
- Page 15 ATTACH INTERFACE ARMS TO SCREEN Fix items H1 & H2 to the rear of the screen using items A - N. Note: Ensure the arms are facing the correct way round and the same holes are used on both arms. SCREEN FIXING KIT Note: Use spacers for screens with recessed xings SCREEN...
- Page 16 HOOK SCREEN ONTO RAIL i. Hook the rst screen onto the bottom item B1. ii. Using a level, align the screen to the oor using the Y axis adjustment knob on items H1 & H2* *Only available with Micro-adjustment arms See page 17.
- Page 17 HOOK THE REMAINING SCREENS ONTO THE RAILS Starting from the bottom rail, hook the remaining screens onto rails using a plumb to align. After mounting each screen use the Y & Z micro-adjustment knobs on items H1 & H2* to level and align screens. Note: A 1mm gap between screens should be maintained.
-
Page 18: Ceiling Mount
BT8343 DIMENSIONS Depending on installation requirements, the BT8343 Video Wall Ceiling Mounting Kit will feature a selection of the following products. PLEASE KEEP THIS FOR FUTURE REFERENCE CEILING MOUNT EXTENSION POLE BT7822 BT7850 REAR VIEW 35.7mm POLE ASSEMBLY EXAMPLE USING 1M POLE BT7822 120mm TOP VIEW... -
Page 19: Mounting Rails
500mm 705mm 505mm BT8390-150 1500mm 1505mm BT8390-175 1750mm 1755mm BT8390-200 2000mm 2005mm 30mm 30mm 8.2mm 30mm 30mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 20 ©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
