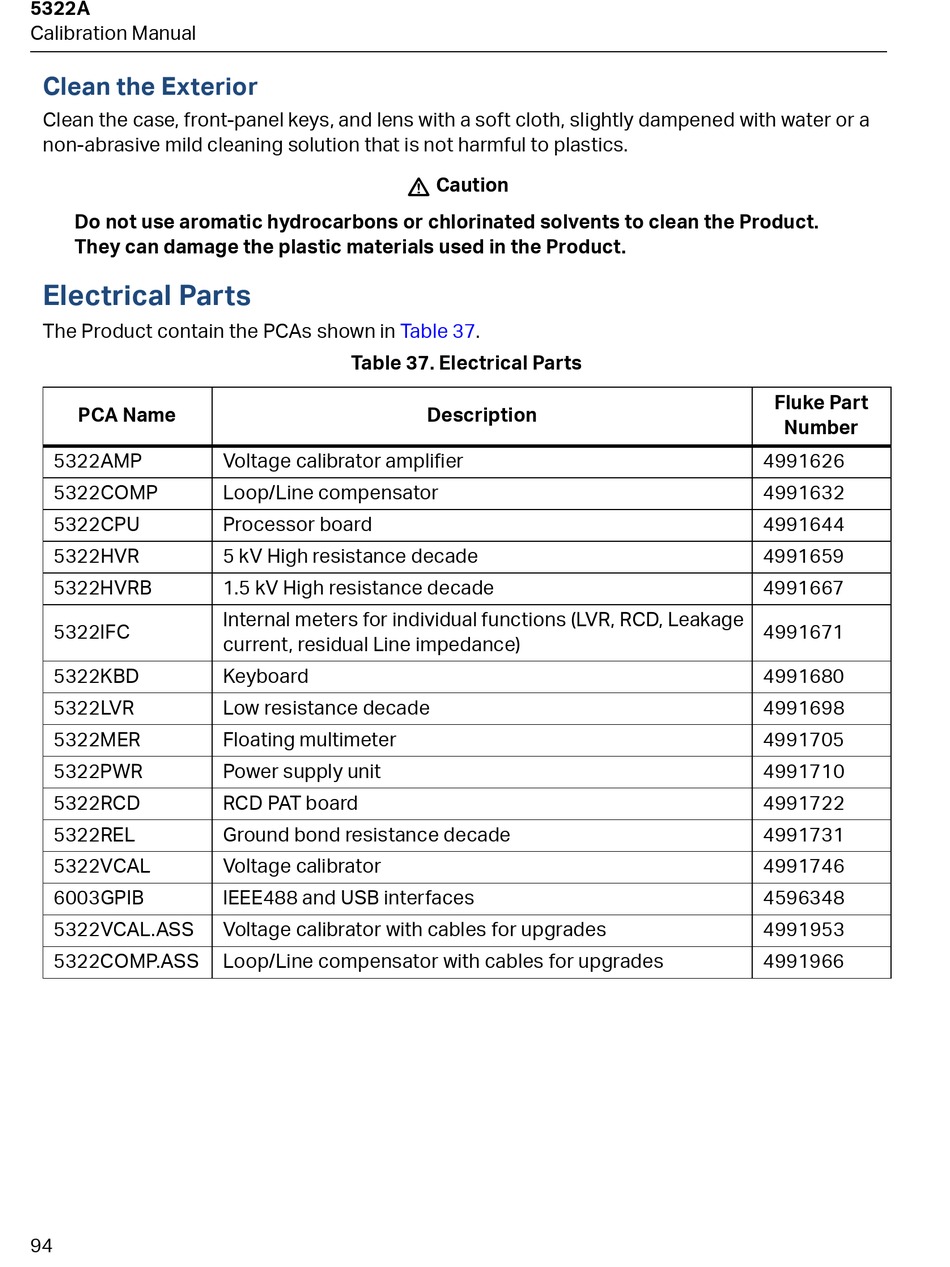

Clean the Exterior
Clean the case, front-panel keys, and lens with a soft cloth, slightly dampened with water or a
non-abrasive mild cleaning solution that is not harmful to plastics.
Do not use aromatic hydrocarbons or chlorinated solvents to clean the Product.
They can damage the plastic materials used in the Product.
Electrical Parts
The Product contain the PCAs shown in
PCA Name
5322AMP
5322COMP
5322CPU
5322HVR
5322HVRB
5322IFC
5322KBD
5322LVR
5322MER
5322PWR
5322RCD
5322REL
5322VCAL
6003GPIB
5322VCAL.ASS
5322COMP.ASS
94
Table
Table 37. Electrical Parts
Voltage calibrator amplifier
Loop/Line compensator
Processor board
5 kV High resistance decade
1.5 kV High resistance decade
Internal meters for individual functions (LVR, RCD, Leakage
current, residual Line impedance)
Keyboard
Low resistance decade
Floating multimeter
Power supply unit
RCD PAT board
Ground bond resistance decade
Voltage calibrator
IEEE488 and USB interfaces
Voltage calibrator with cables for upgrades
Loop/Line compensator with cables for upgrades
W Caution
37.
Description
Fluke Part
Number
4991626
4991632
4991644
4991659
4991667
4991671
4991680
4991698
4991705
4991710
4991722
4991731
4991746
4596348
4991953
4991966
