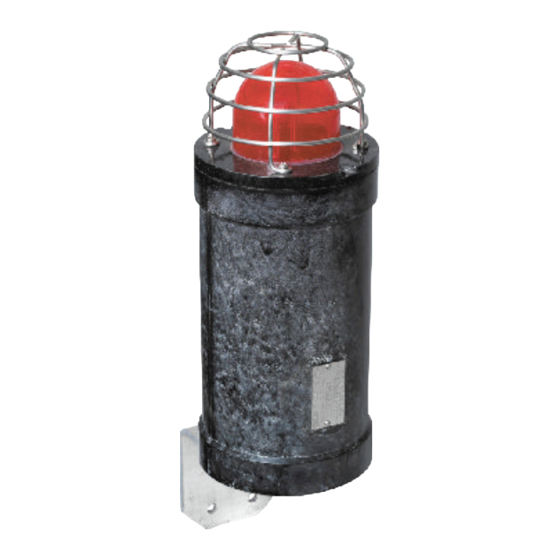

  • Page 1 Technical manual Xenon beacon - XB10...

  • Page 2: Disclaimer Of Warranties And Limitation Of Liability

    ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
  • Page 3 These units also have the following approvals ........... . . 3 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 4 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...

  • Page 5: Installation

    All cable glands should be of an equivalent NEMA/IP torque on the cover screws is between 2.5 – 3.0Nm. rating to that of the beacon and integrated with the unit such that this rating is maintained. Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...

  • Page 6: Operation

    PFPE (Perfluoropolyether) based grease such as Krytox GPL203 by DuPont or Perfluorolube 22/6 by Performance Fluids Ltd should be used, to prevent damage to the O-ring. Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...

  • Page 7: Special Conditions For Safe Use

    Signifies suitability for use in a zone 1 area Dips and Interruptions (AC) to EN61000-6-2:2005/ Signifies suitability for use in the presence of gases IEC61000-4-11:2004 Ingress protection IP66 to BS EN 60529:1992 Ingress protection IP67 to BS EN 60529:2001 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 8 Ces unités disposent également des conformités suivantes ......... . 7 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 9 à la terre. Tous les presse-étoupes doivent présenter un indice NEMA/IP équivalent à celui du feu et être intégrés à l’unité de façon à assurer le maintien de sa classification. Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 10 être ré-appliquée, une graisse de type PFPE (perfluoropolyéther) comme la Krytox GPL203 de DuPont ou Perfluorolube 22/6 de Performance Fluids Ltd doivent être utilisées afin d’éviter d’endommager le joint torique. Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 11 1 Signifie que l’équipement est adapté à une Creux et interruption (CA) EN61000-6-2:2005/ utilisation en présence de gaz IEC61000-4-11:2004 Ingress protection (IP66) BS EN 60529:1992 Ingress protection (IP67) BS EN 60529:2001 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 12 Diese Geräte besitzen auch die folgenden Genehmigungen ......... .11 Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 13 0,5Nm en 0,6Nm. Leitende MEDC empfiehlt die korrekte Identifizierung aller Kabel und Kerne. Informationen hierzu finden Sie im Schaltplan Metallteile (einschl. Kabeldurchführungen) müssen des Produkts. mindestens 5mm Abstand von den Klemmen haben Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...

  • Page 14: Betrieb

    ACHTUNG: Stellen Sie vor dem Abnehmen der kompetentes Personal vor Ort erfolgen (siehe unten). Abdeckungseinheit sicher, dass der Energiefluss durch Weitere Reparaturen erfordern die Einsendung der Einheit die Einheit isoliert ist. an MEDC. Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 15 Das ATEX-Zertifikat und das Typenschild sind mit der (Wechselstrom) gemäß EN61000-6-2:2005 / ATEX-Gruppe und der Kategorie-Kennzeichnung versehen: IEC61000-4-11:2004 II 2 G Schutzklasse IP66 gemäß BS EN 60529:1992 Schutzklasse IP67 gemäß BS EN 60529:2001 Hierbei gilt: Xenon beacon - Xb10 TM102.L May 2022 www.eaton.com...
  • Page 16 Photos and pictures also do not warrant a specific layout or functionality. Their use in whatever form is subject to prior approval Eaton by Eaton. The same applies to Trademarks (especially Eaton, Moeller, EMEA Headquarters and Cutler-Hammer). The Terms and Conditions of Eaton apply, as Route de la Longeraie 7 referenced on Eaton Internet pages and Eaton order confirmations.
