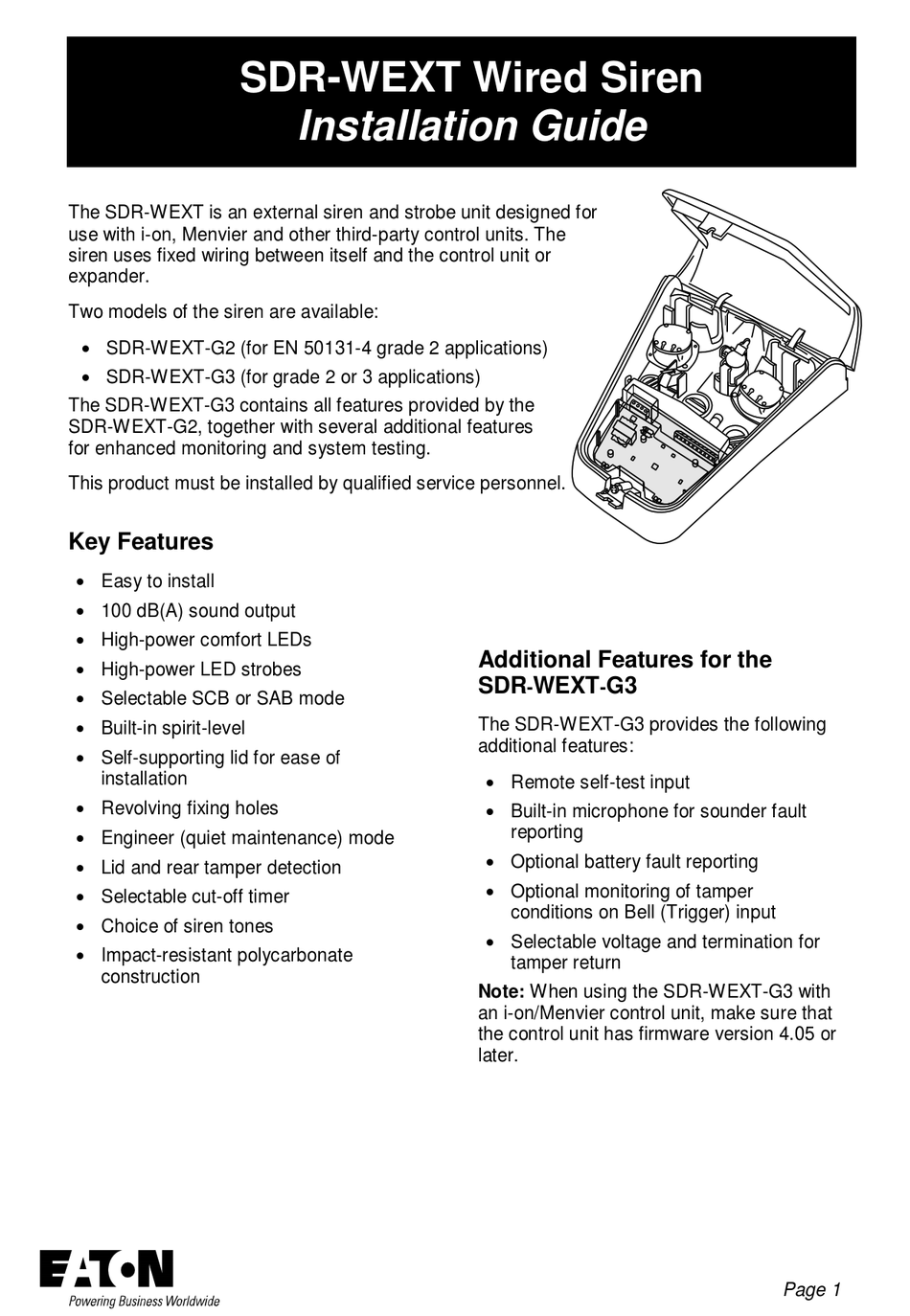

Eaton SDR-WEXT Installation Manual

SDR-WEXT Wired Siren

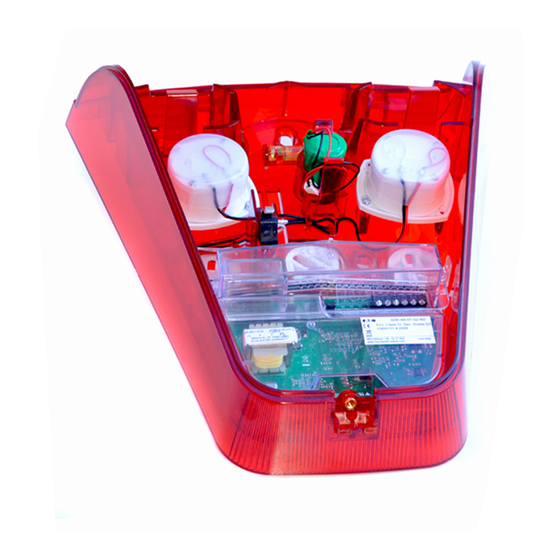

The SDR-WEXT is an external siren and strobe unit designed for
use with i-on, Menvier and other third-party control units. The
siren uses fixed wiring between itself and the control unit or
expander.
Two models of the siren are available:
 SDR-WEXT-G2 (for EN 50131-4 grade 2 applications)
 SDR-WEXT-G3 (for grade 2 or 3 applications)
The SDR-WEXT-G3 contains all features provided by the
SDR-WEXT-G2, together with several additional features
for enhanced monitoring and system testing.
This product must be installed by qualified service personnel.
Key Features
 Easy to install
 100 dB(A) sound output
 High-power comfort LEDs
 High-power LED strobes
 Selectable SCB or SAB mode
 Built-in spirit-level
 Self-supporting lid for ease of
installation
 Revolving fixing holes
 Engineer (quiet maintenance) mode
 Lid and rear tamper detection
 Selectable cut-off timer
 Choice of siren tones
 Impact-resistant polycarbonate
construction
Installation Guide
Additional Features for the
SDR WEXT G3
- -
The SDR-WEXT-G3 provides the following
additional features:
 Remote self-test input
 Built-in microphone for sounder fault
reporting
 Optional battery fault reporting
 Optional monitoring of tamper
conditions on Bell (Trigger) input
 Selectable voltage and termination for
tamper return
Note: When using the SDR-WEXT-G3 with
an i-on/Menvier control unit, make sure that
the control unit has firmware version 4.05 or
later.
Page 1
