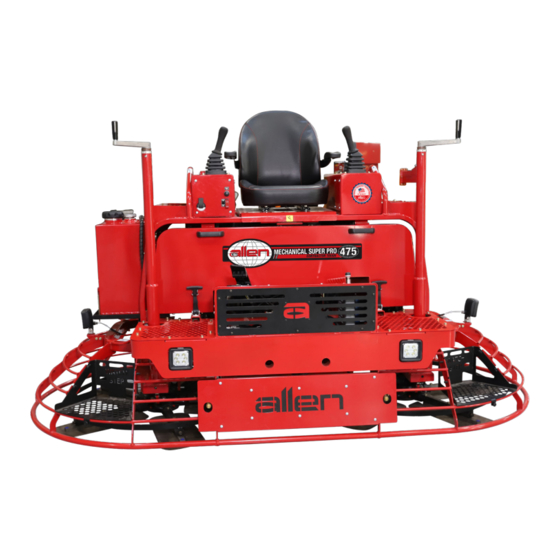

allen MSP475 Parts & Decals Manual

Hide thumbs Also See for MSP475:

Advertisement

Quick Links

Download this manual

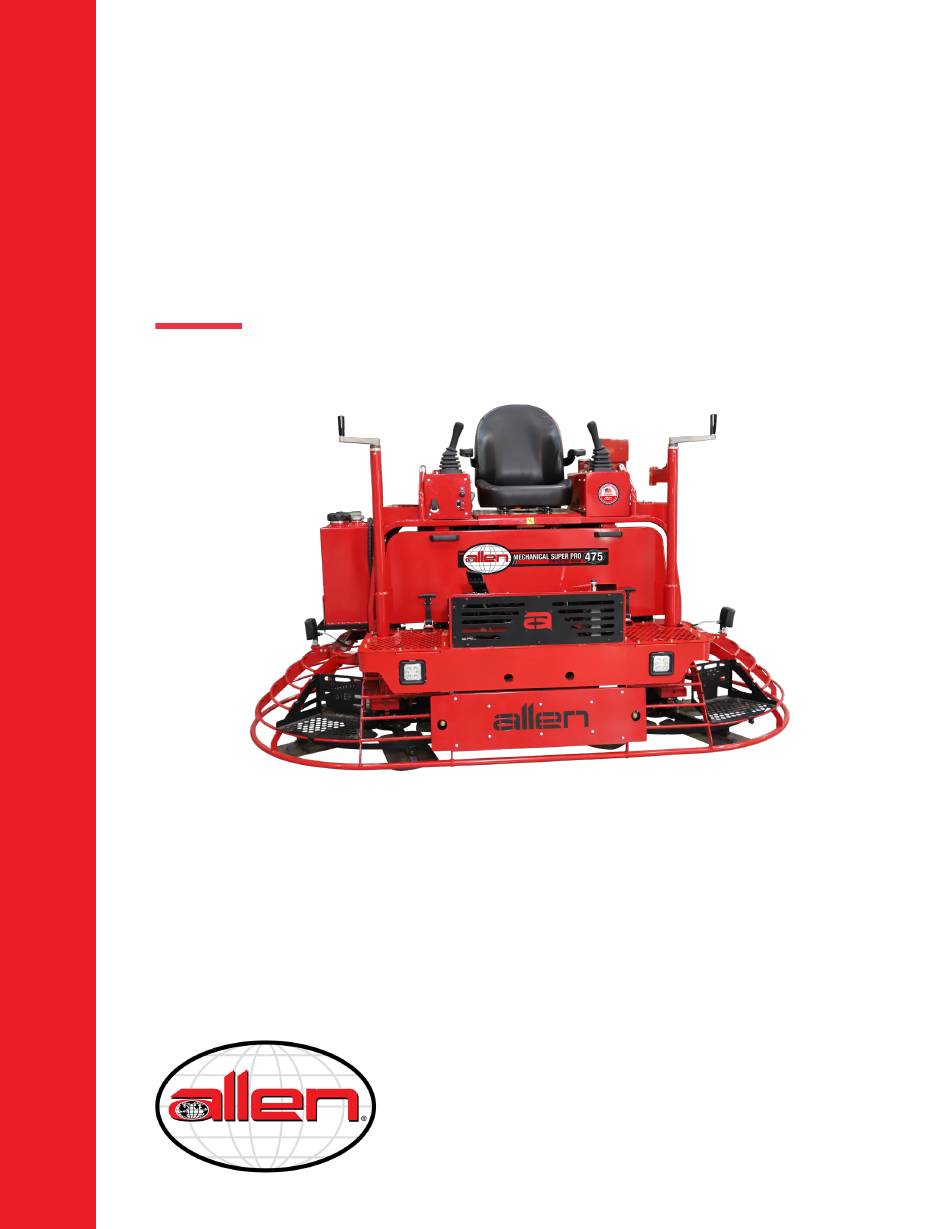

R I D I N G T R O W E L
MSP475
PARTS &
DECALS MANUAL
Man ual Par t #: 06 959 9P | Re vi si on : B
Languag e: E n g lish | O r igin a l In stru cti on s

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSP475 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for allen MSP475

Summary of Contents for allen MSP475

  • Page 1 R I D I N G T R O W E L MSP475 PARTS & DECALS MANUAL Man ual Par t #: 06 959 9P | Re vi si on : B Languag e: E n g lish | O r igin a l In stru cti on s...
  • Page 2 For information regarding the following, please see the “MSP475- Safety & Operator Manual” • Warranty Information • Dealer Information • How to identify the Model / Serial Numbers on the machine • Engine Detail Page 2 069599P...
  • Page 3 MSP475 R HDX605 R iDing iDing Rowel Rowel PARTS & DECAL MANUAL This manual covers the products listed below: Part No. Description 067405 MSP475, 8ft, Kubota 57HP, Gas, Hydraulic Steering 069599P Page 3...
  • Page 4 Table of Contents Page 4 069599P...
  • Page 5 SECTION 1 PARTS SECTION 1 PARTS 069599P Page 5...

  • Page 6: Factory Service Information

    Factory Service Information SECTION 1 PARTS This section contains the illustrated drawings and parts list for help in identifying and/or ordering replacement parts for your machine . Follow the instructions in the front section of this manual “Ordering Parts” when ordering replacement parts to ensure prompt and accurate delivery .

  • Page 7: Replacement Part Procedure

    Replacement Part Procedure SECTION 1 PARTS ALL REFERENCES MADE TO LEFT/RIGHT SIDES IN THIS MANUAL ARE SITTING ON MACHINE (SOM) [i.e. Left / Right are in reference from a sitting position on the machine] We recommend AEC quality replacement parts, available from the AEC Customer Service Department or your nearest AEC Dealer .

  • Page 8: Seat Frame Assembly

    Seat Frame Assembly SECTION 1 PARTS ITEM Page 8 069599P...
  • Page 9 Seat Frame Assembly SECTION 1 PARTS ITEM PART NO. DESCRIPTION 069305 Assembly, Seat Frame, MSP475 032125 Switch, Rocker, Single Pole 046737 Block, Fuse, 8 Pole 041537 Cup Holder 046736 Joystick, Right Hand 064844 (REPLACEMENT) Joystick, Right Hand, Upper Handle ONLY (Not Shown)

  • Page 10: Lower Unit Assembly

    Lower Unit Assembly SECTION 1 PARTS ITEM Page 10 069599P...
  • Page 11 Lower Unit Assembly SECTION 1 PARTS ITEM PART NO. DESCRIPTION 069310 Assembly, Lower Unit, MSP475 012702 Tip, Spray, Brass, 80° x 0 .10 GPM 033735 Pump, for Spray System 037771 Battery, 12 V, 655 CA (Not Shown) 037791 Tank, Overflow, with Bracket...

  • Page 12: Engine Assembly

    Engine Assembly SECTION 1 ITEM PARTS 31 32 37 10 Page 12 069599P...
  • Page 13 Engine Assembly SECTION 1 PARTS ITEM PART NO. DESCRIPTION 069309 Assembly, Engine, MSP475 024820 Key, 1/4” x 4” 046550 Pulley, AK30 x 1/2” Bore with 2 Set Screws 046738 Pump, Hydraulic, Auxiliary 047635 Hub, Ø1” Bore, U-Joint, Center Shaft 047637...
  • Page 14 Rotor Assembly - Left Hand SECTION 1 PARTS Page 14 069599P...
  • Page 15 Rotor Assembly - Left Hand SECTION 1 PARTS ITEM PART NO. DESCRIPTION 066314 Assembly, Rotor, Left Hand 010036 Fastener, Bolt, HHCS, 3/8”-16 x 1”, Grade 8 010070 Fastener, Bolt, HHCS, 1/2”-13 x 1-3/4”, Grade 8 010085 Fastener, Washer, Flat, 1/2”, Grade 8 010090 Fastener, Washer, Lock, 5/16”, Grade 8 010091...
  • Page 16 Rotor Assembly - Right Hand SECTION 1 PARTS Page 16 069599P...
  • Page 17 Rotor Assembly - Right Hand SECTION 1 PARTS ITEM PART NO. DESCRIPTION 066109 Assembly, Rotor, Right Hand 010036 Fastener, Bolt, HHCS, 3/8”-16 x 1”, Grade 8 010070 Fastener, Bolt, HHCS, 1/2”-13 x 1-3/4”, Grade 8 010085 Fastener, Washer, Flat, 1/2”, Grade 8 010090 Fastener, Washer, Lock, 5/16”, Grade 8 010091...
  • Page 18 Lower Rotor Assembly - Left Hand SECTION 1 PARTS ITEM PART # DESCRIPTION 060543 Assembly, Lower Rotor, Left Hand 010024 Fastener, Bolt, HHCS, 5/16”-18 x 2”, Grade 8 010090 Fastener, Washer, Lock, 5/16”, Grade 8 015694 Cap, Grease, W-1, Red, Plastic, Tapered 025091 Fastener, Bolt, Shoulder, 3/8”...
  • Page 19 Lower Rotor Assembly - Right Hand SECTION 1 PARTS ITEM PART # DESCRIPTION 060544 Assembly, Lower Rotor, Right Hand 010024 Fastener, Bolt, HHCS, 5/16”-18 x 2”, Grade 8 010090 Fastener, Washer, Lock, 5/16”, Grade 8 015694 Cap, Grease, W-1, Red, Plastic, Tapered 025091 Fastener, Bolt, Shoulder, 3/8”...
  • Page 20 Spider Assembly - Left Hand SECTION 1 PARTS ITEM PART # DESCRIPTION 067587 Assembly, Spider, Left Hand 010050 Fastener, Nut, Hex, 1/2”-13 015682 Fastener, External Tooth, 3/8” 015683 Fastener, Bolt, Hex Head, 3/8”-16 x 7/8” 015684 Fastener, Nut, Hex, 3/8”-16 015686 Fastener, Bolt, SQHSS, 3/8”-16 x 1”...
  • Page 21 Spider Assembly - Right Hand SECTION 1 PARTS ITEM PART # DESCRIPTION 067588 Assembly, Spider, Right Hand 010050 Fastener, Nut, Hex, 1/2”-13 015682 Fastener, External Tooth, 3/8” 015683 Fastener, Bolt, Hex Head, 3/8”-16 x 7/8” 015684 Fastener, Nut, Hex, 3/8”-16 015686 Fastener, Bolt, SQHSS, 3/8”-16 x 1”...
  • Page 22 Hydraulic Steering Schematic SECTION 1 PARTS Page 22 069599P...
  • Page 23 Hydraulic Component Kit SECTION 1 PARTS Bill of Material - MSP475 Hydraulic System Components ITEM # AEC PART # DESCRIPTION 069747 Kit, Component, Hydraulic, MSP475 064817 Joystick, Single Axis 064818 Joystick, Dual Axis 048661 Cylinder, Steering, Forward/Reverse 048660 Cylinder, Steering, Left/Right...
  • Page 24 Hydraulic Fitting Kit / Hose Kits SECTION 1 PARTS Bill of Material - MSP475 Hydraulic System Fitting Kit ITEM # AEC PART # DESCRIPTION 069748 Kit, Fitting, Hydraulic, MSP475 045922 Fitting, Straight Thread Connector 045915 Fitting, Hydraulic 052786 Fitting, Straight Thread Connector...
  • Page 25 SECTION 2 DECALS SECTION 2 DECALS 069599P Page 25...
  • Page 26 Decals - Front SECTION 2 (Kit #: 069116) DECALS PART #: 056339 PART #: 065897 Allen Globe - Large Lights Decal PART #: 066068 Hand Tool Area PART #: 069118 Front Plate - MSP475 Page 26 069599P...
  • Page 27 Decals - Back SECTION 2 (Kit #: 069116) DECALS PART #: 032377 Pitch Control PART #: 032377 Pitch Control PART #: 065653 PART #: 065653 Lifting Point Lifting Point PART #: 069225 Prop. 65 Warning PART #: 065656 Drop Hazard PART #: 065656 Drop Hazard PART #: 070126...
  • Page 28 Decals - Top SECTION 2 (Kit #: 069116) DECALS PART #: 069119 PART #: 070402 PART #: 069120 PART #: 066067 Left Steering Hydraulic Pressure Warning Hydraulic Fluid Right Steering / Cruise Decal PART #: 068459 PART #: 068459 Tie Down Tie Down PART #: 068459 Tie Down...
  • Page 29 Decals - Left / Right SECTION 2 (Kit #: 069116) DECALS PART #: 069117 Model Decal - Side PART #: 069113 Coolant Warning PART #: 048299 Gearbox Oil PART #: 066103 Grease - Rider PART #: 069117 Model Decal - Side PART #: 065655 Retardant Only PART #: 048299...

  • Page 30: Revision Detail

    Revision Detail MANUAL REVISION DETAIL REVISION # REVISION DATE REVISION REFERENCE # REVISION BY 11/19 Initial Release 02/21 MN 21-003 01/22 Updated Covers Page 30 069599P...
  • Page 31 . No part of this manual may be reproduced or transmitted in any form or by any means, electronics or mechanical, for any purpose, without the express written permission of Allen Engineering Corporation (AEC) . AEC assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual .
  • Page 32 AEC FACTORY & HEADQUARTERS 8 1 9 S . 5 T H S T R E E T P A R A G O U L D , A R K A N S A S 7 2 4 5 0 8 7 0 .
