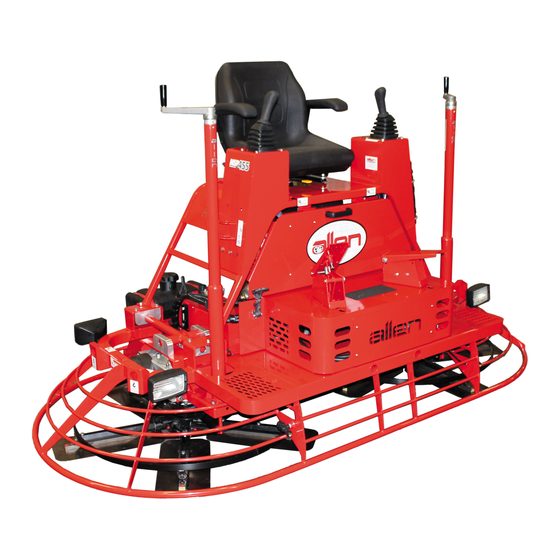

MSP455 RIDING TROWEL
OPERATIONS & PARTS MANUAL
REVISION: 06.2018 | MANUAL PART #: 052793

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP455 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for allen MSP455

Summary of Contents for allen MSP455

  • Page 1 MSP455 RIDING TROWEL OPERATIONS & PARTS MANUAL REVISION: 06.2018 | MANUAL PART #: 052793...
  • Page 2 This manual, or a copy of it, must be kept with the machine at all times. There is a manual storage container located on the machine for your convenience. 052793 - 07/2015...
  • Page 3 Allen Engineering Corporation (AEC). AEC assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
  • Page 4 New Machines and Parts....................One Year Warranty period begins on fi rst day of use by End User. This fi rst day of use is established by the date of a completed Allen Warranty Card or a Bill of Sale to the End User. All warranty is based on the following limited warranty terms and conditions, including the disclaimer of implied warranties and consequential damages.

  • Page 5: Table Of Contents

    Table of Contents Title Page Limited Warranty Table of Contents Information Contained In This Manual Dealer Information Ordering Parts Model Number - Serial Number Codes viii Unit Identifi cation Technical specifi cations Engine Specifi cations Machine Dimensional Specifi cations Section 1 - Safety State Regulations Federal Regulations Safety Information...

  • Page 6: Table Of Contents

    Table of Contents - Continued Title Page Parts Factory Service Information Replacement Part Procedure Seat Frame Assembly Mainframe Assembly 4-12 Throttle Pedal Assembly 4-18 Kill Switch Pedal Assembly 4-20 Pitch Control Assembly 4-22 Right Hand (SOM) Rotor Assembly 4-24 Left Hand (SOM) Rotor Assembly 4-26 Left Gearbox Assembly 4-28...

  • Page 7: Information Contained In This Manual

    Complete any warranty requirements as specifi ed by the engine manufacturer in their instructions found inside the manual box located on the operator’s control panel. Your engine is not manufactured by Allen Engineering Corporation, Inc, and therefore is not covered under Allen Engineering Corporation, Inc warranty.

  • Page 8: Dealer Information

    Dealer Information Your Dealer has Allen Engineering Corporation trained mechanics and original Allen replacement parts. Always contact the Allen Dealer who sold you this machine for Allen Certifi ed repairs and replacement parts. Place Allen Dealer information below for future reference.

  • Page 9: Ordering Parts

    Ordering Parts Section 4.0 contains illustrated parts lists for help in ordering replacement parts for your machine. Fol- low the instructions below when ordering parts to insure prompt and accurate delivery: All orders for service parts - include the serial number for the machine. Shipment will be delayed if this information is not available.

  • Page 10: Model Number - Serial Number Codes

    Model Number - Serial Number Codes Manufacturer’s Codes: When ordering parts or requesting service information, you will always be asked to specify the model and serial numbers of the machine. The legends below specifi cally defi nes each signifi cant character or group of characters of the Model Number and Serial Number codes.

  • Page 11: Unit Identifi Cation

    Unit Identifi cation Unit Identifi cation Plate Location: An identifi cation plate listing the model number and the serial number is attached to each unit and is located on the bottom left hand corner of the operator control panel. See image below for serial number plate number location.

  • Page 12: Technical Specifi Cations

    Power Fuel/Retardant Capacity 6 gal. (22.7 L) The MSP455 is our newest power steering model in our popular MSP Series. The powerful gas engine, Super Heavy-Duty Gearboxes and Spiders provide a great weight-to-horsepower performer for larger contractors. • Adjustable Seat and Arm Rests •...

  • Page 13: Engine Specifi Cations

    Engine Specifi cations 40 HP Kohler MODEL CH1000 Weight 149.0 lbs Engine Displacement (cc) Start Type Electric Engine Type Command Pro V-Twin OHV Rated Power (HP) @ 3600 RPM Torque (ft./lbs.) 61.5 Displacement (cu. in.) Shaft Output Horizontal Shaft Diameter (in.) 1 1/8 Shaft Length (in.) Shaft End Tapped (Diameter (in.)/Threads per inch)
  • Page 14 Dimensional Specifi cations 60-1/2” 101-1/2” 50-1/2” 052793 - 03/2013 Page xii...
  • Page 15 CE Documentation 052793 - 03/2013 Page xiii...
  • Page 16 INTENTIONALLY BLANK 052793 - 03/2013 Page xiv...

  • Page 17: Section 1 - Safety

    SECTION 1 SAFETY Section 1 SAFETY Page 1-1 052793 - 03/2013...

  • Page 18: State Regulations

    State Regulations SECTION 1 Proposition 65 Warning SAFETY Page 1-2 052793 - 03/2013...

  • Page 19: Federal Regulations

    Federal Regulations SECTION 1 Respiratory Hazards SAFETY Page 1-3 052793 - 03/2013...

  • Page 20: Safety Information

    Safety Information SECTION 1 SAFETY Do not operate or service the equipment before reading the entire manual. Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the safety mes- sages and operating instructions could result in injury to yourself and others. SAFETY NOTES The four safety notes shown below will inform you about potential hazards that could injure you or oth- ers.

  • Page 21: Safety Symbols

    Safety Symbols SECTION 1 SAFETY Potential hazards associated with the operation of this equipment will be referenced with hazard symbols which may appear throughout this manual in conjunction with safety notes. Page 1-5 052793 - 03/2013...

  • Page 22: General Safety

    General Safety SECTION 1 SAFETY ● NEVER operate this equipment without proper protective clothing, shatterproof glasses, respiratory protection, hearing protection, steel-toed boots and other protective devices required by the job or city and state regulations. ● ALWAYS avoid wearing jewelry or loose fi tting clothes that may snag on the controls or moving parts as this can cause serious injury.
  • Page 23 General Safety (cont’d) SECTION 1 SAFETY ● ALWAYS know the location of the nearest phone or keep a phone on the job site. Also, know the phone numbers of the nearest ambulance, doctor and fi re department. This information will be invalu- able in the case of an emergency.
  • Page 24 SECTION 1 General Safety (cont’d) SAFETY ● ALWAYS keep the machine in proper running condition. ● Fix damage to machine and replace any broken parts immediately. ● ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel.
  • Page 25 General Safety (cont’d) SECTION 1 SAFETY ● DO NOT start the engine near spilled fuel or combustible fl uids. Fuel is extremely fl ammable and its vapors can cause an explosion if ignited. ● ALWAYS refuel in a well-ventilated area, away from sparks and open fl ames. ●...
  • Page 26 General Safety (cont’d) SECTION 1 SAFETY ● ALWAYS recharge the battery in a well-ventilated environment to avoid the risk of a dangerous con- centration of combustible gases. ● If the battery liquid (dilute sulfuric acid) comes into contact with clothing or skin, rinse skin or clothing immediately with plenty of water. ●...

  • Page 27: Safety Labels And Decals

    Safety Labels and Decals SECTION 1 SAFETY This decal notates special safety equipment that is required to operate this machine. This decal notates the pinch point locations on this machine. This decal notates the lifting points on this machine. This decal indicates that this machine can start fi...
  • Page 28 This decal notates that the thrust bearings must be greased daily. This decal notates that this product was made at the Allen Engineering Corporation manufacturing facilities in Paragould, Arkansas. This decal notates the location of the 12V accessory port.
  • Page 29 Safety Labels and Decals (cont’d) SECTION 1 SAFETY This decal notates that this product is covered under one or more patents. This decal notates that this product uses unleaded gasoline only. This decal notates the model number and series number of this machine. This decal notates the location of where to put hand tools on the machine.
  • Page 30 Safety Labels and Decals (cont’d) SECTION 1 SAFETY This decal notates the location of where the operations and parts manuals are. This decal illustrates Allen Concrete Equipment. Page 1-14 052793 - 03/2013...

  • Page 31: Transportation Safety

    Transportation Safety SECTION 1 SAFETY ● When lifting the riding trowel, all personnel must be clear of the machine. ● DO NOT stand near or under the machine while it is being lifted. Lifting instructions using a hoist: ● Place slings, chains or hooks through each lifting eye on the machine. Use a sling or chains with a minimum length of 2 meters (5 feet) on each leg, connected to a central lifting device.
  • Page 32 SECTION 1 1.4 Transportation Safety (cont’d) SAFETY ● Make sure the hitch and coupling of the towing vehicle are rated equal to, or greater than the trailer “gross vehicle weight rating.” ● ALWAYS inspect the hitch and coupling for wear. Never tow a trailer with defective hitches, couplings, chains, etc.

  • Page 33: Section 2 - Operations

    SECTION 2 OPERATIONS Section 2 OPERATIONS Page 2-1 052793 - 03/2013...

  • Page 34: Pre-Operating Instructions

    Pre-Operating Instructions SECTION 2 OPERATIONS Before operation each day ensure the following: • All guards, side screens and panels are in place. • All safety and information signs are in place and legible. • Engine and hydraulic oil levels are correct. •...

  • Page 35: Starting

    Pre-Operating Instructions - cont’d SECTION 2 OPERATIONS Starting Procedures Before starting riding trowel, refer to fi gures below for location and identifi cation of opera tional and vi- sual controls pertaining to the operation of the riding trowel. Sit down correctly on the riding trowel seat. DO NOT attempt to start the riding trowel without an operator in the seat.

  • Page 36: Operating

    SECTION 2 OPERATIONS To utilize your Allen Engineering MSP455 Rider to its fullest capacity the machine should be driven in the direction the operator is facing. This will fi nish the widest possible area while giving the operator an excellent view of the slab surface about to be troweled. When the machine reaches the end of the slab make a 180 degree turn and repeat the straight line of direction to the other end of the slab.
  • Page 37 Operating Instructions SECTION 2 OPERATIONS With the operator in the seat, show them the functions of the joysticks [B] and [C] and how to start the machine. A hard level concrete slab with water on the surface is an ideal place for an operator to practice with the machine.
  • Page 38 Operating Instructions - cont’d SECTION 2 OPERATIONS Steering The Riding Trowel A slight “feathering motion” forward and backward with the left hand joystick is required to move the machine in a straight path to the left or right while operating the right hand joystick. Position Action Forward...
  • Page 39 Operating Instructions - cont’d SECTION 2 OPERATIONS Pitch Adjustment Different pitch angles are needed as you work the different stages of the concrete. Refer to fi gure be- low. When changing or setting pitch (angle of trowel blades), slow the machine down, set the desired degree of pitch on the left side of the machine and then adjust the right side to match.
  • Page 40 OUR QUALITY POLICY The Allen Engineering Team is fully committed to exceeding customer expectations for the quality of the products and services provided through the continuous improvement process of reducing waste, defects, and variability in everything we do.

  • Page 41: Section 3 - Service

    SECTION 3 SERVICE Section 3 SERVICE Page 3-1 052793 - 03/2013...

  • Page 42: Maintenance Instructions

    Maintenance Instructions SECTION 3 SERVICE Maintenance described in this section represents minimum requirements for continuous satisfactory operation of the machine. Because improperly maintained machines are hazardous, it is extremely important that only qualified mechanics perform maintenance work. It is imperative that only genuine AEC parts are used if replacement is needed as substituted parts in critical areas may place the operator at risk.

  • Page 43: Air Filter Maintenance

    Air Filter Maintenance SECTION 3 SERVICE Pre-Cleaner Maintenance Procedure This engine is equipped with a large capacity, dual element air filter—an oiled, foam pre-cleaner sur- rounds a high density paper element. Loosen knob and remove air cleaner cover. Precleaner 1. Remove precleaner from paper element. 2.
  • Page 44 SECTION 3 SERVICE VISIT US!!! www.alleneng.com LIKE US!!! www.facebook.com/AllenEngineering FOLLOW US!!! @alleneng www.youtube.com/AllenMachinery WATCH US!!! Page 3-4 052793 - 03/2013...

  • Page 45: Engine Oil Maintenance

    Engine Oil Maintenance SECTION 3 SERVICE Engine Oil Level Check • ALWAYS check the engine oil dipstick before using the riding trowel. At a minimum check engine oil once per day. Follow the Maintenance and Lubrication Chart contained herein. • ALWAYS use a good quality engine oil. •...

  • Page 46: Maintenance Schedule

    Maintenance Schedule SECTION 3 SERVICE Maintenance Schedule Item Daily Weekly Monthly Annually 100 Hours Check external hardware ü Check hydraulic oil level ü Check hydraulic fittings and hoses ü Apply grease to thrust bearings ü Check all operational controls ü Tighten all bolts and nuts.

  • Page 47: Filter Replacement

    Filter Replacement SECTION 3 SERVICE AIR CLEANER PAPER ELEMENT PRE CLEANER: 45-083-01-S AIR FILTER: 057991 ENGINE OIL FILTER PART #: 057994 ENGINE FUEL FILTER PART #: 064826 HYDRAULIC OIL FILTER PART #: 061528 Page 3-7 052793 - 03/2013...

  • Page 48: Troubleshooting

    Troubleshooting SECTION 3 SERVICE Possible Corrective Area Malfunction Ref. Cause Measure Battery is discharged - Add battery fluid - Charge the battery - Replace the battery Battery cable is disconnected - Connect battery cable Blown fuse - Replace fuse Bad connection or breakage in the wiring - Contact your AEC dealer Engine does not start, Out of fuel...
  • Page 49 Troubleshooting - cont’d SECTION 3 SERVICE Possible Corrective Area Malfunction Ref. Cause Measure Bad fuel - Change fuel Clogged air cleaner - Clean or replace the air cleaner Black smoke comes out of exhaust Choke is not fully open - Open the choke fully Engine Other (other than above) - Contact your AEC dealer...
  • Page 50 OUR QUALITY POLICY The Allen Engineering Team is fully committed to exceeding customer expectations for the quality of the products and services provided through the continuous improvement process of reducing waste, defects, and variability in everything we do.

  • Page 51: Parts

    SECTION 4 PARTS Section 4 PARTS Page 4-1 052793 - 03/2013...

  • Page 52: Factory Service Information

    Factory Service Information SECTION 4 PARTS This section contains the illustrated drawings and parts list for help in identifying and/or ordering re- placement parts for your machine. Follow the instructions in the front section of this manual “Ordering Parts” when ordering replacement parts to insure prompt and accurate delivery. The FRONT and/or REAR orientations are defi...

  • Page 53: Replacement Part Procedure

    Replacement Parts Procedures SECTION 4 PARTS We recommend AEC quality replacement parts, available from the AEC Customer Service Department or your nearest AEC Dealer. Part numbers are subject to change without notice. Part numbers might be different outside of the United States of America.

  • Page 54: Seat Frame Assembly

    Seat Frame Assembly SECTION 4 Illustration PARTS Page 4-4 052793 - 03/2013...
  • Page 55 049588 FEMALE RECEPTICAL 12VDC 049623 WELDT, JOYSTICK MOUNT PLATE - MSP460 052926 FTG, HYD SMK20-7/16UNF-VE TEST PORT 052932 DECAL, HALF SIZE MSP455 053189 U-BOLT, 3 1/2” X 3/8-16 053211 PROP F/ SEAT FRAME 053447 DECAL, HAND TOOL AREA (SP) Page 4-5...
  • Page 56 SECTION 4 Seat Frame Assembly (cont’d) PARTS Illustration REAR VIEW LEFT STEERING Page 4-6 052793 - 03/2013...
  • Page 57 DECAL, LIGHTS (SP) 053452 DECAL, 12V ACCESSORY (SP) 053454 DECAL, MANUALS (SP) 056338 DECAL AEC 1.5” X 3.25” WHITE/RED 056339 DECAL, 13.35” X 8” ALLEN OVAL 056861 SEAT FRAME WMNT 059540 SCREEN ASSEMBLY, MSP455 061372 SEAT, RIDER 061373 ARM RESTS FOR SEAT...
  • Page 58 SECTION 4 Seat Frame Assembly (cont’d) PARTS Illustration RIGHT STEERING Page 4-8 052793 - 03/2013...
  • Page 59 049588 FEMALE RECEPTICAL 12VDC 049623 WELDT, JOYSTICK MOUNT PLATE - MSP460 052926 FTG, HYD SMK20-7/16UNF-VE TEST PORT 052932 DECAL, HALF SIZE MSP455 053189 U-BOLT, 3 1/2” X 3/8-16 053211 PROP F/ SEAT FRAME 053447 DECAL, HAND TOOL AREA (SP) Page 4-9...
  • Page 60 SECTION 4 Seat Frame Assembly (cont’d) PARTS Illustration Page 4-10 052793 - 03/2013...
  • Page 61 DECAL, LIGHTS (SP) 053452 DECAL, 12V ACCESSORY (SP) 053454 DECAL, MANUALS (SP) 056338 DECAL AEC 1.5” X 3.25” WHITE/RED 056339 DECAL, 13.35” X 8” ALLEN OVAL 056861 SEAT FRAME WMNT 059540 SCREEN ASSEMBLY, MSP455 061372 SEAT, RIDER 061373 ARM RESTS FOR SEAT...

  • Page 62: Mainframe Assembly

    SECTION 4 Mainframe Assembly PARTS Illustration Page 4-12 052793 - 03/2013...
  • Page 63 Mainframe Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010001 FSTN, HHCS 1/4-20 X 1/2 GR 5 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010020 FSTN, HHCS 5/16-18 X 1 010035 FSTN, HHCS 3/8-16 X 3/4 010036 FSTN, HHCS 3/8-16 X 1...
  • Page 64 Mainframe Assembly (cont’d) SECTION 4 Illustration PARTS Page 4-14 052793 - 03/2013...
  • Page 65 BAR, BATTERY HOLD DOWN 052930 COOLER, AIR/OIL 2005K-12S-BP 053200 TANK, 6 GALLON W/ CAP (EPA) 053441 DECAL, LIFTING/CRUSH HAZARD (SP) 053442 DECAL, ALLEN VERTICAL BRUSHED CHROME 053443 DECAL, GASOLINE ONLY (SP) 053445 DECAL, RETARDANT ONLY (SP) 053446 DECAL, MADE IN USA (SP) 053448...
  • Page 66 Mainframe Assembly (cont’d) SECTION 4 Illustration PARTS Page 4-16 052793 - 03/2013...
  • Page 67 Mainframe Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010001 FSTN, HHCS 1/4-20 X 1/2 GR 5 010002 FSTN, HHCS 1/4-20 X 3/4 010019 FSTN, HHCS 5/16-18 X 3/4 GR 5 010020 FSTN, HHCS 5/16-18 X 1 010035 FSTN, HHCS 3/8-16 X 3/4 010036...

  • Page 68: Throttle Pedal Assembly

    SECTION 4 Throttle Pedal Assembly PARTS Illustration Page 4-18 052793 - 03/2013...
  • Page 69 SECTION 4 Throttle Pedal Assembly PARTS Parts List ITEM PART NO. DESCRIPTION 010020 FSTN, HHCS 5/16-18 X 1 010100 FSTN, NUT HEX 5/16-18 010131 PIN, Ø1/16 X 1 ZP STL COTTER 012361 PIN, Ø1/8 X 1 COTTER 024839 ASSY, FOOT SPEED PEDAL 024851 THROTTLE HOUSING WMNT 024981...

  • Page 70: Kill Switch Pedal Assembly

    SECTION 4 Kill Switch Pedal Assembly PARTS Illustration Page 4-20 052793 - 03/2013...
  • Page 71 Kill Switch Pedal Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010002 FSTN, HHCS 1/4-20 X 3/4 010035 FSTN, HHCS 3/8-16 X 3/4 010082 FSTN, FW 5/16 015684 FSTN, NUT HEX JAM 3/8-16 024631 SWITCH, KILL FOR RIDING TROWEL 024840 PLATE, PEDAL FOOT SPEED 024851...

  • Page 72: Pitch Control Assembly

    SECTION 4 Pitch Control Assembly PARTS Illustration Page 4-22 052793 - 03/2013...
  • Page 73 Pitch Control Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 015410 FSTN, RHMS 1/4-20 X 3/8 015747 PIN, ROLL 3/16 X 1-3/8 SPIROL 015768 FSTN, SHCS 1/4-20 X 1/4 HOLO 029812 BUSHING, SLIDE PITCH CONTROL PITCH CONTROL TUBE 032115 KNOB,PITCH CONTROL HANDLE (RT) 038176...

  • Page 74: Right Hand (Som) Rotor Assembly

    Right Hand Rotor Assembly SECTION 4 Illustration PARTS GREASE DAILY!! Page 4-24 052793 - 03/2013...
  • Page 75 Right Hand Rotor Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010024 FSTN, HHCS 5/16-18 X 2 GR 5 010036 FSTN, HHCS 3/8-16 X 1 010090 FSTN, LW 5/16 010091 FSTN, LW 3/8 010095 FSTN, LW 5/8 010513 FITTING, 1/4-28 STR GREASE 012612 FSTN, NUT HEX NYLOCK 5/16-18...

  • Page 76: Left Hand (Som) Rotor Assembly

    SECTION 4 Left Hand Rotor Assembly PARTS Illustration Page 4-26 052793 - 03/2013...
  • Page 77 Left Hand Rotor Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010024 FSTN, HHCS 5/16-18 X 2 GR 5 010036 FSTN, HHCS 3/8-16 X 1 010090 FSTN, LW 5/16 010091 FSTN, LW 3/8 010095 FSTN, LW 5/8 010513 FITTING, 1/4-28 STR GREASE 012612 FSTN, NUT HEX NYLOCK 5/16-18...

  • Page 78: Left Gearbox Assembly

    SECTION 4 Left Hand Gearbox Assembly PARTS Illustration Page 4-28 052793 - 03/2013...
  • Page 79 Left Hand Gearbox Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010038 FSTN, HHCS 3/8-16 X 1-1/2 GR 5 010091 FSTN, LW 3/8 012953 PLUG, 3/4 NPTF BI SQ HD PIPE 013484 FSTN, SCREW RHPMS 10-24 X 1/2 013740...

  • Page 80: Right Gearbox Assembly

    SECTION 4 Right Hand Gearbox Assembly PARTS Illustration Page 4-30 052793 - 03/2013...
  • Page 81 Right Hand Gearbox Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010038 FSTN, HHCS 3/8-16 X 1-1/2 GR 5 010091 FSTN, LW 3/8 012869 FSTN, SHSS 1/4-20 X 3/8 012953 PLUG, 3/4 NPTF BI SQ HD PIPE 013484 FSTN, SCREW RHPMS 10-24 X 1/2...

  • Page 82: Right Hand Spider Assembly

    SECTION 4 Right Hand Spider Assembly PARTS Illustration and Parts List ITEM PART NO. DESCRIPTION 010050 NUT, 1/2-13 JAM HEX 015682 WASHER, 3/8 EXT TOOTH LOCK 015683 BOLT, 3/8-16 X 7/8 DOG PT HEX HD CAP 015684 NUT, 3/8-16 JAM HEX 015686 FSTN, SQHSS 3/8-16 X 1 024755...

  • Page 83: Left Hand Spider Assembly

    Left Hand Spider Assembly SECTION 4 Illustration Parts List PARTS ITEM PART NO. DESCRIPTION 010050 NUT, 1/2-13 JAM HEX 015682 WASHER, 3/8 EXT TOOTH LOCK 015683 BOLT, 3/8-16 X 7/8 DOG PT HEX HD CAP 015684 NUT, 3/8-16 JAM HEX 015686 FSTN, SQHSS 3/8-16 X 1 024755...

  • Page 84: Spray System Assembly

    SECTION 4 Spray System Assembly PARTS Illustration Page 4-34 052793 - 03/2013...
  • Page 85 Spray System Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 012702 TIP, 80°x0.10 GPM BRASS SPRAY 033735 PUMP, SPRAY SYSTEM 040209 FILTER, RETARDANT SPRAY SYSTEM 040387 ELBOW, 3/8 BRASS 90° STREET 040388 FTG, 3/8X1/4 BRASS FM TO FM REDUCER 041604 BODY, NYLON CHECK VALVE NOZ 041606...

  • Page 86: Fuel System Assembly

    SECTION 4 Fuel System Assembly PARTS Illustration Page 4-36 052793 - 03/2013...
  • Page 87 OUR QUALITY POLICY The Allen Engineering Team is fully committed to exceeding customer expectations for the quality of the products and services provided through the continuous improvement process of reducing waste, defects, and variability in everything we do.

  • Page 88: Power Unit And Driveline Assembly

    Power Unit and Driveline Assembly SECTION 4 Illustration PARTS Page 4-38 052793 - 03/2013...
  • Page 89 Power Unit and Driveline Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 010020 FSTN, HHCS 5/16-18 X 1 010035 FSTN, HHCS 3/8-16 X 3/4 010037 FSTN, HHCS 3/8-16 X 1-1/4 GR 5 010082 FSTN, FW 5/16 010083 FSTN, FW 3/8 010084 FSTN, FW 7/16 010089...
  • Page 90 SECTION 4 Power Unit and Driveline Assembly PARTS Illustration (cont’d) Page 4-40 052793 - 03/2013...
  • Page 91 Power Unit and Driveline Assembly SECTION 4 Parts List (cont’d) PARTS ITEM PART NO. DESCRIPTION 051332 BELT, CVT 052927 FTG, HYD F6502-8-8 053136 CLUTCH COVER, MSP445 053223 KEY, 3/16 X 1/4 X 2 053306 ENGINE, KOHLER CH-1000 053308 ENGINE PLATE WMNT CLUTCH 065967 053385...

  • Page 92: Steering Assembly

    SECTION 4 Steering Assembly PARTS Illustration LEFT STEERING FRAME REMOVED FOR CLARITY Page 4-42 052793 - 03/2013...
  • Page 93 FSTN, HHCS 5/8-11 x 3 GR 8 048627 SPACER, STEERING CONNECTION 048660 CYLINDER, 1.5x.625 STEERING 048661 CYLINDER, 1.5x1.25 STEERING 056860 MAIN FRAME, MSP455 056872 MODULE, 20:1 LH ROTOR ASSY 056893 MODULE, 20:1 LH ROTOR ASSY Page 4-43 052793 - 03/2013...
  • Page 94 SECTION 4 Steering Assembly (cont’d) PARTS Illustration RIGHT STEERING FRAME CUT OUT FOR CLARITY Page 4-44 052793 - 03/2013...
  • Page 95 FSTN, HHCS 5/8-11 x 3 GR 8 048627 SPACER, STEERING CONNECTION 048660 CYLINDER, 1.5x.625 STEERING 048661 CYLINDER, 1.5x1.25 STEERING 056860 MAIN FRAME, MSP455 056872 MODULE, 20:1 LH ROTOR ASSY 056893 MODULE, 20:1 LH ROTOR ASSY Page 4-45 052793 - 03/2013...

  • Page 96: Hydraulics Assembly

    Hydraulics Assembly SECTION 4 Illustration PARTS Page 4-46 052793 - 03/2013...
  • Page 97 Hydraulics Assembly SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 001002 OIL, HYDRAULIC 46 (DTE25) 045915 FTG, F6400-6-6-O STR JIC-SAE 045921 FTG, F6400-8-8-O STR JIC-SAE 045922 FTG, F6400-4-6-O STR JIC-SAE 045923 FTG, F6801-4-6-NWO 90° ELB JIC-SAE 045928 FTG, F6400-4-4-O STR JIC-SAE 045948 FITTING, 7574051 MAGNETIC PLUG 046241...
  • Page 98 SECTION 4 Hydraulics Assembly (cont’d) PARTS Illustration LH JOYSTICK RH JOYSTICK Page 4-48 052793 - 03/2013...
  • Page 99 Hydraulics Assembly (cont’d) SECTION 4 Parts List PARTS ITEM PART NO. DESCRIPTION 001002 OIL, HYDRAULIC 46 (DTE25) 045915 FTG, F6400-6-6-O STR JIC-SAE 045921 FTG, F6400-8-8-O STR JIC-SAE 045922 FTG, F6400-4-6-O STR JIC-SAE 045923 FTG, F6801-4-6-NWO 90° ELB JIC-SAE 045928 FTG, F6400-4-4-O STR JIC-SAE 045948 FITTING, 7574051 MAGNETIC PLUG 046241...
  • Page 100 Hydraulic Schematic SECTION 4 Illustration PARTS Page 4-50 052793 - 03/2013...
  • Page 101 034012 SUCTION STRAINER 049978 RETURN LINE FILTER 046241 FILTER GAUGE FI0350 FILLER BREATHER WITH DIP STICK 056932 SIGHT LEVEL INDICATOR 045948 MAGNETIC TANK PLUG 052930 AIR/OIL COOLER 057956 MSP455 FITTING KIT 057955 MSP455 HOSE KIT Page 4-51 052793 - 03/2013...

  • Page 102: Electrical Schematic

    SECTION 4 Electrical Schematics PARTS Illustration LARGE FEMALE SPADE 18-22 GA INS 12 V. 16 GA. RED 51" 16 GA. BLACK 7" LG. 16 GA. RED 7" LG. 18 GA. BLUE 14" LG. 18 GA. RED 45" LG. Page 4-52 052793 - 03/2013...
  • Page 103 Electrical Schematics SECTION 4 Illustration PARTS MALE BULLET RECPT. 14-16 GA AWG FEMALE BULLET CONNECTOR 14-16 GA AWG 7.5 FUSE AND HOLDER COOLER FAN 039162 5/16 EYELET TERMINAL TO STARTER 16 GA. BLACK 51" LG. 037817 3/8 EYELET TERMINAL TO GROUND 1/4"...
  • Page 104 SECTION 4 Electrical Schematics (cont’d) PARTS Illustration Light Relay Spray Spray Light Light Light Ground Page 4-54 052793 - 03/2013...
  • Page 105 Electrical Schematics (cont’d) SECTION 4 Illustration PARTS Light Hour Light Switch Meter Switch Spray Engine Fuse Holder Starter Light Page 4-55 052793 - 03/2013...
  • Page 106 Notes SECTION 4 PARTS Page 4-56 052793 - 03/2013...
  • Page 107 INTENTIONALLY BLANK 052793 - 03/2013...
  • Page 108 YOUR TOTAL SOURCE FOR CONCRETE EQUIPMENT 800-643-0095 or 870-236-7751 FAX: 800-643-0097 or 870-236-3934 P.O. Box 819 Paragould, Arkansas 72451 USA www.alleneng.com 052793 - 03/2013...
