PCB
CARDBOARD
M3.5-M2.5x11.3
STANDOFF

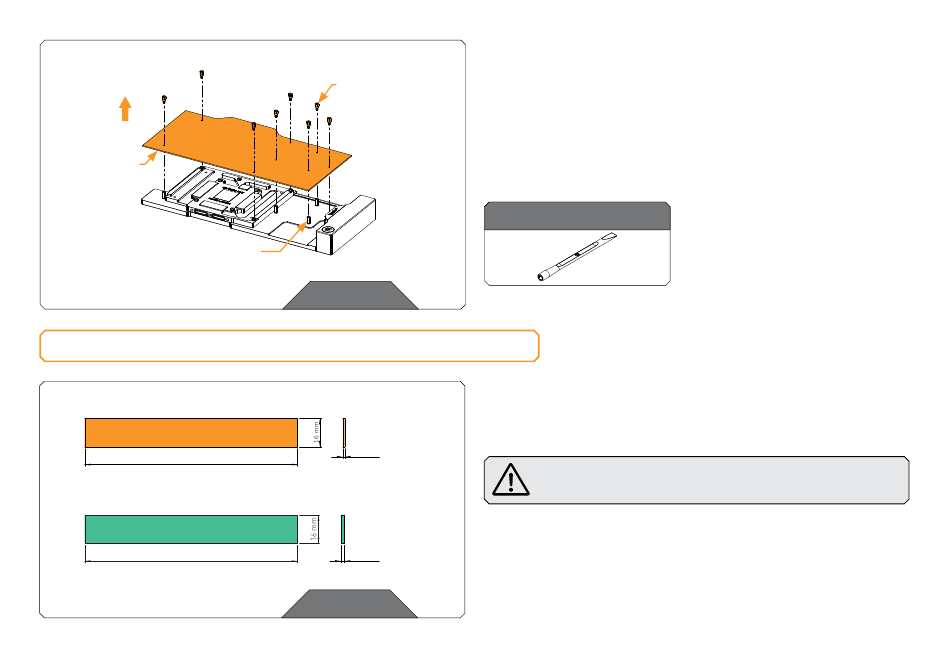

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
Thermal Pad F – 2.0 mm (120 x 16 mm)
120 mm
STEP 3
Unscrew eight (8) M2.5-M3 x 6.6 standoff with the included
tool (EK-Plug out Spludger Tool). Make sure not to unscrew the
M2.5-M3 x 6.6
M3.5-M2.5 x 11.3 standoff! In case the M3.5-M2.5 x 11.3 standoff
STANDOFF
unscrews, carefully tighten it back with the 4 mm wrench.
After removing the standoffs, the PCB cardboard needs to be
removed.
For this step, you will need:
EK-Plug Out Spludger Tool
STEP 3
STEP 1
Your GPU water block comes with thermal pads that have to be cut
into smaller pieces to cover all the VRM components, such as COILs,
MOSFETs, and drivers.
1 mm
Replacement thermal pads:
Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732
Thermal Pad F 2.0 mm – (120 x 16 mm) EAN: 3830046996756
2 mm
STEP 1
- 9 -
You must remove the protective foil from both sides of the
thermal pad before installation.
