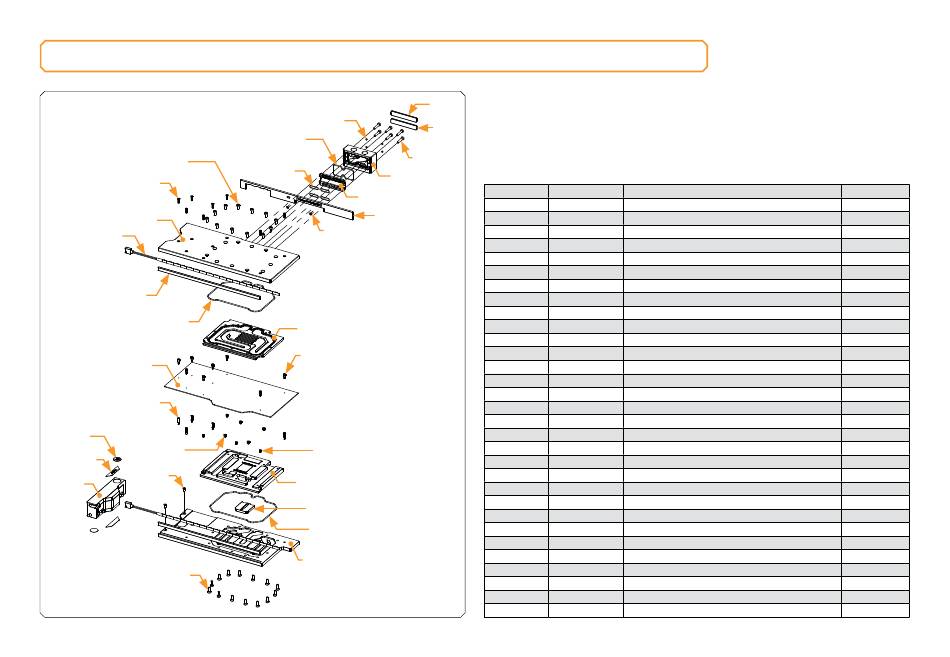

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

28
27
24
4
8
29
31
11
6
10
5
7
15
12
20
19
14
18
21
13
16
17
25
22
23
26
9
1
3
30
2

NICKEL PLEXI

- Dimensions: (LxHxW): 308.5 x 148 x 41 mm
- D-RGB LED count: 30
- D-RGB cable length: 50 cm
- D-RGB connector 3-pin 5V digital LED header
Position EAN Description
1 105139 Coldplate (Nickel)
2 105142 Top plate (Plexi)
3 103962 Plexi insert
4 101556 LED D-RGB strip 500/300 mm
5 103964 Mylar sticker
6 100663 EK - Badge
7 8208 Screw M3x8 7991DIN
8 105148 LED Cover
9 103987 Standoff M3.5-M2.5 x 3 mm
10 103988 Standoff M4-M2.5 x 3 mm
11 103986 Standoff M3.5-M2.5 x 11.3 mm
12 9024 Screw M4 x 10 DIN7984
13 104106 Terminal OR - 14 x 1 mm
14 103942 Terminal Badge
15 104098 Stand out (Acetal)
16 104393 FC Terminal (Acetal)
17 104395 Terminal plate (Nickel)
18 104414 0R 52 x 2 mm
19 105163 Disc magnet 3 x 2
20 104086 Active Backplate Terminal Badge
21 8311 Screw M4 x 20 DIN7984
22 8201 Screw M3 x 10 DIN7991
23 105141 Coldplate ABP (Nickel)
24 105145 ABP Top plate (Plexi)
25 105156 Sideplate (Bl. Elox)
26 104093 Standoff M2.5-M3 x 6.6 mm
27 104105 Screw AX1 M3 x 10
28 9013 Screw M4 x 8 DIN7984
29 5116 OR 142 x 2 mm
30 104916 OR 138 x 2 mm
31 105162 PCB cardboard
- 6 -
Quantity
1
1
1
2
2
2
2
2
4
4
5
14
4
1
1
1
1
1
4
1
6
2
1
1
1
8
8
12
1
1
1
