ekwb Vector2 User Manual page 14

O-RING 14 x 1 mm
M3 x 10 AX1 SCREW
M4 x 20 DIN7984
SCREW
TERMINAL
BADGE
STEP 2

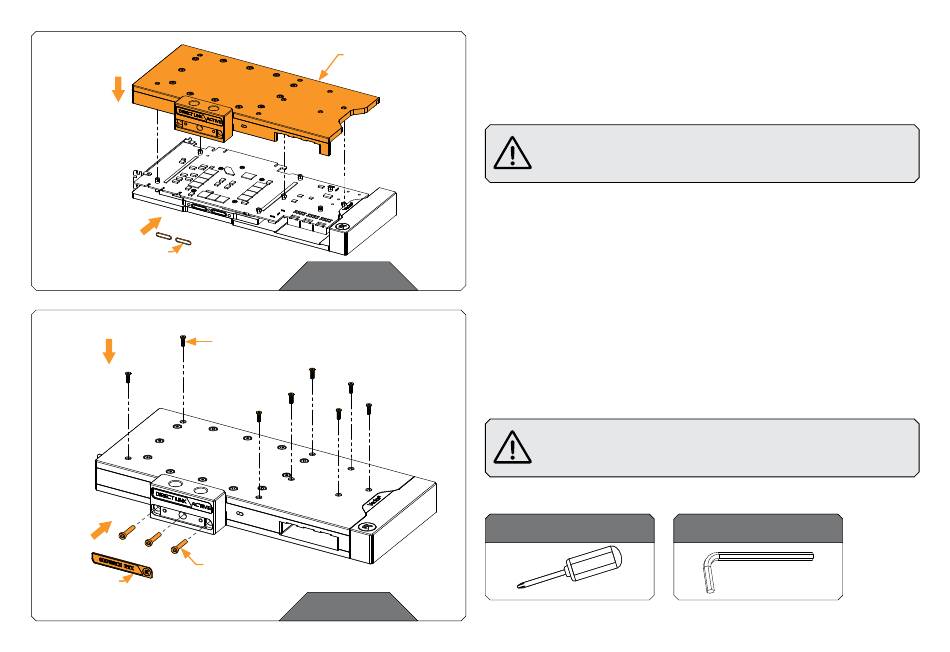

Put two O-rings 14 x 1 into slots on the cold plate. Then carefully
ACTIVE
BACKPLATE place the active backplate on standoffs as shown in the image. While
putting the active backplate on the PCB, make sure the O-rings stay
in the slots.
STEP 2
STEP 3
Place eight (8) M3 x 10 AX1 screws into the water block standoffs and
tighten them using Philips head screwdriver (as shown in the image).
After attaching the AX1 Screws, three (3) terminal screws M4 x 20
DIN7984 need to be attached using Allen Key 2.5mm. The terminal
badge can be reused, after securing the terminal screws.
For this step, you will need:
Phillips Head Screwdriver
STEP 3
- 14 -
Before attaching the Active Backplate, make sure all the
Thermal Pads are placed correctly!
Pay attention not to use too much force when tightening
the active backplate.
Allen Key 2.5mm
